High-Performance, Highly Secure Connectivity for the Small Office
The Cisco RV220W Network Security Firewall lets small offices enjoy secure, reliable, wired and wireless, broadband connectivity - to the Internet, other offices, and employees working remotely. This high-performance wireless router helps improve productivity by providing fast access to the large files and rich media applications your employees use every day.
Designed to provide greater flexibility for highly secure, remote connections, the RV220W supports both IP Security (IPsec) and Secure Sockets Layer (SSL) VPN, often referred to as hybrid VPN. IPsec VPN enables other offices to connect just as if they were physically connected to the primary business network. SSL VPN, which allows secure connections through any web browser, is application-specific, offering a means of extending controlled access to business partners and others, without compromising critical data.
To help further safeguard your network and data, the Cisco RV220W includes business-class security features and optional cloud-based Web filtering. Setup is simple, using a browser-based configuration utility.

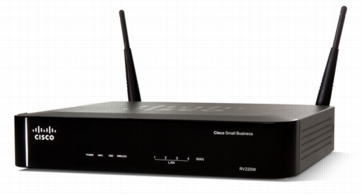

Figure 1. Cisco RV220W Network Security Firewall
Features
High-performance Gigabit Ethernet connections, internally and externally, plus a built-in wireless-N access point, speeds file transfers to improve productivity
4-port 10/100/1000 Mbps Gigabit Ethernet switch
Selectable, dual-band wireless radio helps reduce interference to improve wireless performance
Hybrid VPN (IPsec and SSL VPN) features enable secure access for other offices, employees working remotely, and business partners
Proven firewall, support for separate virtual networks, and strong wireless security help protect the network and business assets
Optional Cisco ProtectLink Web security service delivers cloud-based web threat protection for addedsecurity
Intuitive, browser-based device manager makes installation and use easy
Figure 2 shows the back panel of the Cisco RV220W. Figure 3 shows a typical configuration.

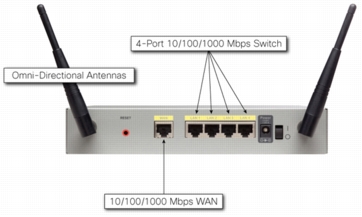

Figure 2. Back Panel of the Cisco RV220W
Figure 3. Typical Configuration
Product Specifications
Table 1 lists the product specifications for the Cisco RV220W.
Table 1. Product Specifications
|
Description
|
Specification
|
|
Standards
|
IEEE 802.11n, 802.11g, 802.11b, 802.11a
802.1X (security authentication)
802.1Q (VLAN)
802.11i (Wi-Fi Protected Access [WPA2] security)
802.11e (wireless quality of service [QoS])
IPv4 (RFC 791), IPv6 (RFC 2460)
Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723)
|
|
Network protocols
|
Dynamic Host Configuration Protocol (DHCP) server, DHCP relay agent
Static IP
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Layer 2 Tunneling Protocol (L2TP)
Dynamic DNS (DDNS) (DynDNS, TZO)
|
|
Routing protocols
|
Static
RIP v1, v2
|
|
NAT protocol
|
Port Address Translation (PAT)
Network Address Port Translation (NAPT), NAT traversal, one-to-one NAT
Session Initiation Protocol Application Layer Gateway (SIP ALG)
|
|
IPv6
|
Dual-stack IPv4 and IPv6
6to4 Tunneling
Stateless address auto-configuration
Multicast Listener Discovery (MLD) for IPv6 (RFC2710)
DHCP v6
Internet Control Message Protocol (ICMP) v6
|
|
Network edge (DMZ)
|
Software configurable on any IP address
|
|
VLAN support
|
Port-based and 802.1q tag-based VLANs, inter-VLAN routing
|
|
Number of VLANs
|
16 active VLANs (1-4096 range)
|
|
Security
|
|
Firewall
|
Stateful packet inspection (SPI) firewall, firewall rules
|
|
Access control
|
MAC-based access control, IP/MAC binding, wireless profiles
|
|
Content filtering
|
Static URL blocking, keyword blocking, approved URL
|
|
Web filtering
|
Optional Cisco ProtectLink Web cloud-based security service
|
|
Secure management
|
HTTPS, username/password, X.509 v3 certificates
|
|
802.1x supplicant
|
Port-based RADIUS authentication (Extensible Authentication Protocol [EAP] MD5, Protected EAP [PEAP])
|
|
Certificates
|
X.509 v3 certificates, certificate upload using PEM format
|
|
VPN
|
|
IPsec
|
25 IPsec site-to-site tunnels
|
|
QuickVPN
|
25 QuickVPN tunnels for remote client access
|
|
SSL VPN
|
5 SSL VPN tunnels
|
|
SSL VPN platforms
|
Microsoft XP/Vista 32 and 64-bit/Windows 7; Mac OSX 10.4+
|
|
PPTP
|
10 PPTP tunnels for remote access
|
|
Encryption
|
Data Encryption Standard (DES), Triple Data Encryption Standard (3DES) and Advanced Encryption Standard (AES) encryption (128, 192, 256-bit)
|
|
Authentication
|
MD5/SHA1 authentication
|
|
VPN pass-through
|
PPTP, L2TP, IPsec
|
|
Advanced VPN
|
Dead Peer Detection (DPD), IPsec NAT traversal
|
|
Quality of Service
|
|
Prioritization types
|
802.1p port-based priority on LAN port, application-based priority on WAN port
|
|
Queues
|
4 queues
|
|
Performance
|
|
NAT throughput
|
800 Mbps
|
|
Concurrent sessions
|
12000
|
|
IPsec VPN throughput
(3DES / AES)
|
90 Mbps
|
|
SSL VPN throughput
|
25 Mbps
|
|
Configuration
|
|
Web user interface
|
Simple browser-based device manager (HTTP/HTTPS)
|
|
Management
|
|
Management protocols
|
Web browser, Simple Network Management Protocol (SNMP) version 1, 2c, 3, Bonjour, Universal Plug and Play (UPnP), Simple Network Time Protocol (SNTP)
|
|
Event logging
|
Local, syslog, email alerts, packet captures
|
|
Upgradability
|
Firmware upgradable through web browser, imported/exported configuration in text format
|
Wireless LAN Specification
Table 2 lists the wireless specifications for the Cisco RV220W.
Table 2. Wireless Specifications
|
Description
|
Specification
|
|
Product Dimensions (W x H x D)
|
8.66" x 1.54" x 6.69"
220 mm x 39 mm x 170 mm
|
|
Ports
|
1 x 10/100/1000 Mbps Gigabit Ethernet WAN
4 x 10/100/1000 Mbps Gigabit Ethernet LAN
Power
|
|
Spec/modulation
|
802.11 b/g/a/n
Binary phase-shift keying (BPSK)
Quadrature phase-shift keying (QPSK),
Quadrature amplitude modulation (QAM): 16-QAM, 64-QAM
|
|
Channels
|
FCC:
2.4 GHz: channels 1-11
5.15 - 5.25GHz: channels 36, 40, 44, 48
5.725 - 5.825 GHz: channels 149, 153, 157, 161, 165
ETSI:
2.4 GHz: channels 1-13
5.15 - 5.25 GHz: Dynamic Frequency Selection (DFS), channels 36, 40, 44, 48
5.25 - 5.35 GHz: DFS, channels 52, 56, 60, 64
5.47 - 5.725 GHz: DFS, channels 100, 104, 108, 112, 116, 132, 136, 140
|
|
Channel selection
|
Auto channel selection
|
|
External antennas
|
Two detachable antennae with reverse SMA connectors
|
|
Internal antenna
|
One fixed internal antenna
|
|
Antenna gain in dBi
|
Two omni-directional antennae with maximum 2 dBi gain
One directional internal antenna with maximum 6.6 dBi gain
|
|
Transmit power
|
802.11b: 17.5 dBm +/- 1.5 dBm
802.11g: 17.5 dBm +/- 1.5 dBm
802.11a: 13.5 dBm +/- 1.5 dBm
802.11n: 13.5 dBm +/- 1.5 dBm
|
|
Receiver sensitivity
|
802.11b: -90 dBm @11 Mbps
802.11g: -74 dBm @54 Mbps
802.11a: -71 dBm @54 Mbps
802.11n: -66 dBm @270 Mbps (2.4 GHz)
802.11n: -63 dBm @270 Mbps (5 GHz)
|
|
Active WLAN clients
|
Up to 64 clients
|
|
Multiple SSIDs
|
Supports multiple SSIDs, up to 4 separate virtual networks with separate wireless profiles
|
|
Wireless VLAN map
|
Supports SSID to VLAN mapping with wireless client isolation
|
|
WMM
|
Wireless multimedia with QoS (802.1e)
|
|
U-APSD
|
Wi-Fi Multimedia (WMM) power save
|
|
Wireless Distribution System (WDS)
|
Allows wireless signals to be repeated by up to 4 compatible repeaters
|
System Specifications
Table 3 lists the system specifications for the Cisco RV220W.
Table 3. System Specifications
|
Description
|
Specification
|
|
Power
|
12V 1A
|
|
Certification
|
FCC class B, IC
|
|
Operating temperature
|
0 to 40C (32 to 104F)
|
|
Storage temperature
|
-20 to 70C (-4 to 158F)
|
|
Operating humidity
|
10% to 85% noncondensing
|
|
Storage humidity
|
5% to 90% noncondensing
|
