Techbuy Hardware Port Multiplier Bundle
  • 1x Addonics SATA RAID Controller 2-Port
  • 1x Addonics Hardware Port Multiplier 5-Port
  • 1x Addonics 5-Bay HDD Module
  • Allows Extra 5xHotswap HDD

IMG 1 of 1
No Longer Available
Part Number:
175399
(?) Brand:
Techbuy Web Site
Manuf No:
HPMBundle5
Shipping Weight:
6 KG (Includes product packaging)
Estimate Shipping
Date Added:
28/7/2011
Details Files Images & Video
All stock codes associated to this product
HPMBundle5
  • By Connecting the Source Port of the Hardware Port Multiplier(AD5HPMSXA) to the Addonics SATA RAID Controller (AD2SA3GPX1) this enables the Hardware Port Multiplier to be set to Individual Drive Mode.
    • Allows the Hardware Port Multiplier to be used with Individual drives rather than RAID.

This bundle is comprised of the following products:

1741831 x Addonics AESN5DA35 5-Bay SATA/SAS Hot Swap Rack Module
Convert 3x5.25" Drive Bays to 5x Hot Swap 3.5" SATA/SAS HDD Bays
1707331 x Addonics 5-Port Hardware Port Multiplier - Turn 1xSATA into 5xSATA-II - System Version
RAID 0,1,3,5,10,JBOD
1277421 x Addonics AD2SA3GPX1 SATA RAID Controller - 2 Ports SATA-II - PCI-Ex1
RAID 0,1,1+0,5,JBOD
Port Multiplier (PM) Support
Addonics AESN5DA35 5-Bay SATA/SAS Hot Swap Rack ModuleConvert 3x5.25" Drive Bays to 5x Hot Swap 3.5" SATA/SAS HDD Bays

Addonics AESN5DA35 5-Bay SATA/SAS Hot Swap Rack Module
  • Convert 3x5.25" Drive Bays to 5x Hot Swap 3.5" SATA/SAS HDD Bays

back to top

Product Description:

The Snap-In Disk Array is the Addonics latest removable drive system that enable installing as many as five 3.5" hard drives into three 5.25" drive bays on any Desktop PC, Tower or 4U Rack mount system. The hard drive can be added into the Snap-In Disk Array by simply sliding the hard drive into one of the drives slots and closing the drive door, just like using a VHS cassette. To remove the hard drive, simply open the drive door and the hard drive will automatically be ejected.

The Snap-In Disk Array also increases the number of hard drives that can be installed into many systems. or storage chassis such as the Addonics family of Storage Tower. Together with Addonics Port Multiplier, you can create a powerful RAID storage with large storage capacity, drive redundancy for reliability and high performance in a compact 3-bay drive enclosure like the Addonics Storage Tower III.

Product features

  • Install up to five 3.5 SATA or SAS hard drives into three 5 1/4" drive bay stack
  • Drive is added and removed directly from the Disk Array without any tool
  • Point to point connection
  • High throughput up to 600 MB/sec with SATA 3.0 or SAS 2.0 drive
  • Full Serial ATA 1.0, 2.0, 3.0, SAS 1.0 and 2.0 compliant
  • Sturdy steel metal construction
  • Optional 2.5 drive adapter (model: AE25SN35SA)
  • Short circuit protection
  • Dual high CFM and low noise cooling fans
  • Use as an external RAID system (require optional external power adapters)
  • Hot swap support when connects to SATA port with this feature
  • Power and drive activity LED for each hard drive slot
*While the Snap-In Disk Array is capable of fitting into three 5 1/4" drive bay stack on a desktop tower, seating from the metal bracket may cause possible obstruction for insertion of the Snap-In Disk Array Click here for more information.

(1) Serial ATA hot swap feature works only with controllers basing on Silicon Image chip set from our inhouse testing. Other controllers that are not Silicon Image based may not support hot swap. You may consider adding one of the Addonics Serial ATA host controllers to your systems to ensure the hot swap capability. New controllers from Intel and other suppliers may finally support this feature. Please verify with your controller manufacturer if you need to have hot swap in your application. Hot swap is supported in Windows 2000 and XP only. On other OS, drive can be removed without crashing system. But replacing with a different drive can result in crashing the OS.



Specification

Interface

SATA/SAS
Construction material
 Steel
Hard drive type
 SATA/SAS, SATA/SAS II or SATA/SAS III
Number of drives
 Maximum five 3.5 SATA hard drives or
five 2.5 SATA hard drives using optional 2.5 - 3.5 drive adapter (model: AE25SN25SA)

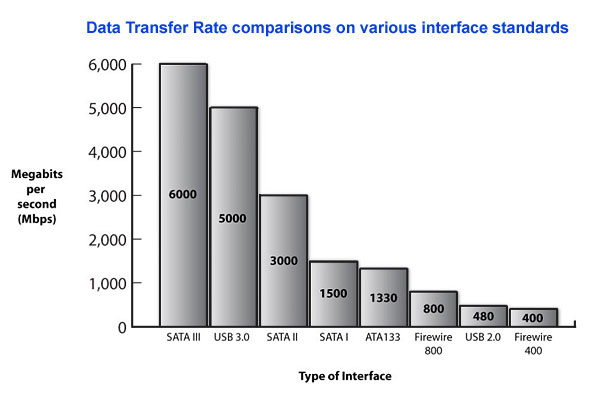

MAX Data Transfer Rate
  • 150 Mbytes/sec when connect to SATA port
  • 300 Mbytes/sec when connect to SATA II / SAS port
  • 600 Mbytes/sec when connect to SATA III / SAS II port
Power connection
 Two 4-pin Molex power connectors
Serial ATA connection
5 SATA and SAS connectors
LED's
  • for Power to the main unit
  • for Power and drive activity to each hard drive
Lock
For each hard drive slot
Hard Drive connection
Point to point, no cable required for installing hard drive into drive drawer
Cooling system
Two 60 mm cooling fans
Weight (with no hard drive)
4.24 lb (1.92 Kg)
Dimensions (L x W x H)
 7.5 x 5.73 x 5 inch (190.5 x 145.6 x127 mm)
Operating temperature and
humidity
0 60 C , 0 95% RH (non condensing)
Storage temperature and
humidity
 -20 75 C, 0 - 90% RH
Warranty
 One Year

All specifications are subject to change without notice

System requirement

  • PC/AT or Compatible System
  • SATA or SAS port
  • Three free 5 1/4" drive bays in one stack
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
Addonics 5-Port Hardware Port Multiplier - Turn 1xSATA into 5xSATA-II - System VersionRAID 0,1,3,5,10,JBOD

Addonics 5-Port Hardware Port Multiplier - Turn 1xSATA into 5xSATA-II - System Version
  • RAID 0,1,3,5,10,JBOD

back to top

Product Description:

5 Port SATA HPM-XA System Version
Package content: 5 Port HPM-XA on standard height PCI bracket, low profile PCI bracket, Y power cable, Driver CD with configuration and monitor software utility, User Guide

This new 5-Port HPM XA is a feature rich Hardware Port Multiplier that enables connecting up to 5 SATA drives to any SATA port. It is a perfect solution for attaching several hard drives as individual drive or as a RAID volume with redundancy to a Desktop or Server. This HPM can also be used to connect 5 SATA optical drives such as DVD-RRW or Blu-Ray drives to do simultaneous data copying. Configuration can be set via a set of onboard dip switches or the included software utility under Windows OS. Drive and the HPM status can be visually monitored by attaching LEDs to the onboard LED signal pin headers or via the bundled monitoring software. Any drive failure or RAID error can be notified via audible alert from the on board buzzer and email to an SMTP account.

The 5-Port HPM XA comes in choice with the system version or the enclosure version. The system version enables multiple hard drives inside a system to be connected together to form a RAID volume or use as individual drives. The enclosure version fits perfectly into the Addonics family of Storage Tower, Storage Rack and many standard multi-bay enclosures with standard SCSI-1 connector cut out. The 5 hard drives inside the drive enclosure, once configurated, can be attached to any computer via high speed eSATA connection or USB 3.0 by attaching the optional Addonics USB 3.0 - eSATA adapter .

5-Port HPM-XA System Version



HPM diagram
Product Features
  • Choice of system model and enclosure model
    • system model - Connect up to 5 SATA hard drives to one SATA port inside any system
    • enclosure model - connect up to 5 SATA hard drives or optical drives in external enclosure to any system via any eSATA port (or USB 3.0 / 2.0 port using optional USB 3.0 - eSATAp adapter)
  • RAID configuration is programmed using onboard jumpers for simple deployment. View detailed jumper configuration diagram
  • Integrated hardware RAID controller to maximize performance
  • Software included for RAID management and advanced RAID configuration
  • Compatible with Compact Flash or Micro Drive using Addonics SATA CF adapters (ADSAHDCF or ADSACF)
  • Compatible with SATA optical drives - support simultaneous DVD writing*
  • RAID volume can be used as a boot drive or as additional storage
  • Multiple units can be daisy chained
  • System version mounts in any standard height or low profile PCI slot
  • Enclosure version designed to fit Addonics Storage Tower, Mini Storage Tower, Storage Rack or multi-bay drive enclosure with SCSI-1 (Centronic 50-pin) back panel
  • Supports RAID0 (Striping), RAID1 (Mirroring), RAID3, RAID5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using built-in hardware RAID.
  • Supports individual drive mode*
  • Clone mode - clone's action is similar to RAID 1, except all the hard drives connected will be mirrored. Clone mode is especially useful when users would like to copy data form a hard drive to several hard drives at the same time.
  • Supports hot swap when attached to controllers that support this feature.
  • Drive activity LED and Error LED for Host and 5 SATA devices
  • OS Support: Windows 2000, XP, 2003, Vista, Mac OS X and above, Linux kernel 2.6 and above

* Independent drive configuration and optical drive are supported only when connecting to controllers with Silicon Image Sil3124, Sil3132 chip set or controllers that are PM compatible. Simultaneous DVD writing was tested using the Nero Burning Rom

Specifications

  • 5 internal SATA ports for SATA / SATA II storage devices
  • Drive activity LED and Error LED for Host port and 5 SATA devices
  • Auto-negotiation support for 1.5Gbps and 3.0Gbps SATA
  • Compliant with SATA I/II specification
  • Support SATA optical devices
  • Chipset : JMicron JMB393
  • Support 48-bit LBA addressing
  • Supports Hot-swapping
  • Supports NCQ (Native Command Queuing)
  • OS support: Windows 2000, XP, 2003, Vista, Mac OS X and above, Linux kernel 2.4 and above, Mac OS X 10.4.x
  • Dimensions: (W x D x H) - 3.4 x 2.2 x .9 in. (85mm x 55mm x 23mm)
  • Weight: 48g
  • Operating temperature range: 0 C to +70 C
  • Operating humidity range: 5% to 90%
  • Storage temperature range: -40 C to +85 C
  • Storage humidity range: 5% - 95% (non condensing)
  • 1 year warranty

Note: specification subject to change without notice

Addonics AD2SA3GPX1 SATA RAID Controller - 2 Ports SATA-II - PCI-Ex1 RAID 0,1,1+0,5,JBODPort Multiplier (PM) Support

Addonics AD2SA3GPX1 SATA RAID Controller - 2 Ports SATA-II - PCI-Ex1
  • RAID 0,1,1+0,5,JBOD
  • Port Multiplier (PM) Support

back to top

Product Description:

This new family of PCI Express controllers offer the latest 3G/sec SATA performance and configuration flexibility at an amazingly affordable price. Comes with choice of 2 internal SATA II ports or 2 eSATA II ports for external SATA connection. both controllers can also be installed in low profile PCs using the bundled low profile bracket. The two ports can be configured as individual ports, as RAID 1, 0, 0+1, RAID 5 or JBOD. Both controllers are also Port Multiplier compatible, thus offering potential expansion capability and new storage solutions

Product Features
  • Choice of controller with 2 internal SATA II ports or 2 eSATA ports
  • Install into both standard height or low profile system.
  • Install in PCI-Express BUS
  • Fully compliant with SATA II and SATA 1.0 standard
  • Maximum 3Gbits/sec per port
  • Support NCQ commands
  • Compatibility with Port Multiplier
  • Silicon Image chip set SiI 3132
  • Use as a non-RAID or RAID controller
    Built-in RAID 0, RAID 1, RAID 1+0, RAID5 and JBOD support
    (illustration on the left is the bundled RAID utility for Windows OS. RAID5 and JBOD requires Port Multiplier)
  • Upgradeable firmware
  • Hot swap support - drive can be removed and added without system shut down or restart *
  • eSATA connector for more secure connection, reliability and supports up to 2 meters cable length
  • Compatible with drivers for Windows 2000 , XP, and 2003 Server, Vista, Linux (2.4 kernel and higher)

Specifications

  • 48 bits LBA, support HDD partition larger than 137GB
  • Supports 1-lane 2.5Gbps PCI Express
  • Hot-plug capability
  • SATA II transfer rate of 3.0Gbps
  • Fully compliant with Serial ATA 1.0 specifications
  • Supports two independent Serial ATA channels
  • Independent Link, Transport, and data FIFO
  • Independent command fetch, scatter/gather, and command execution
  • Supports Legacy Command Queuing (LCQ)
  • Supports Native Command Queuing (NCQ)
  • Supports Non-zero offsets NCQ
  • Supports Out of order data delivery NCQ
  • Supports FIS-based switching with Port Multipliers
  • 31 Commands and Scatter/Gather Tables per Port
  • Two Pin headers on board for LED connection
  • Temperature: Operating 0 to 70 degree C.
  • Storage: -25 to 90 degree C.
  • Humidity: Operating 20% to 80%
  • Non Operating 15% to 90%
  • RAID 0, 1, 0 + 1, RAID 5 and JBOD firmware on board
    To install OS onto a single hard drive (not in a RAID set), it must be connected to the 1st port (the lowest port on the PCI bracket). The controller BIOS must be set to 'CONCATENATED'
  • Completely with drivers for Windows 2000 , XP, and 2003 Server, Vista
  • RoHS Compliant
