DDVM-6600N+T441-1TB | DViCo 1TB PVR M-6640M Duo Media Player - Full 1080p Output, H.264, Dual Tuner, DVB-T HD, HDMI, USB, RJ-45, Built-In WiFi-n, Card Reader





The future of PVR arrives here



Unrivaled Dual Tuner PVR with Multimedia Player





M6640N is a portrait of future PVR with multimedia playback capabilities. For a PVR, it has dual tuners which enable you recording two RF channels simultaneously and it supports the time-shifting which can pause the live broadcasting. You can upgrade your HDD capacity any time with just simple insertion. In addition, M6640N has an unrivaled multimedia playback capability including playback 1080p full-HD movies, high-quality audios, high resolution photos with thumbnails and lossless high-resolution music files. It also includes Wi-Fi 11n module which enables you connect your local network or internet, so you can playback all the contents on You-tube and other internet media sites, as well as your remote PC in another room.



With its dual digital tuner, M6640N is able to record two different digital HD broadcastings simultaneously and to pause live broadcasting (Time-shifting). And it provides Electronic Program Guide (EPG), so you can simply select two channels to be recorded on the EPG.





By supporting superb H264 video compression & MKV container format, you can enjoy full HD videos. On top of this, oncoming HD media backup files as well as DVD backup files are supported. It functions as a universal jukebox that allows you to enjoy videos and music of ultimate quality through full HD picture and High-Quality audio output.
It can also playback todays high-res photos and lossless music files.





HDMI 1.3 support allows you to set up and use video and audio signals conveniently with just one cable. Wired/wireless network connection is easily enabled with uPnP support, and you can easily play various multimedia files on the network. 6640N has built-in Wi-Fi 11n module, so you can enjoy all the contents on your PC or NAS storage with wireless connection.







Dual Recording and Time-shifting

Dual tuner HD PVR



M6640N is able to record one channel while watching the other or record two different RF channels simultaneously. With the Time-shifting, its always possible to delay watching the live broadcastings. Just pause it and play again. And the TVIX PVR saves recorded programs in HDD automatically and generates the file name in both sequence of date and alphabet.



Recording weekly program and EPG

EPG and scheduled recording

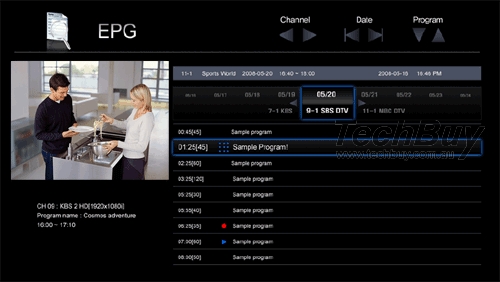

M6640N provides Electronic Program Guide (EPG) that helps users easily select what they watch or record. And for weekly programs, just set the Time and Cycle to record your favorite program periodically. TVIX will automatically turns on by itself and starts to record periodically.





Upgrade, backup and editing freely

HDD upgrade and PC connection



Sick and tired of erasing the old recorded files? You can upgrade HDD of your M6640N to any capacity anytime you want. Just grab a new HDD and exchange it by simple insertion. You can also transfer the recorded streams to your PC and start to edit them, since M6640N can be connected to your PC freely by USB or by network.



Best Full HD video experience with least capacity

H.264 and MKV



H.264 is a highly efficient high-definition video compression technology used most frequently lately, and it is used for HD broadcasts, HD videos, HD DVDs and Blu-rays. If you convert a video file into this format, the size of the file gets reduced while the high-definition quality is maintained, which allows you to obtain an overwhelming video quality with the least storage capacity. MKV is a format that can store this high video quality, and its an oncoming generation format that is compatible with high-definition picture and sound. TVIX nicely plays Full HD videos that are saved as H.264 in MKV.



Wired connection for Full HD and wireless for MKV

Wired & Wi-Fi network support



Through the network connection (wired/ wireless), you can appreciate all contents stored in your PC HDD without transferring to your TVIX HDD. M6640N can play high bit rated HD movie clips (up to 60mbps) without jittering in case of wired connection.
And when using the 802.11n Wi-Fi module, it plays most general HD movies (less than 18mbps)



A single cable for newest digital video and High-Quality audio

HDMI 1.3a



M6640N supports HDMI 1.3 output compatible with most of newest HDTVs and receivers on the market. With a single HDMI cable, you can watch 1080P Full HD digital video and listen to the High-Quality audio.

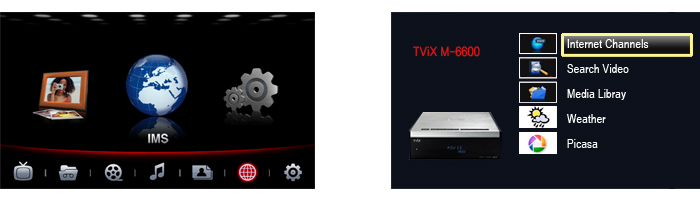

Internet video clips, pictures and weather search

IMS: Internet Media Service



YouTube, Picasa, Internet News and Weather, your PC is not only one to enjoy those kinds of internet media service. Now M6640N lets you make it on bigger and better screen.





Movie playback through network

UPnP, NAS: Network Attached Storage



Forget about configuration of your IP address and just go to the network through UPnP. Shared files including Full HD files on the UPnP can play without problems by wired or wireless connection. It also supports famous network protocols such as NFS, SAMBA and FTP, so you can connect your network whatever protocol you want.
As SAMBA server service is available, M6640N is also able to be used as a network storage device for those who are accustomed to Windows Search. And its possible to set a shared folder for users on the same network, and you can use it like a external hard disk drive of your PC.

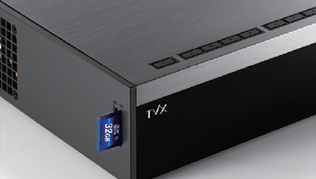

Playback of lossless audio files FLAC, Wave Pack 24bit/ 96Khz M6640N supports lossless audio files up to 24bit/ 96Khz. As the TVIX plays these formats directly, you can appreciate high quality of audio sound close to the original one.	File copy and paste without PC Card reader installed You dont need to manage all sorts of TVIX HDD files by your computer. M6640N allows you to copy, delete and move the files through external USB or the network. In addition, through the card reader installed on a side of the TVIX, you can play, copy, move and delete what you took by your digital camera and camcorder.

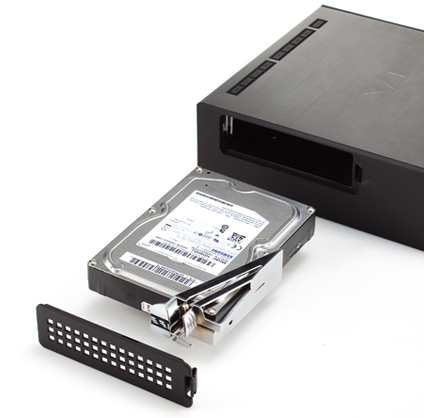

HDD Exchange cannot be easier than this Innovative HDD exchange The new HDD bracket was innovatively designed to switch one to another in the shortest time and very convenient. Unlike the previous TVIX HDD bracket, you can assemble it to your HDD with a single screw and dont need to connect the power cable and the date cable any more. Simply open the HDD cover and push it into the TVIX, that all.   Delicate High-Quality UI High-definition user interface M-6640N adapts high resolution (720p) user interface to maximize the usability and quality of subtitle. It also supports true-type vector font which maintains the quality of subtitle even when the font size is changed.



Very cool, very quiet

Low noise, low heat and low power consumption



In order NOT to disturb your time with TVIX, M-6640 adapts aluminum top case, 60mm ball-bearing fan and internal temperature sensing mechanism. Thanks to the hardware design, working noise is almost eliminated and the working temperature is very stable. In addition, its also designed for low power consumption in stand-by mode (less than 0.5W).





RTD 1283DD+ 400MHz processor





Main: 256MB DDR SDRAM / Flash: 128MB





up to 1920 x 1080P

Dual tuner
DVB-T High Definition



MKV, AVI, VOB
ASF, WMV
MPEG1/2/4 Elementary
MPEG1/2 PS: M2P, MPG
MPEG2 Transport Stream: TS, TP, TRP, M2TS, MTS, MOD, TOD
ISO, IFO
MOV(H.264), MP4
.MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2ts, .mov, .flv, .rm, .rmvb, .asf, .mts, .mpeg





XVID SD/HD
MPEG 1
MPEG-2 (MP@HL)
MPEG-4.2 (ASP@L5, 720p, 1-point GMC)
WMV9 (MP@HL),
H.264 (BP@L3, [email protected])
VC-1 (MP@HL, AP@L3)

RealVideo 8/9/10

FLV(H.263)



AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA),
PCM, AC3, FLAC (Audio track in MKV)
WAV(DTS), WAVPACK, WMA (Lossless not supported)
Ogg (Audio track in MKV except for 44.1 KHz)



Dolby Digital
DTS Down Maxing
WMA, WMA Pro
FLAC, AAC, MP1, MP2, MP3, LPCM, Vorbis

 DTS, Dolby Digital, Dolby Digital Plus



JPG, JPEG (Progressive JPEG not supported), BMP, PNG(Interlace not supported), GIF, TIF



English, Traditional Chinese, Japanese, Spanish, French, Germany, Italian, Korean, Nederlands, Russian, Rumanian, Czech, Arabic, Vietnamese, Bulgarian, Hebrew, Swedish, Greek, Turkish, Polish, Portuguese, Croatian, Thai



smi, smil, sub/idx, srt, .ssa, .ass



HDMI 1.3a (Video 24 bit), Composite
Digital: Coaxial, Optical
Analog: Stereo



3.5" SATA HDD only (NTFS, FAT32, SATA , HDD)



USB .0 Host 2 Ports (USB1/ USB2: 5V , 500 mA max), USB 2.0 Target 1 Port
Memory Card Reader: SD, SDHC, Memory Stick, Memory Stick Pro Duo



 10/100 Ethernet
Wi-Fi 802.11n



UPnP, SAMBA Client, NFS (with Net-Share)
SAMBA server , FTP





Internal temperature sensing mechanism, 60mm low noise





Playback mode, Elapsed time, Resolution (Dot Matrix 7 English characters and numbers)





AC 90~250V ~ 50/60Hz Free voltage.





215 x 215 x70 mm (W x D x H)





1,381g



- HDD is not included.
- Some streaming couldnt play according to wireless setup environment.
- WMV (WMV9 only but Advance Profile is not supported), WMV7, WMV8 are not supported.
- MPEG4, XVID-GMC are not supported.
- 2 Channel Down Mix without external decoder amplifier.
- Some files might not be played even if the file format is correct and the codec are supported.
- For more detailed information, please visit the supported codec section in FAQ before you purchase the product
