Features
Scan rate up to 60 PPM at 200 dpi, color mode and 50 PPM at 300 dpi
The AV210D2+ delivers fast scan rates of 60 pages per minutes at 200 dpi color or 50 pages per minutes at 300 dpi color mode, providing a truly breathtaking digitalizing experience.

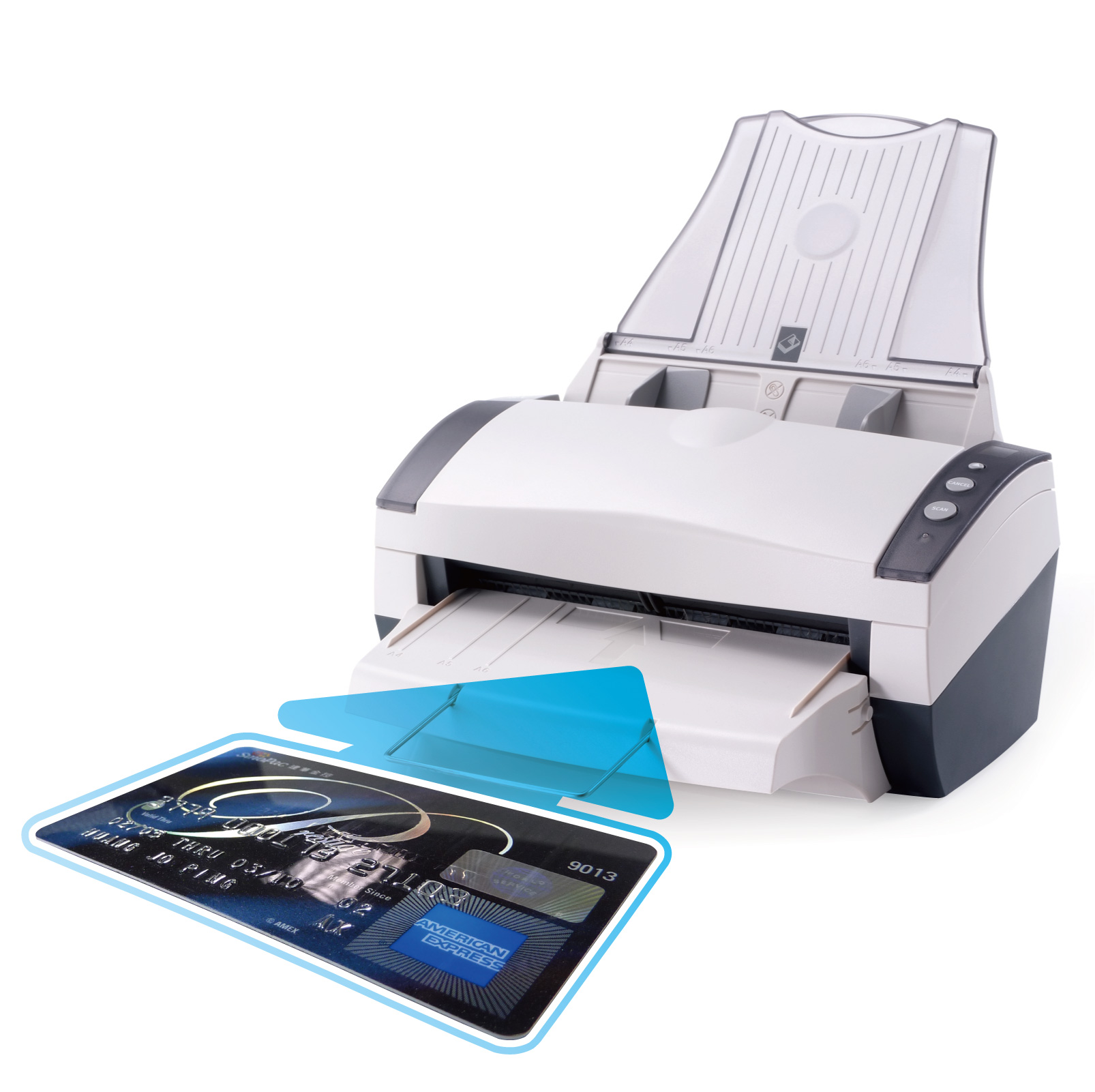

Includes front input tray and supports long page scanning up to 3 meters (118")
Avision's innovative front input tray allows you to scan thicker paper up to 1.25mm including business cards or embossed plastic cards such as credit cards with its straight paper path. In addition, the reliable paper feeding system assures you long page up to 3 meters (118") can be successfully converted in color, grayscale, or black and white mode. Scan mixed size documents with one single unit.
Complete Your Scan With A Simple Press
With a simple touch of the button, users can conveniently scan and send images to E-mail software, specific folder, favorite software application, your printer, or convert into searchable PDF format!
New TWAIN driver support

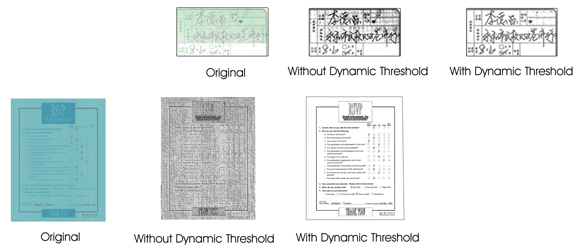

AV210D2+ incorporates the latest TWAIN driver with new features and enhancement such as the ability to adjust sensitivity of dynamic threshold, document/photo color matching, custom color dropout, automatic multiple cropping, intelligent multi-feed, reduce despeckle, image count, digital imprinter, and transport timeout. We are committed to improving the TWAIN driver continuously to enrich your scanning experience as never before.
Ultrasonic Multi-Feed Detection
The Avision AV210D2+ uses sound waves to detect multiple documents that go through the scanner at the same time. When multiple pages are fed, the scanner detects multi-feed and sends a warning message. This action ensures that all of your critical documents are imaged correctly without losing a single page.
Specification
| AV210D2+ |
| General Specification |
| Technology |
Color Charged-Coupled Device (CCD) |
| Light Source |
CCFL |
| Document feeding mode |
ADF |
| Optical Resolution (dpi) |
600 |
| Halftone Patterns |
Dither and Error Diffusion |
| Grayscale mode |
16bits input 8bits output |
| Color mode |
48bits input 24bits output |
| Memory Size |
256MB SDRAM |
| Dimensions (WxDxH) |
337 x 168 x 162 mm ( 13.3 x 6.6 x 6.4 in ) |
| Weight |
3.6 Kg ( 7.9 lb ) |
| Interface |
USB 2.0 |
| Power Consumpation |
Operation: < 30 W
standby: < 12 W
Power saving: < 5.2 W |
| Recommended Daily Volume |
Up to 4,000 pages |
| OS Support |
Win2K/XP/Vista/Win 7 |
| Bundled Software |
ISIS driver, TWAIN driver, Button Manager, AVScan 5.0, PaperPort 11 |
| Features |
| Ultrasonic paper jam detection |
Yes |
| Long Paper Mode |
Up to 36 inch (200 dpi)
Up to 118 inch (300 dpi @ color) |
| Card Scan |
(Front Feed) Embossed card (Thickness 1.25mm) |
| Scan Size |
| ADF Minimum |
50 x 74 mm ( 2 x 3 in ) |
| ADF Maximum |
216 x 356 mm ( 8.5 x 14 in ) |
| ADF Capacity |
50 sheets |
| Paper Thickness and Weight |
28 ~ 158 g/m ( 7 to 42 lb ) |
| Scanning Speed |
| B/W @ 200dpi, A4 |
60 PPM |
| B/W @ 300dpi, A4 |
50 PPM |
| Color @ 200dpi, A4 |
60 PPM |
| Color @ 300dpi, A4 |
50 PPM |
