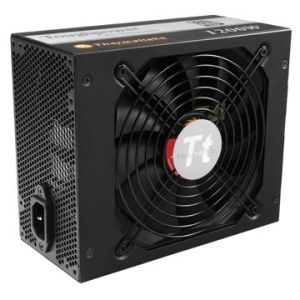

IMG 1 of 4
4 image(s) are available
for this product
Note: physical product may
vary from images displayed.
No Longer Available

Part Number:
176648
Usually Ships:
No Longer Available More info
(?) Brand:
Manuf No:
TT-TP-1200MPCSAU
TTTP1200MPCSAU
Shipping Weight:
4 KG (Includes product packaging)
Features
  • Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.
  • 24 / 7 @ 40?: Guaranteed to deliver 1200W continuous power.
  • 80 PLUS Silver certified with 87-91% efficiency @ 20-100% load under real world load conditions.
  • Double-forward switching circuitry offers low power loss and high reliability.
  • Unparalleled DC to DC converters for 3.3V and 5V outputs to reach high efficiency.
  • Robust and dedicated dual +12V rails(60A for 12V1, 80A for 12V2) design provides superior performance under all types of system loading.
  • High quality Japanese capacitors: ensure superb performance and reliability.
  • 105C Solid state capacitors: great stability at higher operating temperatures, frequencies and currents.
  • Universal AC input 115V~240V automatically scans and detects the correct voltage.
  • Multi-GPU ready: 8 x PCI-E connectors support up to 4-way ATI CrossFireX and Nvidia SLI.
  • Designed to support latest Intel/AMD multi -core CPUs.
  • Active PFC with PF value 0.99 - less harmonic pollution, greater efficiency.
  • Ultra-silent operation with intelligent 13.5cm cooling fan speed control.
  • Dimension: 150mm(W)x86mm(H)x180mm(L).
  • High reliability: MTBF>120,000 hours.
  • Built in industrial-grade protections: over current, over voltage, under voltage, over power, over temperature and Short-Circuit protections.
  • Safety / EMI : UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI certified.
Specifications
P/N TP-1200M
Type Intel ATX 12V 2.3 & EPS 12V 2.92
Max. Output Capacity 1200W
Peak Output Capacity 1300W
Color Black
Dimension (H x W x D) 86mm x 150mm x 180mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) @ 75% load at 115Vac/ 230Vac input.
Input current 12A 6A
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 115 Vac- 240 Vac
Operating Temperature +0? to +40?
Operating Humidity 10% to 90%,non-condensing
Storage Temperature -20 ? to +60 ?
Storage Humidity 5% to 95%, non-condensing
Cooling System 135mm Fan: 2400 R.P.M. 10%
Efficiency 87-91% efficiency @ 20-100% load
MTBF 120,000 hrs minimum
Safety Approval UL/CUL, CE, FCC, CB+Baurt mark, GOST and BSMI
PCI-E Connector x 8

No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.
