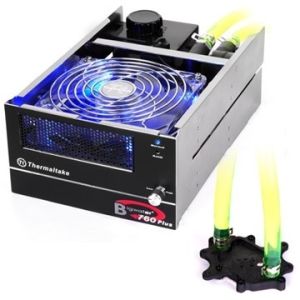

ThermalTake BigWater 760 Plus Liquid Cooling System - Dual Bay Drives Design, Front VRTM Control Knob, Copper Base

No Longer Available

Part Number:

176653

(?) Brand:

ThermalTake Web Site

Manuf No:

CLW0211

Shipping Weight:

4 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

CLW0211, CFANCLW0211, CFAN-CLW0211

Features

Dual 5.25 Drive Bay design: liquid cooling system in-a-box to save the space in the chassis and simplifies installation

Front- VRTM control knob, adjusts fan speed conveniently
Mesh design front bezel enhances ventilation
Easy toinstall and refill

Front-water level alarm signal, master the timing of refilling
12cm Motorsports Radiator:
1. Dimple Tube Technology swirls the coolant within the radiator to increase thermal transfer.
2. An all-aluminum radiator featuring expanded outer fins and tube style for maximum performance.
Pure Copper Base Waterblock with high efficiency channel design
Ultra-low noise fan: silent variable fan with blue LED (1600 ~ 2400rpm).
High-performance Liquid Pump:
1. Silent and powerful P500 (500L/hr) pump provide superb reliability.
2. The ceramic bearings significantly extend the life-expectancy of the pump.
Universal Socket Compatibility & Accessory Package
1. All-in-one back-plate design, support all Intel and AMD platform
2. Universal socket support :
Intel: LGA1366, LGA1156, LGA1155, LGA775
AMD: FM2, FM1, AM3, AM2+, AM2
3/8 UV sensitive Water Tube: Special material to prevent wear & tare from being clogged up or over bending

Detailed Features

P 500 Pump

Refill ReservoirVR Control Knob Motorsports Radiator

Nickel-Plated Copper Base Blue LED VR fan Water Level Alarm Signal

Specifications

P/N	CLW0211
2U Bay Drives	Dimension: 232mm(L) x 148.6mm(W) x 85mm(H) Weight: 1.25 kg
Application	AMD FM2/FM1/AM3/AM2+/AM2 Intel LGA1366/LGA1155/LGA1156/LGA775
Water Block	Material: Copper (Base) Dimension: 80mm(L) x 52mm(W) x 31mm(H) Connector: For 9.5mm ID (3/8) tubing Weight:75.9 (g)
Pump	Dimensions: 75(L) x 70(W) x 75(H) mm Bearing : Ceramic bearing Maximum Capacity : 500 L/ hr Rated Voltage : DC 12V Input current : 600 mA Connector : 4 pin Noise : 16 dBA Life time : 80,000 hr (MTBF)
Radiator	Dimensions: 153(L) x 120(W) x 28(H) mm Material: Aluminum Tube Design: Aluminum, Dimple Fin Design: Aluminum, Louvered Connector: For 9.5mm ID (3/8) tubing
Fan	Fan Dimension: 120(L) x 120(w) x 25(H) mm Fan Speed: 1600~2400 RPM Rated Voltage: 12V Noise: 29.4 ~39.9dB Life Expectancy: 30,000 hr Connector: 3pin
Liquid Tank	Dimensions: 72.4 (L) x 70.5(W) x 69.4(H) mm Capacity :130 c.c Connector: For 9.5mm ID(3/8) tube
Coolant	Capacity: 500 c.c Major Material Ingredient : Ethylene Glycol

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.
