Panel |
Diagonal Size |
55" |
Type |
120 Hz LED BLU |
Resolution |
1920 x 1080 (16 : 9) |
Pixel Pitch(mm) |
0.21 (H) x 0.63 (V) |
Active Display Area(mm) |
1209.6 (H) x 680.4 (V) |
Brightness(Typ.) |
380 nit |
Contrast Ratio |
5000 : 1 |
Viewing Angle(H/V) |
178 : 178 |
Response Time(G-to-G) |
8 ms |
Display Colors |
10 bit Dithering ~ 1.07 Billion |
Color Gamut |
73% |
Display |
H-Scanning Frequency |
30 ~ 81 kHZ |
V-Scanning Frequency |
48 ~ 75 HZ |
Maximum Pixel Frequency |
148.5 MHz |
Connectivity |
Input |
RGB |
Analog D-SUB, DVI-D, Display Port |
Video |
Component (CVBS Common), HDMI |
Audio |
Stereo mini Jack |
Output |
RGB |
DVI-D |
Audio |
Stereo mini Jack |
External Control |
RS232C (in / out) thru stereo jack, RJ45 |
Power |
Type |
Internal |
Power Supply |
AC 100 ~ 240 V ~ (+ / - 10%), 50 / 60 Hz |
Power Consumption |
On Mode |
180 W (Max) / 160 W (Typ) |
Off Mode |
Less than 1 W |
Mechanical Spec |

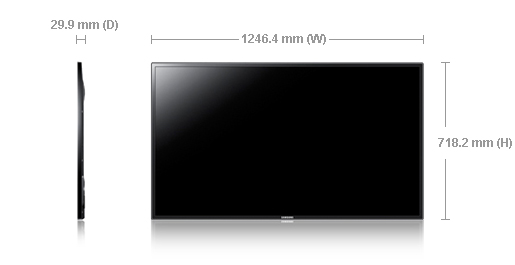

Dimension (mm) |
Set |
1246.4 x 718.2 x 29.9 |
Package |
1364 x 848 x 199 |
Weight (kg) |
Set |
17.1 |
Package |
22.2 |
VESA Mount |
400 x 400 mm |
Stand Type |
Foot Stand (optional) |
Media Player Option Type |
Internal Player (Embedded H / W) / 800 MHz (512 KB, L2 Cache Size) Processor / 850 MB (Excluding OS, F / W Usage) Storage / 1 GByte DDR3 SDRAM (667 MHz Clock) System Memory / Video Memory Shared with System Memory |
Operation |
Operating temperature: |
10C ~ 40C |
Humidity |
10 ~ 80% |
Feature |
Key |
Slim & light LFD with built-in MagicInfo Lite |
Special |
Built in MagicInfo Lite, Built in Speaker (10 W + 10 W), Plug and Play (thru USB), Narrow bezel, Slim depth (29.9, mm) |
Certification |
Safety |
CUL (USA + Canada): UL60065 TUV (Germany): EN60065 CB (Europe): IEC60065 / EN60065 EK (Korea): K60065 CCC (China): GB8898 PSB (Singapore): IEC60065 GOST (Russia ): IEC60065, EN55022 SIQ (Slovenia ): IEC60065, EN55022 PCBC (Poland): IEC60065, EN55022 NOM (Mexico): NOM-001-SCFI-1993 IRAM (Argentina): IRAM SASO (Saudi Arabia): IEC60065 |
EMC |
FCC (USA) FCC Part 15, Subpart B class B CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24 BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC(China): GB 9254-2008, GB 17625.1-2003 |
Environment |
ENERGY STAR 5.0 (USA) |
Accessories |
Included |
Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries |
Optional |
Stand |
STN-LE4055AD |
Mount |
WMN4270SD / WMN2000BD |
Specialty |
CML450D (ceiling mount) |
