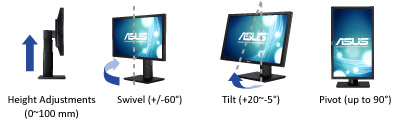

Versatile Comfort with Ergonomic Design
The ergonomically-designed PA238Q Professional Monitor comes with swivel, tilt, pivot, and height adjustments for ideal viewing position.

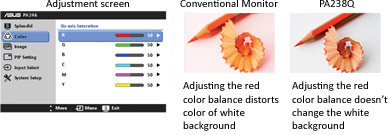

Customized Color Adjustment
Customized hue and saturation control with 6 color adjustment allows user to adjust six colors (red, green, blue, cyan, magenta and yellow) independently without effecting other colors.
Picture-in-Picture and Picture-by-Picture
Picture-in-Picture and Picture-by-Picture allows users to view images from different signals in almost anyway they want
Hassle-Free Connection
PA238Q comes with rich connectivity including DisplayPort, HDMI, DVI, D-sub. It is also equipped with four USB 2.0 ports so that users could easily connect PA238Q to many peripherals, such as USB drives, keyboard, mouse, digital camera, etc.
Mercury-free LED-backlit panel
Embedded LED backlight panel helps power saving and environmental protection with no mercury usage.
Award-winning Design
Reddot Design Award winner 2011
Specifications
| Display |
Panel Size: Wide Screen 23.0"(58.4cm) 16:9
Color Saturation : 100%(sRGB)
Panel Type : IPS
True Resolution : 1920x1080
Full HD 1080P : Yes
Pixel Pitch : 0.2652mm
Brightness(Max) : 250 cd/
ASUS Smart Contrast Ratio (ASCR) : 50000000:1

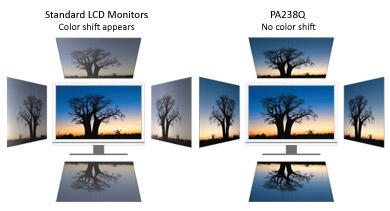

Viewing Angle (CR10) : 178(H)/178(V)
Response Time : 6ms (Gray to Gray)
Display Colors : 16.7M
LCD ZBD Warranty : Yes |
| Video Feature |
Trace Free Technology
SPLENDID Video Intelligence Technology
Color Space : sRGB (100% Coverage)
SPLENDID Video Preset Modes : 5 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/User Mode)
Color Temperature Selection : 4 Modes
Color Accuracy : E 5
Gamma adjustment : Yes (Support Gamma 2.2/1.8 )
Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y)
Picture-in-Picture
Picture-by-Picture
HDCP support |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Contrast Adjustment
Input Selection
QuickFit |
| I/O Ports |
Signal Input : HDMI , D-Sub, DisplayPort, DVI-D
AV Audio Input : HDMI 1.3
Earphone jack : 3.5mm Mini-Jack (for HDMI & DisplayPort Only)
USB Port(s) : 1 x upstream, 4 x downstream |
| Signal Frequency |
Analog Signal Frequency : 24~83 KHz(H)/ 50~75 Hz(V)
Digital Signal Frequency : 24~83 KHz(H)/ 50~75 Hz(V) |
| Power Consumption |
Power ON(Typical): < 33W (without audio and USB hub connection)
Power Saving Mode : < 1W
Power Off Mode : 0W (hard switch) |
| Mechanical Design |
Chassis Colors : Black
Tilt : +20~-5
Swivel : Yes
Pivot : Yes
Height Adjustment : Yes
VESA Wall Mounting : 100x100mm |
| Security |
Kensington lock |
| Dimensions |
Phys. Dimension with Stand(WxHxD) : 548.8x495.7x201mm
Box Dimension (WxHxD) : 671x386x253mm |
| Weight |
Net Weight (Esti.) : 5.5 kg
Gross Weight (Esti.) : 7.8 kg |
| Accessories |
Cable tie
DVI cable
VGA cable
Audio cable
Power cord
DisplayPort cable
USB cable
Quick start guide
Support CD
Warranty Card |
| Regulation Approval |
Energy Star , UL/cUL, CB, CE, ErP, FCC(Class B), CCC, BSMI, Gost-R, C-Tick, VCCI, TCO5.2, TUV-GS, TUV-Ergo, ISO-9241-307, PSB, J-MOSS, RoHS, WEEE, Windows 7 WHQL, Mac Compliance |
