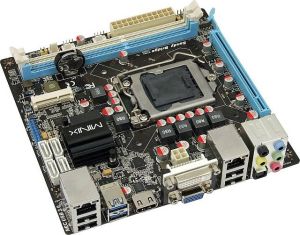

MINIX-H67-USB3 | J&W MINIX H67-USB3 Motherboard

Processor

1. LGA1155 for 2nd Gen Intel  Core i7, Core i5, Core i3, Pentium and Celeron processors (up to 95W TDP Core i7 processors)
2. Supports Intel  Turbo-boost Technology
3. L3 cache varies with CPU

Chipset

1. Intel H67 Express Chipset
2. Dual Broadcom 57788 Gigabit Ethernet Controllers
3. Renesas (NEC) D720200AF1 low-power version USB 3.0 chip
4. Super I/O: Nuvoton NCT5577D chip
5. Realtek ALC 892 8-Channel HD Audio Codec
6. 32 Mbit flash ROM

Memory

1. Type: Dual Channel DDR3 1333/1066MHz support
2. Max capacity: 16 GB
3. DIMM slots: 2

Internal I/O

Connectors

1. 1 x 24-pin ATX power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x SATA III 6Gb/s connectors
4. 2x SATA II 3Gb/s connectors
5. 1 x CPU fan header
6. 2 x System fan headers (4-pin x1, 3-pin x1)
7. 1 x Front panel header
8. 1 x Front panel audio header
9. 2 x USB 2.0 header for additional 4 USB 2.0 ports (by cables)
10. 1 x Speaker header
11. 1 x S/PDIF Out header

Expansion Slots

1. 1 x PCI-E x16 Gen. 2 slot
2. 1 x mini PCI-E slot w/N-WiFi+Bluetooth module

Rear Panel I/O

1. 2 x RJ-45 LAN port
2. 4 x USB 2.0 ports
3. 2 x USB 3.0 ports
4. 1 x HDMI port
5. 1 x DVI-D port
6. 1 x D-Sub VGA port
7. 5 x Audio jacks
8. 1 x Optical S/PDIF Out port

Form Factor

1. Mini-ITX
2. 170mm (W) x 170mm (L)

H/W Monitoring

1. Nuvoton NCT5577D chip
2. System health status auto-detect and reported by BIOS

BIOS

1. 32 Mbit flash ROM, AMI UEFI BIOS

Bundle Software

1. Kaspersky  Internet Security 2011 30-Day Trial License
2. Driver and Utility DVD

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME.
3. *The DVI-D port does not support D-Sub connection by an adapter.
