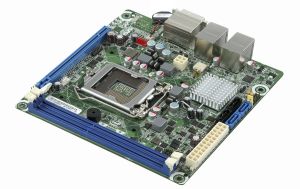

Intel S1200KP Motherboard
  • LGA1155, C206 Chipset, 2xDDR3-1066, 1xPCI-Ex16 v2.0, 4xSATA-II, RAID, GigLAN, Mini-ITX

IMG 1 of 1
No Longer Available
Part Number:
177690
(?) Brand:
Intel Web Site
Manuf No:
DBS1200KP
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DBS1200KP
Intel® Server Board S1200KP

Overview

Sub-entry server board targets small business first server or embedded applications.

The Intel Server Board S1200KP provides essential server features for small businesses needing the power and reliability of the Intel Xeon processor E3-1200 product family. Its unique mini-ITX form factor supports 2 ECC UDIMMs, and E3 processors with integrated graphics.

Features and benefits

Intel Xeon processor E3 1200 product family Significant performance increase with new processor microarchitecture delivering world-class performance and superior energy/power efficiency
Intel C206 chipset Provides enterprise performance and reliability
2 DIMM slots for DDR3 1066/1333 MHz Ensures energy-efficient performance for any application
Mini ITX form factor 6.7 x 6.7 board size easily integrates basic server features with low cost acquisition
16 Gen2 I/O lanes High speed PCI Express* 2.0 slot for better performance
4 SATA ports and 2 integrated LAN ports Allows for excellent data protection at no extra cost

Related products

Processors
  • Intel Xeon processor E3 1200 series
RAID
  • Intel RAID Controllers
Solid state drives
  • Intel Solid State Drives
Server adapters
  • Intel Server Adapters

Product specifications

Board Order Code S1200KP
Form factor Mini-ITX (6.7 x 6.7)
Processor support Intel Xeon processor E3 1200 series
Chipset Intel C206 chipset
Memory

2 DDR3 ECC UDIMM sockets (Unbuffered)

  • 2 channel native (1066/1333 MHz)
Total slots One PCI Express* 2.0 x16 slot (x16 mechanical)
Storage 4 SATA ports (2x6 Gbps, and 2x3 Gbps) via Intel C206 chipset with Intel Embedded Server RAID Technology and Intel RST (spell out RST)
Intel RAID support Integrated SATA RAID levels 0/1/5/10
Integrated LAN Embedded Intel Dual Gigabit Ports (82574L and 82579 Controllers)
Integrated graphics Via E3 Xeon processor

No additional files, specification sheets, guides or documentation found for product.
