TViX XROID A1
Overview
Enjoy your Smart TViX !
Xroid A1 opens New Era of Smart Multimedia Tvix through integration of the-state-of-the-art Android Platform as operating system, which is widely being used for most of Innovative Digital Devices including Smart Phone and Smart TV.

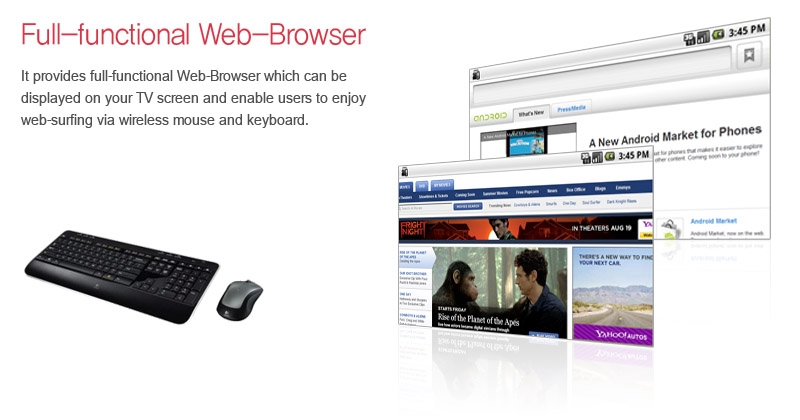

Web Browser and Multi-tasking

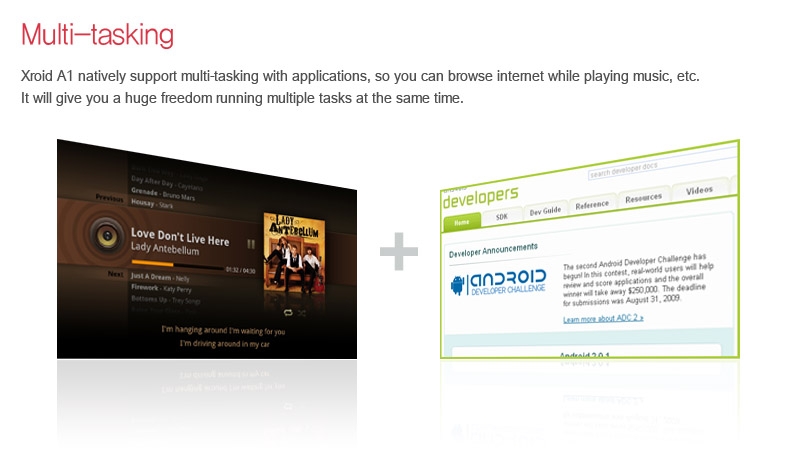

It provides full-functional Web-Browser which can be displayed on your TV screen and enable users to enjoy web-surfing at any time when they want. Xroid A1 natively supports Multi-Tasking with applications, so users browse internet while playing music and etc.
Universal Jukebox That Supports Most Of The Media Formats
By supporting superb H264 video compression & MKV container format, you can enjoy full HD videos. On top of this, oncoming HD media backup files as well as DVD backup files are supported. It functions as a universal jukebox that allows you to enjoy videos and music of ultimate quality through full HD picture and next generation high definition audio output. It can also playback todays high-res photos and lossless music files.

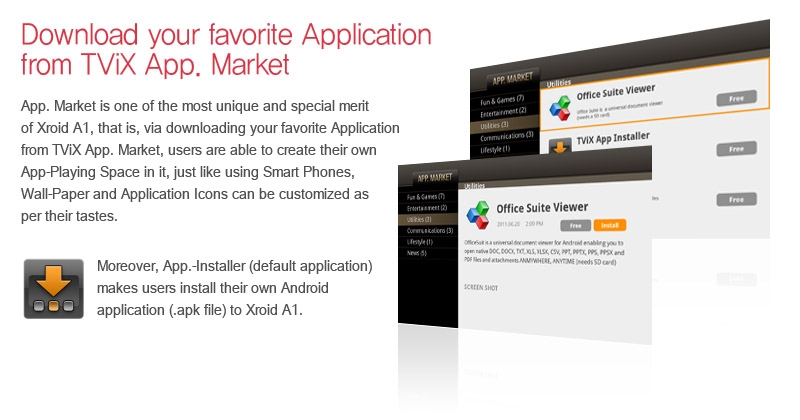

Install your favorite applications from App - Market
App. Market is one of the most unique and special merit of Xroid A1, that is, via downloading your favorite Application from App. Market, users are able to create their own App-Playing Space in it, just like using Smart Phones, Wall-Paper and Application Icons can be customized as per their tastes.
- Running on Android OS
- Smart HDTV Player with Web-Browser
- Install your favorite applications from App - Market

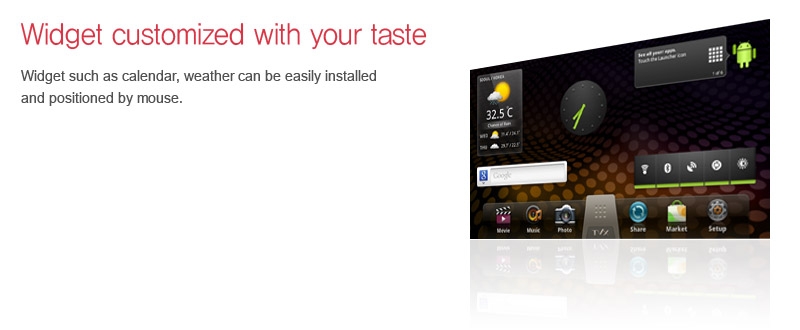

- Enjoy Multi-Tasking and variable widgets with Apps

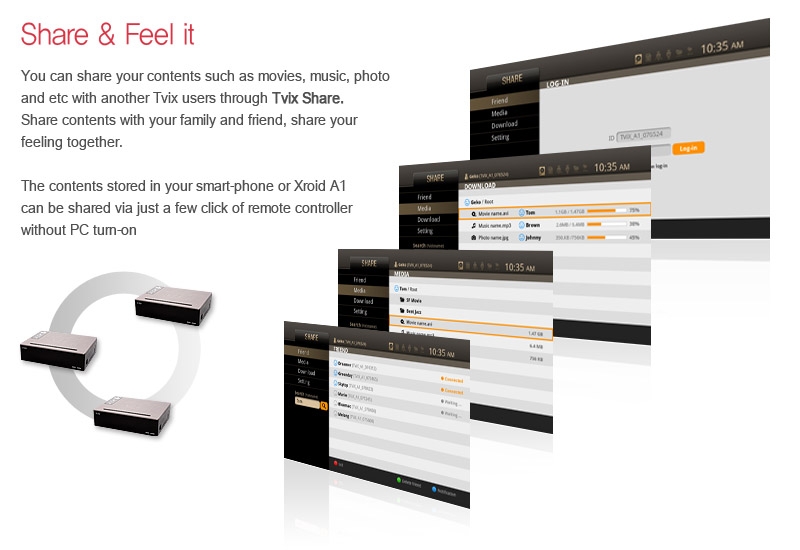

- Unique Tvix Share
- Web-Remote Control by Smart Phone
- Innovative Cover-Art User Interface
- True Cinema (23.976Hz) Frame-Rate Support
- Next-Generation High Definition Audio Pass-thru
- Lossless Music File Support (FLAC/WAV)
- UPnP for easy connection to the Network
- One Click, One Touch HDD Installation without screw
- Date Management by NAS
- USB 3.0, e-SATA Host, HDMI1.3
- Connect your mouse & keyboard
- Memory Reader for SD/MS card (Copy and Paste)
- Optional 802.11n WiFi-module support (usb type)
Features
Specifications
Main Chipset
Sigma Design SMP8657 + Android 2.2(Froyo), 1.2G DMIPS
Memory
Main: 512MB DDR SDRAM / Flash: 512MB
Maximum Resolution
up to 1920 x 1080P
Video Format (Containers)
MKV, AVI, VOB
ASF, WMV
MPEG1/2/4 Elementary
MPEG1/2 PS: M2P, MPG
MPEG2 Transport Stream: TS, TP, TRP, M2TS, MTS, MOD, TOD
ISO, IFO
MOV (H.264), MP4
.MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .iso, .ifo, .m2ts, .mov, .flv, .rm, .rmvb, .asf, .mts, .mpeg
Video Codec
XVID SD/HD
MPEG 1
MPEG-2 (MP@HL)
MPEG-4.2 (ASP@L5, 720p, 1-point GMC)
WMV9 (MP@HL),
H.264 (BP@L3,
[email protected])
VC-1 (MP@HL, AP@L3)
RealVideo 8/9/10
FLV(H.264)
Audio Format (Container)
AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA),
PCM, AC3, FLAC (Audio track in MKV)
WAV(DTS), WAVPACK, WMA (Lossless not supported)
Ogg
Audio Codec
Dolby Digital
DTS Down Maxing
WMA, WMA Pro
FLAC, WAV, MP1, MP2, MP3, M4A, LPCM, Ogg Vorbis
Audio Pass-thru
DTS, Dolby Digital, High Definition Audio Pass-thru
Photo Image
JPG, JPEG, BMP, PNG, GIF
Languages
English, Traditional
Chinese, Japanese, Spanish, French, Germany, Italian, Korean, Nederlands, Russian, Rumanian, Czech, Arabic, Vietnamese, Bulgarian, Hebrew, Swedish, Greek, Turkish, Polish, Portuguese, Croatian, Thai
Subtitles
smi, smil, sub/idx, srt, .ssa, .ass, MKV embedded subtitle
Video / Audio Output
HDMI 1.3a (Video 24 bit), Component, Composite
Digital: Coaxial, Optical
Analog: Stereo
HDD Supported
NTFS, FAT32 (3.5 SATA , HDD)

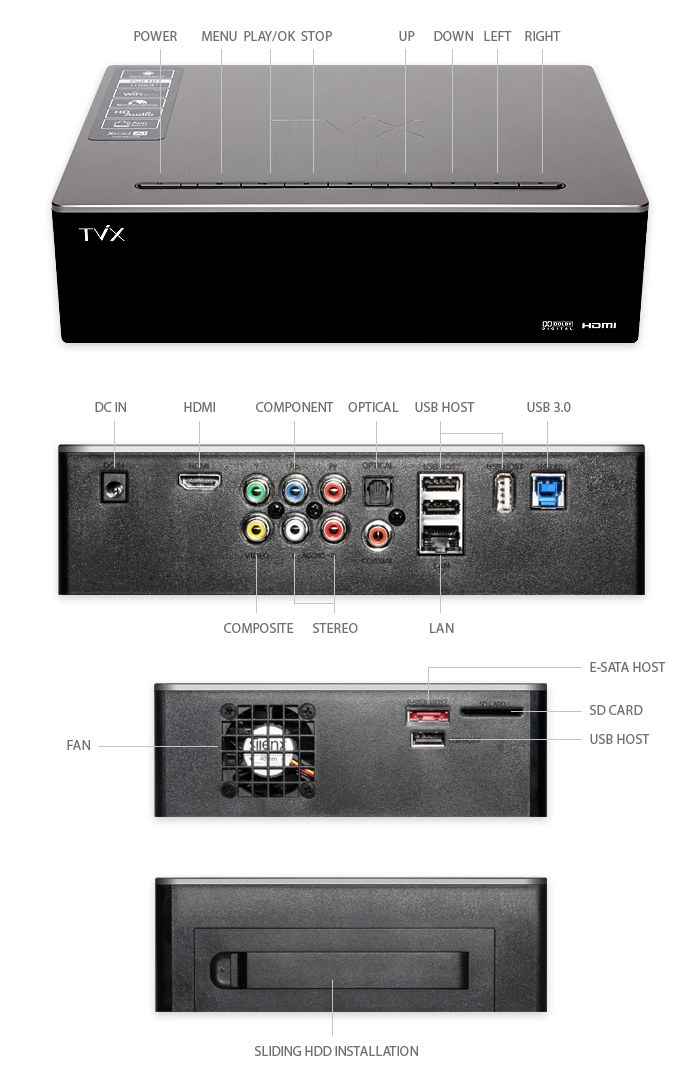

Interface
USB 2.0 Host 4 Ports (USB1/ USB2: 5V , 500 mA max), USB 3.0 Target 1 Port
E-SATA Host, SD slot
Mouse, Keyboard
Network
10/100 Ethernet
Wi-Fi 802.11n(optional)
Network Protocol
UPnP, SAMBA Client, NFS (with Net-Share)
SAMBA server , FTP
Cooling Fan
Internal temperature sensing mechanism, 40mm low noise
VFD Display
Playback mode, Elapsed time, Resolution (Dot Matrix 7 English characters and numbers)
POWER CONSUMPTION
DC 12V
Dimension
215 x 160 x 55 mm (W x H x D)
Weight
1,11kg
Caution
- HDD is not included.
- Some streaming couldnt play according to wireless setup environment.
- ASF, WMV (WMV9 only but Advance Profile is not supported), WMV7, WMV8 are not supported.
- MPEG4, XVID-GMC are not supported.
- 2 Channel Down Mix without external decoder amplifier.
- Some files might not be played even if the file format is correct and the codec are supported.
- For more detailed information, please visit the supported codec section in FAQ before you purchase the product
