OSD-040D, OSD040D, BR16550
36x Speed Dome Network Camera
OSD-040 36x Series
- Sony Super HAD II CCD Sensor with Effio DSP in D1 Resolution
- 36x Optical Zoom
- 360 Endless Pan, 200 Tilt
- MPEG-4, MJPEG and H.264 Triple Codec Compression
- 3D Privacy Masks for Private Area Protection
- Weather-Proof (IP66) Casing with Built-in Fan and Heater
- Removable IR-Cut Filter for Day and Night Function

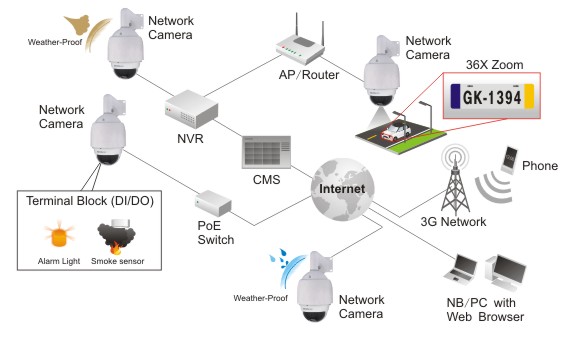

- 1 DI/DO for External Alarm and Sensor Device
- EasyConfig for Easy Set Up and GUI Integration
Overview
The Brickcom OSD-040D 36x-59 is a high-end, Speed Dome network camera designed to provide high-quality video surveillance for outdoor environments. By offering H.264/M-JPEG/MPEG-4 triple codec compression, it is able to provide a flexible system which does not require high bandwidth or storage capabilities.
The advanced features of the OSD-040D 36x-59 work together to create crystal-clear video surveillance. By adopting a powerful 36x optical zoom lens with auto focus, it can easily provide clear close-up shots of objects. The Sony Super HAD II CCD sensor with Effio DSP(Digital Signal Processor) and removable IR-cut filter significantly improve the light sensitively of the OSD-040D 36x-59, providing excellent surveillance in both day and night settings. When its Wide Dynamic Range (WDR) sensor, the camera can handle extreme variations of brightness within the same sense. The WDR sensor averages out the very bright and very dark areas to create a more even evenly exposed video scene which is close to what the human eye would see.
Along with high-level sensors, the OSD-040D 36x-59 is equipped with a fast and precise pan/tilt mechanical design. The 360o continuous pan and -10o ~190o tilt combine with a rotation speed of 0.5o ~400o per second to provide complete coverage of every angle. With such powerful pan, tilt and zoom capabilities and a weather-proof casing (IP66), this camera is perfect for environments where precision and reliability are key; such as railway stations, airports, warehouses, and production facilities.
Specifications
| Product Name |
36x Speed Dome Network Camera |
| Model Name |
OSD-040D 36x: NTSC
OSD-040E 36x: PAL |
| Hardware System |
CPU : 500 MHz
Flash : 16M
RAM : 128M DDR |
| Image Sensor |
Sensor Type : 1/4" Sony Super HAD II CCD Sensor
with Sony Effio DSP
Sensor Resolution :
720x480(NTSC)
720x576(PAL) |
| Minimum Illumination |
Color : 0.1 Lux
B/W: 0.01 Lux |
| LENs |
36x Optical Zoom Lens
Focal Length: f= 3.4 ~ 122.4 mm
F number: F1.6 ~ F4.5
Horizontal View Angle : 1.7 ~ 55.8
Removable IR Cut Filter
Auto Iris/ Auto Focus |
| Video |
Auto Exposure Control / Auto White Balance /
Auto Gain Control
Image Compression:
H.264 / MPEG4 / MJPEG |
| Max Image Resolution |
OSD-040D 36x: 720x480: 30 fps
OSD-040E 36x: 720x576: 25 fps |
| Audio |
2-way audio
External MIC/Line Input
External Audio Output |
| Network |
Ethernet: one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP,
NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba,
PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
|
| Pan/ Tilt/ Zoom |
Pan: 360, 0.5~400/s
Tilt: 200(-10~190) , 0.5~400/s
Zoom: 36x Optical Zoom
12x Digital Zoom |
| Interface & Buttons |
AC Power In
Ethernet Cable Connector
General I/O Terminal Block
Video Out(BNC)
External MIC/Line Input
External Audio Output |
| Power Input |
AC 24V 10% |
| Max Power consumption |
65 watt (with Heater) |
| Environment |
Operating Temperature :-45C ~ 50C (-49F~122F)
Operating Humidity : 20% ~ 80% |
| Dimension |
190 x 302.5mm ( 7.5x 11.9 Inches), with sunshield |
| Weight |
2.6 kg (5.7 lbs) |
| Certification |
FCC,CE, IP-66 |
| Warranty |
Limited 1-year warranty |
