0F13180

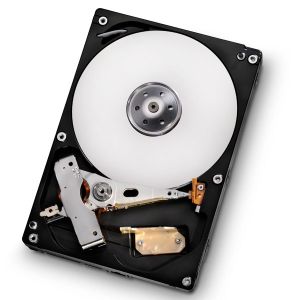

Deskstar 7K1000.D
250GB to 1TB
3.5-INCH HARD DISK DRIVE
- Capacity Choice Range of popular capacities
- High Performance 7200 RPM for fast data access
- Low Power Best-in-class power management for cooler operation
Overview
The Deskstar 7K1000.D is Hitachis first one-disk, 1TB, 7200 RPM 3.5-inch hard drive for use in power-friendly consumer and commercial desktop computers. This fourth-generation 1TB hard drive from Hitachi uses Advanced Format, which increases the sector size on HDDs from 512 bytes to 4096 (4K) bytes, thereby increasing capacities and improving error correcting capabilities. Consult the Hitachi Advanced Format Technology Brief for more information on these drives. Leveraging eighth-generation power management technology, as well as power-saving HiVERT innovations pioneered on the popular 2.5-inch line of notebook hard drives from Hitachi, this new desktop drive provides up to 16% idle power savings over the previous model, delivering best-in-class power management and thermal emissions.
Specifications
| Model(s) |
HDS721010DLE630
HDS721075DLE630
HDS721050DLE630
HDS721032DLE630
HDS721025DLE630
|
|
|
| Interface |
SATA 6Gb/s |
|
|
| Capacity (GB) |
1TB / 750 / 500 / 320 / 250 |
|
|
| Sector size (variable, Bytes/sector) |
512e |
|
|
| Max areal density (Gbits/sq. in.) |
569 |
|
|
| Performance |
| Data buffer (MB) |
32 |
|
|
| Rotational Speed (RPM) |
7200 |
|
|
| Media transfer rate (Mbits/sec, max) |
1822 |
|
|
| Interface transfer rate (MB/sec, max) |
600 |
|
|
| Reliability |
| Error Rate (non-recoverable, bits read) |
1 in 1014 |
|
|
| Load/Unload Cycles |
300,000 |
|
|
| Availability (hrs/day x days/wk) |
24x7 |
|
|
| Acoustics |
| Op (Bels, typical) |
2.5 |
|
|
| Power |
| Requirement |
+5 VDC (+/-5%)
+12 VDC (+/-10%) |
|
|
| Requirement: Start-up (W, peak, max) |
0.6 (+5V), 2.0 (+12V) |
|
|
| Performance Idle |
3.7 |
|
|
| Physical size |
| Z-height (mm) |
26.1 |
|
|
| Dimensions (width x depth, mm) |
101.6 x 147 |
|
|
| Weight (g, max) |
450 |
|
|
| Environmental (operating) |
| Ambient temperature |
0 to 60C |
|
|
| Relative Humidity |
8% to 90% |
|
|
| Shock (half-sine wave) |
70 |
|
|
| Vibration |
0.67 (XYZ) |
|
|
| Environmental (non-operating) |
| Ambient temperature |
-40 to 70C |
|
|
| Relative Humidity |
5% to 95% |
|
|
| Shock (half-sine wave) |
350 |
|
|
| Vibration |
1.04 (XYZ) |
|
|
Capacity(GB) - One GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity may be less.
Data Buffer (MB) - Portion of buffer capacity used for drive firmware
Availability - Intended for low duty cycle, non mission-critical applications in PC, nearline, and consumer electronics environments, which may vary from application to application. Note that customer environments may vary from application to application.
Highlights
Capacities up to 1TB
7200 RPM performance
Up to 18% idle power savings over previous generation product
Halogen-free design for eco-friendly footprint
Built on award-winning proven design
Applications / Environments
Consumer and commercial computers
Personal storage
PC gaming
