All stock codes associated to this product
SYN25SAT3128G, SYN-25SAT3-128G, OCZSYN25SAT3128G, OCZ-SYN-25SAT3-128G
OCZ Synapse Cache SATA III 2.5" SSD
Description
SATA III Solid State Drive / Caching Solutions / 80,000 IOPS / 64GB-128GB The OCZ Synapse Series is optimized for caching applications to dynamically manage the Synapse SSD in conjunction with standard hard disk drives (HDDs), to provide users with SSD-level performance across the entire capacity of the HDD. The OCZ Synapse Series leverages the latest and most advanced hardware and software technology to deliver superior storage performance without sacrificing HDD capacity. For users craving the performance advantages of SSDs combined with the high capacities associated with HDDs, OCZ offers the first no-compromise approach to enabling high-performance and high-capacity storage for virtually any PC platform. The OCZ Synapse Series integrates Dataplex caching software to dynamically manage the use of both SSD and HDD for superior overall storage performance. This combination creates an environment where the most frequently used "hot" data stays on the ultra-fast SSD, while the "cold" data remains on the larger capacity HDD (sold separately). Advanced caching algorithms learn user behavior and adapt storage policies to ensure optimal performance for each individual user, maximizing productivity for the most demanded programs and applications:
Synapse Series integrates seamlessly within any modern PC platform, ensuring optimal compatibility along with performance gains and comes backed by a 3-year warranty.
Important SSD notes: Consumers may see a discrepancy between reported capacity and actual capacity; the storage industry standard is to display capacity in decimal. However, the operating system usually calculates capacity in binary format, causing traditional HDD and SSD to show a lower capacity in Windows. In the case of the Synapse SSD, 50% NAND flash overprovisiong is used to accommodate performance and software features. Rated speeds may vary slightly depending on the benchmark used, drivers, windows version, bios version and file size. Rated performance is achieved by using the Asus P8P67 Pro motherboard in conjuntion with a 1TB HDD, using ATTO, IOMeter, and PC Mark Vantage.
Specifications
- Available in 64GB and 128GB capacities*
- Interface: SATA 6Gbps / Backwards Compatible 3Gbps
- MLC NAND Flash
- Native TRIM support
- Integrated Dataplex caching software
- ECC Recovery, Data Encryption
- Slim 2.5" Design: 98 x 69.9 x 9.1 mm
- Lightweight: 79g
- Operating Temp: 0C ~ 70C
- Ambient Temp: 0C ~ 55C
- Storage Temp: -45C ~ 85C
- Low Power Consumption: 2.7W Active, 1.5W Idle
- Shock Resistant up to 1500G
- Included 3.5" Desktop adapter bracket
- Compatible with Windows 7 32-bit and 64-bit
- MTBF: 2 million hours
- 3-Year Warranty
*NOTE: Synapse Series features 50% NAND flash overprovisiong to accommodate performance and software features

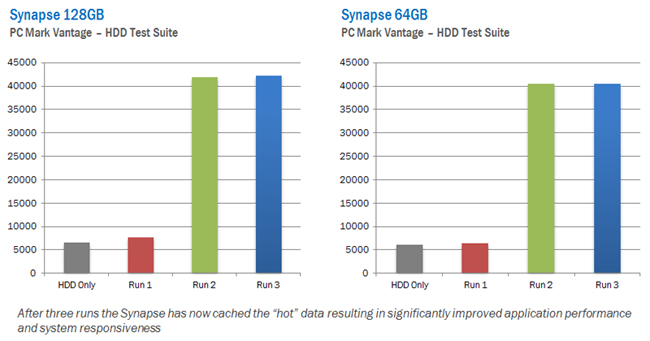

64GB Max Performance
- Max Read: up to 550 MB/s
- Max Write: up to 490 MB/s
- Random Write 4k: 75,000 IOPS
128GB Max Performance
- Max Read: up to 550 MB/s
- Max Write: up to 510 MB/s
- Random Write 4k: 80,000 IOPS
Resources
- Synapse Cache FAQs
- OCZ SSD Selector
Part Numbers
- 64GB (32GB cache capacity): SYN-25SAT3-64G
- 128GB (64GB cache capacity): SYN-25SAT3-128G
