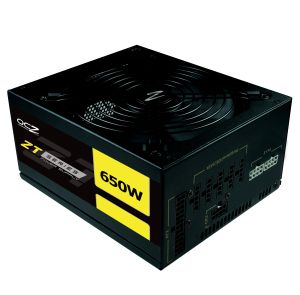

OCZ 650W ZT Series - ATX 12V v2.2, EPS 12V, 140mm Fan, Fully Modular Cabling System, 80PLUS Bronze Certified
  • 9x SATA, 2x PCI-E 6+2-Pin

IMG 1 of 1
No Longer Available
Part Number:
180859
(?) Brand:
OCZ Web Site
Manuf No:
OCZ-ZT650W-AU
OCZZT650WAU
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
OCZZT650WAU, OCZ-ZT650W-AU, 02OZT650W, 02O-ZT650W

OCZ ZT Series 550W-750W Power Supply


02O-ZT650W

Description

High-Performance / 550~650W~750W / Fully Modular Cable Management / 80-Plus Bronze

The ZT series is the superb choice for performance and power users who need solid, reliable PSU. With a completely modular design, ZT Series keeps your internal case environment organized by eliminating wire clutter and improves airflow by using only the cables you require. Kept supremely cool with a load-controlled 140mm fan, the OCZ ZT Series PSU was engineered to be ultra-quiet by eliminating distracting noises from your PC when working or gaming. With an 80-Plus Bronze Certification featuring up to 85% efficiency under typical load environments, this power supply remains rock solid and stable.

Specifications

Technical

  • Available in 550W, 650W, 750W
  • Single +12V rail for efficient power distribution
  • Heavy-duty protection circuitry
  • Fully Modular Cabling System
  • 80-Plus Bronze Certified (85% efficient at typical load)
  • 140mm ball-bearing fan
  • Dimensions: 150 x 86 x 175mm (W x L x H)
  • Rated at 45C ambient
  • Premium 105C electrolytic capacitors
  • Erp compliant, low power usage in standby mode
  • Active PFC
  • ATX 12V 2.2 Compliant
  • MTBF: 100,000 hours
  • 5-year warranty

750W Connectors

  • 1 x 20+4-pin ATX
  • 2 x 4+4-pin ESP/12V CPU
  • 4 x 6+2-pin PCI-E
  • 6 x 4-pin Peripheral
  • 9 x 5-pin SATA
  • 1 x Floppy

650W Connectors

  • 1 x 20+4-pin ATX
  • 1 x 4+4-pin ESP/12V CPU
  • 2 x 6+2-pin PCI-E
  • 6 x 4-pin Peripheral
  • 9 x 5-pin SATA
  • 1 x Floppy

550W Connectors

  • 1 x 20+4-pin ATX
  • 1 x 4+4-pin ESP/12V CPU
  • 2 x 6+2-pin PCI-E
  • 6 x 4-pin Peripheral
  • 6 x 5-pin SATA
  • 1 x Floppy

Part Numbers

  • 550W: OCZ-ZT550W
  • 650W: OCZ-ZT650W
  • 750W: OCZ-ZT750W
*Please refer to product sheet for a list of worldwide model numbers

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (OCZ) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
