MW712
A Widescreen View for Small Classrooms
Featuring an impressive brightness of 3200 ANSI lumens, a ultra-high contrast ratio of 10000:1 and a WXGA resolution, the MW712 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
World-Leading SmartEco Technology
for a Greener Environment
Schools today face the challenge of introducing new technologies and teaching tools into their classrooms and cut down on energy costs. In the effort to help schools meet the learning needs of their students as well as the green goals set by the school district, BenQ has collaborated with Philips Lighting in developing the perfect solution – the SmartEco Technology.
The SmartEco Technology brings a new way of operating the projector lamp system. Intuitive to use and environmentally friendly, this technology brings together the finest picture quality and maximum energy saving. With the SmartEco Technology, students and teachers get to make the most out of their classroom experience – and schools reduce the total cost of ownership with extended lamp life and lowered maintenance needs.
Eco Blank Mode
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by up to 70%.
Full Power On
100% Lamp Power
Attention on the Projection Screen
Eco Blank Mode On
30% Lamp Power at the Lowest
Attention on the Class Instructor
SmartEco Mode
The SmartEco mode is designed to use only the exact amount of lamp power a projector needs to deliver the best contrast performance. With this feature, schools get to provide students and teachers uncompromised projection quality and reduce the total cost of ownership by extending the lamp life and lowering power consumption.
Normal Mode
296W Projector Power Consumption by Average
SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average
No Source Detected Mode
There will be times when a projector is turned on without a display source, such as a classroom PC or notebook. To avoid a projector from running with full lamp power, BenQ created the No Source Detected Mode to lower the projector lamp brightness to 30% after the projector has remained unconnected to a display source for more than three minutes.
Source Detected
100% Lamp Power
No Source Detected
30% Lamp Power
Hassle-Free Projector Maintenance
Upper Lamp Door for Easy Lamp Access
The upper lamp door is designed for IT managers to replace the projector lamp safely and quickly. Should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.
Security Bar to Discourage Theft
A security bar is designed to enable projector managers to secure their classroom projectors either to a ceiling mount or an audiovisual equipment cart, adding extra “physical” security to a classroom projector. BenQ’s education projectors are each built with a security bar to help discourage a good number of opportunistic thieves.

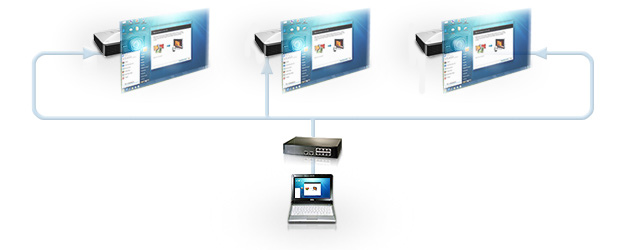

LAN Control with Crestron and PJ-Link
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MW712 offers seamless support for the Crestron and PJ-Link LAN Control system.

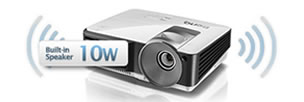

The Perfect Sound Solution
Built-in 10W Big Audio Power
The MW712 features one built-in 10W speaker to help enrich every lesson with top quality audio performances. These speakers are sealed and secured within the projector housing by BenQ’s anti-shake design to ensure projection stability at all times.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
- Arsenic-free optical glass
- BFR/PVC-free casing plastics
- PVC-free plastic packaging
- Verre optique exempt d'arsenic
- Boitier de plastique exempt de BFR/PVC
- Emballage de plastique exempt de PVC
Specification
| Projection System |
DLP |
| Native Resolution |
WXGA (1280 x 800) |
| Brightness* |
3200 ANSI Lumens |
| Contrast Ratio |
10000:1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.55-3.06, f=21-25.6mm |
| Aspect Ratio |
Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio |
1.46-1.60 (62.25@ 2m) |
| Image Size (Diagonal) |
30~300 |
| Zoom Ratio |
1.2:1 |
| Lamp (Normal/Economic Mode)* |
230W, 3500/5000 hours (up to 6500 hours under SmartEco mode) |
| Keystone Adjustment |
1D, Vertical 40 degrees |
| Projection Offset |
120%5% |
| Resolution Support |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Horizontal Frequency |
31K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Computer Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Interface |
Computer in (D-sub 15pin) x 2 (Share with Component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x
Audio in (Mini Jack) x 2
Audio L/R in (RCA) x 2
Audio out (Mini Jack) x 1
Speaker 10W x 1
LAN (RJ45) x 1
USB (Type B) x1 (Download & page/down)
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Top) |
| Dimensions(W x H x D) |
302x124x232.7 mm |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.45 kg |
| Audible Noise |
29/27 dBA (Normal/Economic mode) |
| Power Supply |
AC100 to 240 V, 50 to 60 Hz |
| Power Consumption |
285W(Typical), Standby<1W |
| On-Screen Display Languages |
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Ceilling Mount
3D Glasses
Carry bag |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA,
PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
*Please click to know more details about 3D Support and Compatibility. |
