Gigabyte GA-H61N-USB3 Motherboard

GIGABYTE Super4

Super Safe

All GIGABYTE Super4 motherboards boast specific features that guard against system malfunction and ensure extended system longevity, including GIGABYTE DualBIOS to ensure that you never experience system failure due to BIOS corruption. Additionally, each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer. All Super4 motherboards also use Japanese made capacitors that guarantee system longevity with a minimum 50,000 hrs lifespan.

• DualBIOS 3TB+ HDD Support (Hybrid EFI Technology)
• One Fuse per USB Port
• 50,000 hr. Japanese Solid Capacitors

DualBIOS 3TB+ HDD Support (Hybrid EFI Technology)

Hybrid EFI Technology combines the benefits of GIGABYTE's mature BIOS platform including stability and compatibility with 3rd party products with 3TB+ HDD support from EFI technology, allowing GIGABYTE to offer the best of both worlds through a quick and easy BIOS update using GIGABYTE's @BIOS utility that is freely available from the GIGABYTE website.
GIGABYTE DualBIOS is a patented technology that automatically recovers BIOS data when the main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. In addition, GIGABYTE DualBIOS now supports 3TB+ (terabyte) hard drive booting without the need for partitioning, and enables more data storage on a single hard drive.

50,000 Hours Japanese Solid Capacitors

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


* 50000 hours of work time is calculated at 85 ambient temperature.

Super Speed

GIGABYTE Super Speed ensures that you're always on the cusp of PC performance, data transfer and device charging speeds. An integrated overclocking chip coupled with GIGABYTE's unique Ultra Durable 2 power technology, makes sure that your Intel  Core processor is running at optimal performance levels. Additionally, GIGABYTE 3x USB power means better device compatibility and faster charging on USB connected devices like portable storage devices without needing to use two USB ports. The additional power provided by 3 x USB allows iPad, iPhone and iPod devices to charge up to 40% faster compared to standard USB implementations, while On/Off charge allows fast device charging even when your PC is on standby or turned off.

• Overclocking IC
• Ultra Durable 2
• 3 x USB Power Boost + On/Off Charge

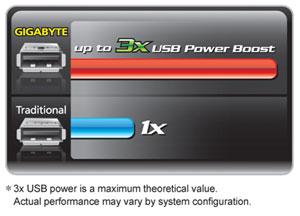

3x USB Power Boost

GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTEs unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.

Super Savings

All GIGABYTE Super4 motherboards are equipped with the very best quality components that ensure that you PC is running at maximum power efficiency. Lower RDS(on) MOSFETs reduce energy wastage through unnecessary residual heat dissipation, while ferrite chokes reduce overall core energy loss with better energy storage and regulation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

• Lower RDS(on) MOSFETs
• Ferrite Core Chokes
• Lower CPU Zone Temperature
• High Power-Efficiency

Super Sound

As the HD multimedia revolution continues to gain momentum, so too must hardware standards in audio quality. All GIGABYTE Super4 motherboards offer excellent 7.1 surround sound audio backed by a proprietary converter that which is able to achieve a 108dB noise ratio (SNR) playback quality. This means that users will enjoy a better audio experience with lower levels of noise and hiss when enjoying the latest HD content.

• 108dB HD Audio

108dB Signal-to-Noise ratio playback

GIGABYTE strongly believes that in 2011, HD audio playback is a standard specification, and as such, we have made Blu-ray audio playback a standard for all of our motherboards.
All of GIGABYTE's 2011 motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.

New 100% Hardware VRD 12 Compliant CPU Power Design

GIGABYTE 6 series motherboards incorporate an Intel  approved Intersil PWM controller that is VRD 12 (Voltage Regulator Down) compliant. This means that it offers new features that include SerialVID (SVID) which transfers power management information between the processor and voltage regulator controller, allowing more robust and efficient signaling control between the CPU and PWM controller hence, delivering a more energy efficient platform.

Intel  HD Graphics Core 2000/3000 Enhanced Visual Features

Intel  Quick Sync Video
Intel  Quick Sync Video provides breakthrough media processing for incredibly fast editing and sharing.

Intel  InTru 3D
2nd Generation Intel  Core Processors offer an outstanding Blu-Ray Stereo 3D experience in full high definition resolution (1080p) with HDMI 1.4.

Intel  Advanced Vector Extensions (AVX)
Increases the performance of Accelerated Floating Point and Vector Computing Intensive Applications with minimal power gains.

GIGABYTE Touch BIOS (Patent Pending)

An Innovative New Way to Modify BIOS Settings

Navigating through the BIOS to change system settings can be a daunting task for users not familiar with control Ffunctions and mouse-less navigation. While some EFI BIOS try to address this with a mouse friendly environment, many implementations still lack a certain ease-of-use necessary for most people. With GIGABYTE Touch BIOS, GIGABYTE engineers have completely re-imagined how users can interact with their BIOS, allowing for a more intuitive user experience. In fact, with a touch screen monitor, GIGABYTE Touch BIOS is as easy to use as most apps on your iPhone.

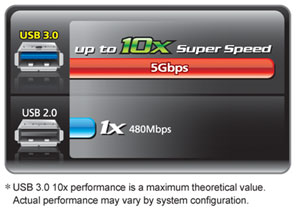

SuperSpeed USB 3.0

GIGABYTE motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.

HDMI-The Next Generation Multimedia Interface

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

DVI Support

DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).

Smart 6 Smarter PC system Management

	Smart QuickBoot Speeds up booting times.		Smart DualBIOS Smart personal reminder of PC passwords.
	Smart QuickBoost* One-click Overclocking		Smart Recorder Your PC's Watch Dog
	Smart Recovery 2 Allows you to go back in time on your PC and retrieve lost files		Smart TimeLock Time Controller for your PC.

* Whether SMART QuickBoost is supported depends on the motherboard model.

AutoGreen- Greening your PC via Bluetooth cellphone

AutoGreen technology can automatically save power by simply putting your PC in a state of sleep when your Bluetooth  cell phone is out of range of your computer.
Note: GIGABYTE motherboards do not include a Bluetooth  receiver; the addition of a 3rd party Bluetooth receiver is required.

ErP Lot 6 support

The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
