All stock codes associated to this product
SS1000XP, SS-1000XP, PSUSEAXP1000WPL
Full Modular Design (DC to DC)
The Platinum Series features a high-tech LLC/full-bridge circuit topology with a unique integrated DC Connector Panel with an embedded Voltage Regulator Module. This design contributes to a near-perfect DC-to-DC conversion that optimizeefficiency by reducing current loss and impedance.

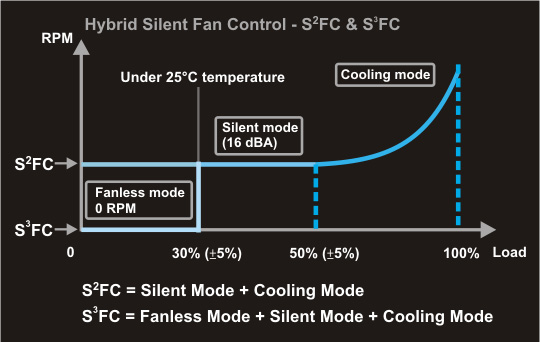

Seasonic Hybrid Silent Fan Control
An industry first, advanced 3 phased (Fanless, Silent and Cooling Mode)thermal control balances between silence and cooling. In addition, a selector switch is provided to allow you to select between the Seasonic S2FC control, without fanless mode or the S3FC fan control, with fanless mode.
80+ Platinum
The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF.
Special Features -
1. 80PLUS Platinum Certified Super High Efficiency
2. 7 Years Warranty
3. DC Connector Panel with Integrated VRM [Voltage Regulator Module]
4. DC to DC Converter Design
5. Active Power Factor Correction [99% PF Typical]
6. Conductive Polymer Aluminum Solid Electrolytic Capacitors
7. High Reliability 105 Japanese Grade A Capacitors
8. High Current Gold Plated Terminals
9. Tight Voltage Regulation [2%]
10. High +12V Output
11. Dual Sided PCB Layout
12. Seasonic Patented Hybrid Silent Fan Control
13. Sanyo Denki San Ace Silent Fan
14. Ultra Ventilation [Honeycomb Structure]
15. Full Modular Cabling Design
16. Multi-GPU Technologies Supported
17. All-in-One DC Cabling Design
18. Easy Swap Connector
19. Universal AC Input [Full Range]
Product Information -
1. Dimension: W190 x L150 x H86 mm

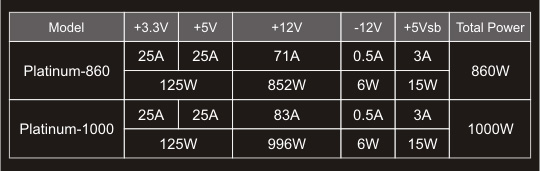

2. AC input & DC output voltages (Full Rang: 100-240V (Max 90-264V), 13-6.5A, 50/60Hz)
Model: Platinum-860/1000 (SS-860XP & SS-1000XP Active PFC F3)

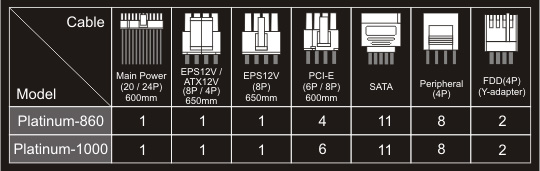

3. Wire Configuration
