PCIE5456AL, PCIE-5456AL
SUNIX SER5456AL, PCI Express serial communication boards meet the PCI Express Base Specification Revision 1.1. It is compatible with PCI Express x1, x2, x4, x8 and x16 lane Bus allowing it to be installed in any slim size PC-based system with low profile bracket structure. The majorities of todays motherboards is not equipped with serial ports or only have one serial port. With SUNIX PCI Express serial board, users can add 4 serial ports to their system, allowing them to use serial devices further. SUNIX SER5456AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features
- Expands 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps.
- High speed SUN1999 16C950 compatible UART controller on-board.
- Designed to meet PCI Express Base Specification Revision 1.1.
- Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, an DOS.
DESCRIPTION
Product Description

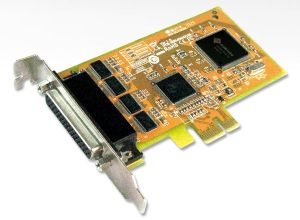

4-port RS-232 PCI Express Low Profile Serial Board
SERIAL COMMUNICATION
Interface
RS-232
Controller
SUNIX SUN1999 (16C950 UART Compatible)
Bus
PCI Express one lane (x1)
No. of Port
4-port
IRQ & IO
Assigned by System
FIFO
128 byte (Hardware)
Signal
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate
50 bps to 115.2 Kbps
Data bit
5,6,7,8
Stop bit
1,1.5,2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, Xon/Xoff, RTS/CTS
Protection
15KV ESD protection for each signal Human Body Model (HBM)
15KV IEC1000-4-2 Air Gap Discharge
8KV IEC1000-4-2 Contact Discharge
PCB connector
DB44 Female
DRIVER SUPPORT
Microsoft Client
Windows XP/Vista/7 (X86/X64)
Microsoft Server
Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded
Windows CE4.2/5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7
Linux
Linux 2.4.x / 2.6.x
DOS
DOS
FreeBSD
FreeBSD 5.3~5.5 / 6.0~6.4
QNX
QNX 6.3.2/6.4.0
* IBM OS/2
WARP 3/WARP 4
* SCO UnixWare
UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems
Solaris 10
Note : * Supported by special inquiry.
REGULATORY APPROVALS
Hardware
EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software
Microsoft WHQL Windows
Microsoft Client: XP/Vista/7 (X86/X64)
Microsoft Server: 2000/2003/2008 (X86/X64)
ENVIRONMENT
Operation Temperature
0 to 60C (32 to 140F)
Operation Humidity
5 to 95% RH
Storage Temperature
-20 to 85C (-4 to 185F)
DIMENSION
PCB Dimension
109 x 67 mm
Bracket
Low Profile 80 mm
Bracket Space
1
