All stock codes associated to this product
PCV353B, PC-V353B, LLPCV353B, LL-PC-V353B

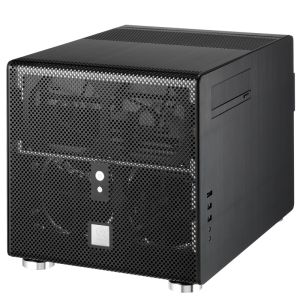

PC-V353
With USB3.0
Features
Thermal-Flow
The PC-V353 is designed to be a silent case.
To use lots vents instead of fans to cool components.
Slide Out Motherboard Tray
Motherboard tray can be easy slide out of the chassis, user don't need to work in a narrow space inside the case.
Anti-Vibration Springs
Simple installation
There are a jointer for join the side panel to the chassis, for easy removment and attachment of the side panel.
Two Hard Disk Drive Cage
Supports two 3.5" and two 2.5" HDDs, held in place by thumb screws with rubber suspension.
USB 3.0 Multi-media I/O ports
Users can easily access USB 3.0, e-SATA and HD Audio ports.
(with 20pin connector) Users can easily access USB 3.0, e-SATA and HD Audio ports.
Maximum Video Card Size
300m
High Thermal Performance
A washable air filter on the front panel protects dust from entering your system.

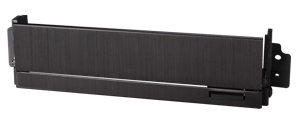

Vented PCI Bracket
Side Panel fixing bolt
Case stand
5.25" Optical Drive Bezel
Anti-vibration rubber padding for PSU
Specification
Model
PC-V353
Case Type
Desktop / HTPC
Dimensions
(W) 288mm x (H) 286mm x (D) 397mm
Front bezel Material
Aluminum
Color
Black / Silver
Side Panel
Aluminum
Body Material
Aluminum
Net Weight
4.13 KG
5.25" drive bay (External)
1
3.5" drive bay (External)
None
HDD bay
3.5” HDD x 2 / 2.5” HDD x 2
Expansion Slot
4
Motherboard
Micro ATX / Mini ITX
System Fan (Front)
None
System Fan (Top)
None
System Fan (Rear)
None
I/O Ports
USB 3.0 x 2 / e-SATA x 1 / HD Audio
Maximum Compatibility
VGA Card length: 300mm
PSU length: 140mm
CPU cooler height: 105mm
Package Dimensions
(W) mm x (H) mm x (D) mm
Gross Weight
KG
