Full aluminum built cooling body constructed to fit five drives within a three (5.25) bay fitting, the MB455 Series follows the tradition of industrial systems' needs for stability, durability, toughness and high sensitivities for mass storage operating conditions. It's equipped with a hot swappable fan that may be detached if confined by depth limitations when integrated, or if replacement is necessary. Our removable fan requires no tools or wiring, simply swap with a new fan and back to operation! It is space saving and user friendly for industrialized system solutions.

Features
  • 5 in 3 RAID back plane module.
  • Fits three 3.5 SATA I / II / III hard drive fully supports Hot-Swap function.
  • Compact and space saving for multiple drives fit (Five drives within three 5.25 bay fitting).
  • Internal drive security, exchangeability, expandability and maintenance capabilities.
  • Durable aluminum body for excellent heat dissipation with stylish outlook.
  • Detachable 80mm ball bearing rear cooling fan for easy maintenance.
  • Advanced drive monitoring system built internally w/ visual & audio indicators

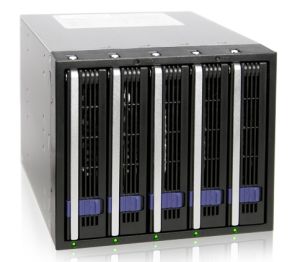

ICY DOCK MB455SPF-B 5 in 3 SATA I, II & III Hot-Swap Internal Backplane Raid Cage Module
Model Number :
MB455SPF-B
Color :
Black
Host Interface :
7 pin SATA
Drive Fit :
5 x 3.5 SATA 1.5 / 3 / 6 Gbit/s hard drive
Drive Bay :
3 x 5.25"
Transfer Rate :
Up to 6Gb/sec. (depending on hard drive speed)
Insert& Extract connection Via :
Direct SATA hard drive connection
Structure :
Aluminum body w/ partial plastic
Drive Cooling :
Detachable rear outtake fan w/ aluminum heat dispersion
Alarm Indication :
Auto & Visual
LED Indication :
Drive activity/overheat/failure, Fan working/failure status
LED Display Color :
Green : Device Power ; Amber : Drive activity/overheat/failure ; Red : Drive failure
Dimension (L x W x H) :
( w/ fan) 220.0 x 147.0 x 127.0 mm
(w/o fan) 180.0 x 147.0 x 127.0 mm
Weight :
3.60 lbs.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Icydock) web site.
