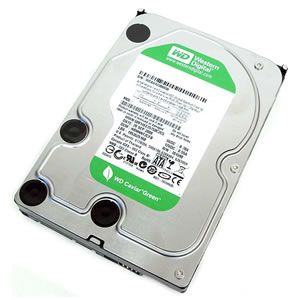

WD Caviar Green SATA drives now deliver up to a massive 3 TB's of storage on a single drive.
SATA hard drives are now capable of storing up to 3 TB of data on a single hard drive. WD is leading the way in the industry, providing you with solutions for implementing 2.19 TB and larger drives.
Perfect for external drives.
External drive manufacturers can eliminate the need for a fan in a high-capacity product by utilizing the cool and quiet operation of WDCaviar Green hard drives.
Reduced power consumption.
Reduced power consumption makes it possible to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.
IntelliSeek.
Calculates optimum seek speeds to lower power consumption, noise and vibration.
IntelliPower.
A fine-tuned balance of spin speed, transfer rate and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, WD Caviar Green drives consume less current during startup allowing lower peak loads on systems as they are booted.
NoTouch ramp load technology.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Cool and quiet.
WD GreenPower Technology yields lower operating temperatures for increased reliability and low acoustics perfect for ultra-quiet PCs and external drives.
Advanced Format (AF) .
Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities. (RX, RS and RSDTL models only)
Ideal for:
PCs, external storage and other devices that require lower power consumption and cool, quiet operation.
Desktop / Consumer RAID Environments - WD Caviar Green Hard Drives are tested and recommended for use in consumer-type RAID applications. (RAID-0 / RAID-1)*
Did you know...
It's easy to install an internal hard drive in your computer.
Specifications
| Performance Specifications |
| Rotational Speed |
IntelliPower * |
| Buffer Size |
64 MB |
| Transfer Rates |
| Buffer To Host (Serial ATA) |
6 Gb/s (Max) |
| Physical Specifications |
| Formatted Capacity |
1,000,204 MB |
| Capacity |
1 TB |
| Interface |
SATA 6 Gb/s |
| User Sectors Per Drive |
1,953,525,168 |
| Physical Dimensions |
| English |
| Height |
1.028 Inches |
| Depth |
5.787 Inches |
| Width |
4.00 Inches |
| Weight |
0.99 Pounds |
| Metric |
| Height |
26.1 mm |
| Depth |
147 mm |
| Width |
101.6 mm |
| Weight |
0.45 kg |
| Environmental Specifications |
 |
| Shock |
| Operating Shock (Read) |
30G, 2 ms |
| Non-operating Shock |
350G, 1 ms |
| Acoustics |
| Idle Mode |
21 dBA (average) |
| Seek Mode 0 |
22 dBA (average) |
| Seek Mode 3 |
22 dBA (average) |
| Temperature (English) |
| Operating |
32 F to 140 F |
| Non-operating |
-40 F to 158 F |
| Temperature (Metric) |
| Operating |
-0 C to 60 C |
| Non-operating |
-40 C to 70 C |
| Electrical Specifications |
| Current Requirements |
| 12 VDC |
| Read/Write |
1.10 A |
| Power Dissipation |
 Read/Write |
3.60 Watts |
| Idle |
2.10 Watts |
| Standby |
0.40 Watts |
| Sleep |
0.40 Watts |
