All stock codes associated to this product
CB-500Ap, CB500Ap, BR16750
5 Megapixel Cube Network Camera
CB-500A Series
- Most Intelligent, Compact and Affordable 5M Camera
- HDTV Quality (Full HD 1080p @ 30fps Streaming)
- Unique Design for Low Lux Application (1/2.5" Sensor)
- Support 802.11a/b/g/n Dual Band Wireless Connectivity
- WPS Supported for Easy Wireless Network Setup(WCB-500Ap, WCB-502Ap)
- Support 3G/ 4G (WiMAX/LTE) Wireless Connectivity
- Interchangeable CS Mount Lens
- Edge Recording/ Micro SD slot
- PoE/ Two-way Audio/ PIR/ Illumination LED/ DIDO/ Privacy button
- The 5M resolution of 5M camera will be supported in the near future

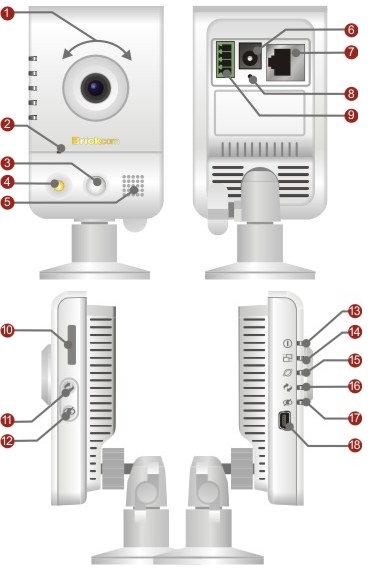

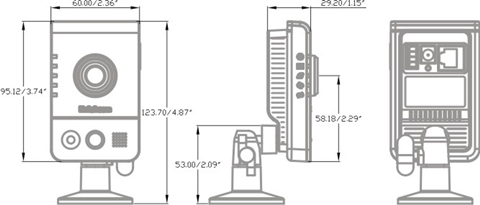

Photo Indication & Dimension Diagram
 |
Adjustable focal Lens |
 |
WPS button |
 |
Built-in Microphone |
 |
Privacy button |
 |
PIR |
 |
Power LED |
 |
Illumination LED |
 |
Status LED |
 |
Speaker |
 |
Internet LED |
 |
Power Connector |
 |
WPS LED |
 |
Ethernet RJ45 Socket |
 |
Privacy LED |
 |
Reset Button |
 |
USB Port for 3G/4G |
 |
DIDO Terminal I/O Connector |
 |
Micro SD/SDHC slot |
Features
HDTV grade superior video quality
The Brickcom CB-500A Series provides full frame rate video in resolutions up to 5 megapixel including HDTV (Full HD 1080p @ 30 fps streaming). At the same time, the CB-500A Series supports H.264, Motion JPEG and MPEG-4 for multiple streaming to meet different quality need. The CB-500A Series use a 1/2.5" Sensor, offers a reliable video even in a low lux application (0.5 Lux @ F1.5/ 0.8Lux @ F1.8). Brickcom understands the importance of the video quality, and develop this CB-500A Series providing clear, sharper video and color fidelity.
Smart design & intelligent surveillance software features
The CB-500A Series is designed with powerful software features to maximize the camera capabilities and adapt variable environments to provide optimized video quality. The intelligent multi-profile supports 5 profiles, allows users being able to configure more parameter of image. With this feature, the user has the ability to set various sensor and lens attributes in a profile, including the brightness, contrast, sharpness, saturation, exposure, de-noise, white balance etc. Furthermore, the profiles can be switched automatically following the user-defined schedule. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.
Alarm capability & edge recording
The CB-500A Series is designed with a PIR sensor for detecting movement even in dark and a white LED for illumination the scene at an event. Moreover, it supports DI/DO for external alarm device. By integrating with the Brickcom BP-1000 power battery pack, the CB-500A Series can supports the edge recording, the camera can continue recording and store the data to the SD/SDHC card when the network or power connection is interrupted.
Easy & Flexible installation
The 5M Cube camera Series offers a wide variety of data transmission options to meet different needs. The CB-500A Series support 802.11 a/b/g/n Dual Band WiFi or 3G/ 4G (WiMAX/ LTE) wireless connectivity. With these models, users can utilize WiFi and 3G networks in areas where cabling installation would be costly or difficult. The wireless cube camera also supports WPS (WiFi protected setup) for easy and secure wireless network connections. Moreover, the CB-500A and CB-502A models support PoE (Power over Ethernet) which allows the cameras to transmit data and receive power through the same cable.
