- Compliance with Intel ATX 12V 2.3 & SSI EPS 12V 2.92 standards.

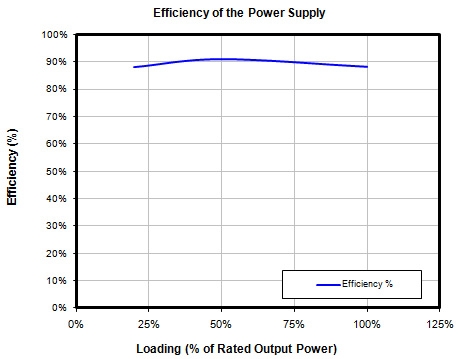

- extreme efficiency PSU series with 87-92% efficiency @ 20-100% load to cut down electric cost. 80 PLUS Gold certified extreme efficiency PSU series with 87-92% efficiency @ 20-100% load to cut down electric cost.
- 24/7 @ 50C: Guaranteed to deliver 850W continuous power.
- Pure aesthetic design with uncompromising performance.
- Proprietary dual ball bearing 14cm flower-shape fan enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions.
- 100% 105C (221F) Japanese made electrolytic capacitors: the foundation of a robust and reliable power source even under the harshest operating environment.
- Double-forward switching circuitry: offers low power loss and high reliability.
- Unparalleled DC to DC converter provides highest efficiency, most stable performance, and perfect regulation.
- 3oz PCB design reduces heat generation and allows greater efficiency.
- Robust & dedicated +12V output: comes with single +12V rail design providing up to 71A.
- FanDelayCool Technology allows 14cm fan to continue to operate 15-30 sec after system shuts-down to ensure all components are properly cooled.
- Multi-GPU ready: 2 x PCI-E 8pin & 2 x PCI-E 6pin for PCI-Express graphic cards.
- Auto switching circuitry for universal AC input from 90-264V.
- Active Power Factor Correction (PFC) with PF value of 0.95 at full load.
- High reliability: MTBF>120,000 hours.
- DIMENSION: 5.9(W) x 3.4(H) x 7.1 (L);150mm(W) x 86mm(H) x 180mm(L)
- Built-in industry grade protections : Over Current, Over Power, Over Voltage, Under Voltage and Short-Circuit protection. Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified.
Technology Features

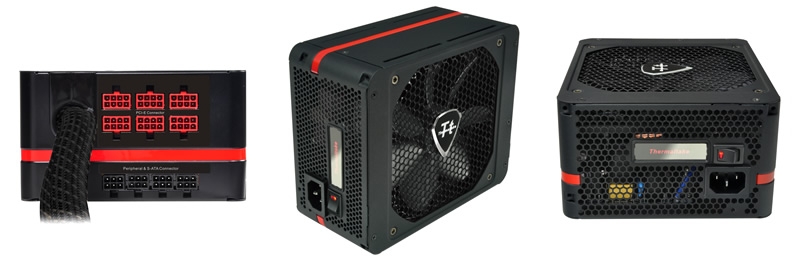

Pure Aesthetic Outer Chassis
The Toughpower Grand series' unparalleled aesthetic exterior design has set itself above other PSUs currently available on the market. The Toughpower Grand series certainly is one of Thermaltake's innovate hallmarks.
Proprietary flower shape 14cm fan
The unique fan blade shape increases airflow and reduce overall noise level.
The patented flower-shape fan edge reduces up to 3% of total noise output.
Enables longer lifespan and lowers overall noise output by dramatically reducing bearing frictions

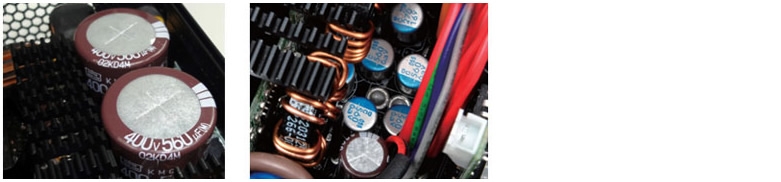

High Quality Japanese Made Electrolytic & Solid Capacitors
Toughpower Grand features 105C /221F Japanese made electrolytic capacitors & solid State capacitors with low ESR, which greatly improves the durability and offers the highest stability and reliability.

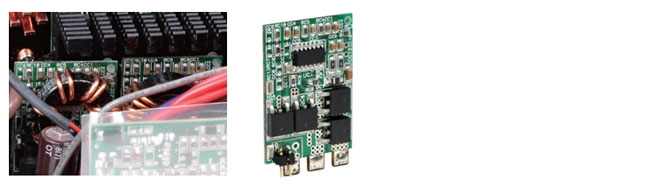

DC-DC Converter & Double Forward Circuit
Unparalleled DC to DC converters for 3.3V & 5V outputs reaches high efficiency
Robust & Dedicated +12V Output
Powerful single +12V rail to provide the best compatibility for your PC.
Components protected by Fan Delay Cool
keeps the 14cm PSU cooling fan running for 15-30 seconds after system shutdown to dissipate the remaining system heat, thereby prolonging system lifetime.

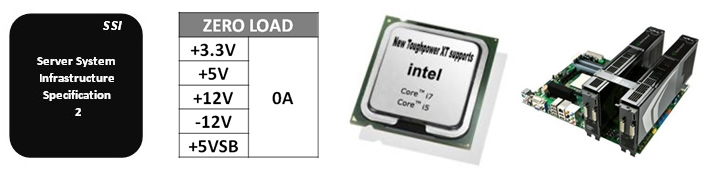

Hybrid SLI / CROSS FIRE X & Intel C6 State Mode Support
For best compatibility
For C6 state CPU & Hybrid GPU mode
C6 State CPU Mode
CPU load range from Max. to only 1W.
Nvidia & ATI/AMD multi graphic cards configuration
Hybrid mode will cause graphic cards load range from Max. to only 1W. Toughpower Grand series are able to maintain an ultra tight DC regulation to support the C6 state CPU mode and the hybrid graphic card power saving mode by its ZERO LOAD (0W) Design.
12V Rail Main Connector

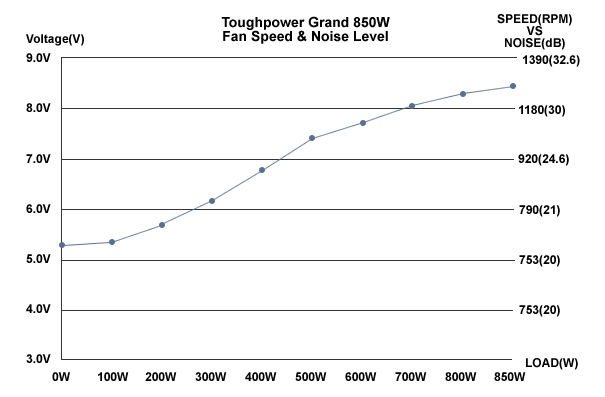

Fan Speed & Noise Level
Eco design
80 Plus Gold Certified
Toughpower Grand saves energy through its high energy efficiency of over 90% and is 80 PLUS Gold certified
ErP Ready
Toughpower Grand fulfils the EU guideline for ErP (Energy-related Products) that are scheduled to apply starting in 2010.
Supports Energy Star 5.0* energy standard:
Toughpower Grand is suitable for use in Energy Star-compatible computers.
Supports Intel Deep Power Down C6 Status:
Toughpower Grand helps your PC system operate more power efficiently.
Corresponds to the EU directives on WEEE and RoHS:
Thermaltake considers its full impact on the environment during manufacturing and maintains green facilities to ensure Toughpower Grand meets WEEE & RoHS requirements.
Output Specifications

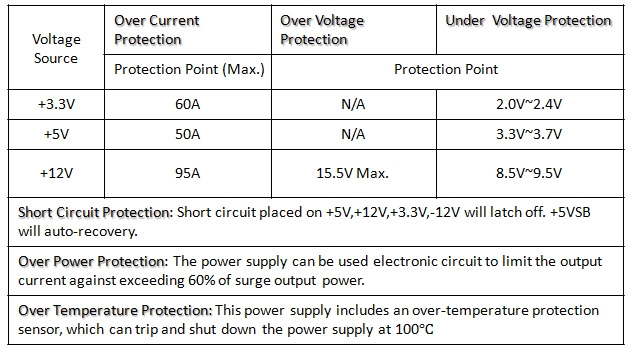

Total Protection

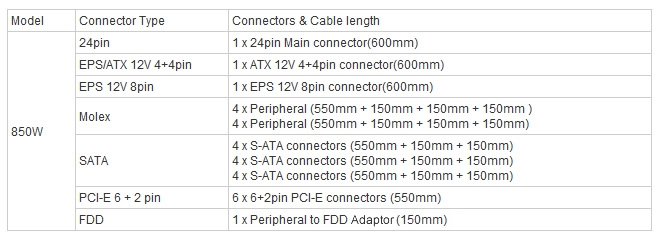

Total Output Connector
Main Power
Connector (24Pin) x 1
EPS/ATX 12V (4+4Pin) x 1
EPS 12V Connector (8Pin) x 1
PCI-E Connector (6+2Pin) x 6
SATA connector (5Pin) x 12
Peripheral Connector (4Pin) x 8
FDD Adaptor x 1

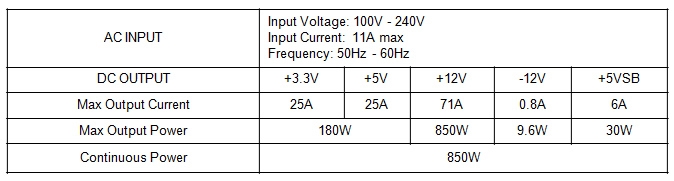

Output Table

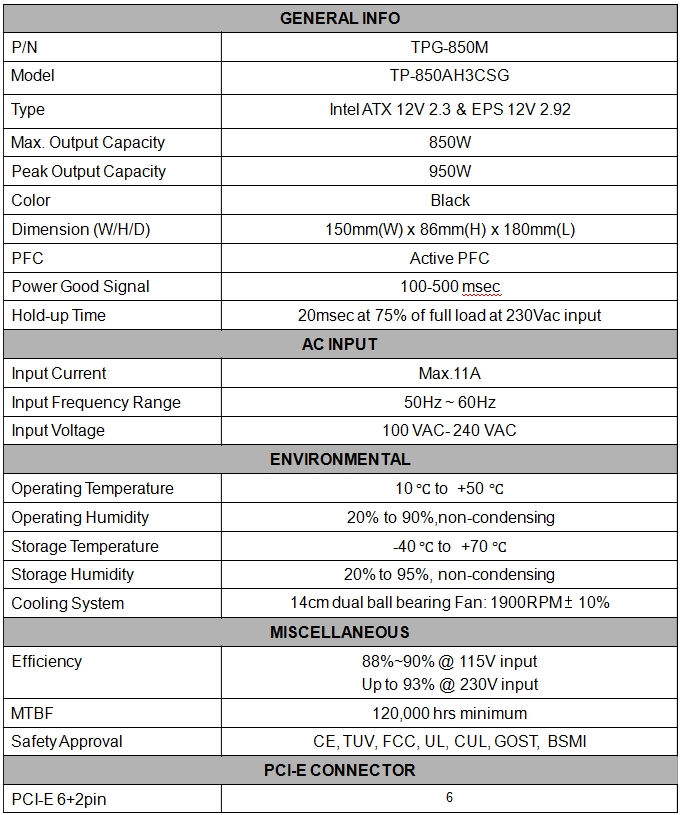

General information
Specifications:
| GENERAL: |
|
| - Wattage |
850 Watts |
| - Fan |
140mm fan
1900RPM 10%
99.6 CFM
|
| - Efficiency |
up to 93% |
| - PFC |
Active PFC |
| - Hold-Up Time |
20 ms at 75% of full load @ 230 VAC input |
| - Switches |
ATX Logic on-off additional power rocker switch (with light indicator) |
| - Motherboard Connectors |
24-pin Main Connector
8-pin EPS Connector
4+4-pin EPS Connector
|
| - Power Good Signal |
100 - 500 ms |
| - Form Factor |
ATX 12V 2.3 & SSI EPS 12V 2.92 |
| - Dimension |
7.1 x 5.9 x 3.4 inch (L)x(W)x(H)
180 x 150 x 86 mm (L)x(W)x(H)
|
| - Warranty |
7Years |
| - Certifications |
ATI CrossFireX Certified
NVIDIA SLI Certified
80PLUSGOLD Certified
|
| AC INPUT: |
|
| - Input Voltage |
100 VAC ~ 240 VAC |
| - Input Current |
Max. 11A |
| - Input Frequency Range |
50Hz ~ 60Hz |
| - Inrush Current |
|
| - Operating Range |
|
| - MTBF |
120,000 |
| - RFI / EMI |
CE, TUV, FCC, UL, CUL, GOST, BSMI |
| DC OUTPUT: |
|
| - Output Table |
|
| ENVIRONMENT: |
|
| - Operating Temperature |
10 to 50 |
| - Storage Temperature |
-40 to 70 |
| - Operating Humidity |
20% to 90%, non-condensing |
| - Storage Humidity |
20% to 95%, non-condensing |
| PROTECTION: |
|
| - Over Voltage Protection |
Yes |
| - Over Current Protection |
Yes |
| - Over Load Protection |
Yes |
| - Over Termperature Protection |
Yes |
| - Under Voltage Protection |
Yes |
| - Short Circuit Protection |
Yes |
