All stock codes associated to this product
VO300A1W2N, CASEVO300A1W2N, CASE-VO300A1W2N

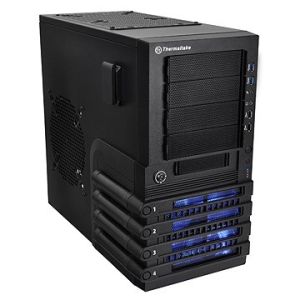

Level 10 GTS
Feature
- FrontSpeed 2: USB 3.0 SuperSpeed
- PitStop 4: EasySwap HDD bays

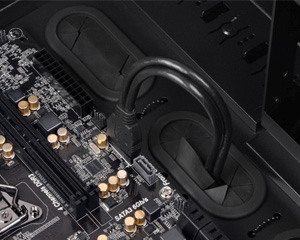

- CableClear: Advanced cable management
- S.S.S.: Smart Lock Security System
- Combat Headset Holder
- Bottom-placed PSU design for easy installation
Unique Design

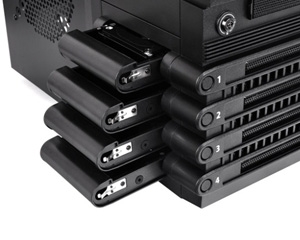

Unique Easy Swap HDD bays

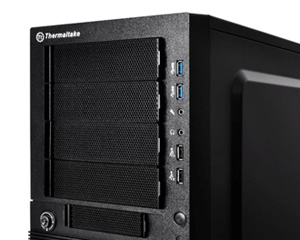

Easy access I/O ports

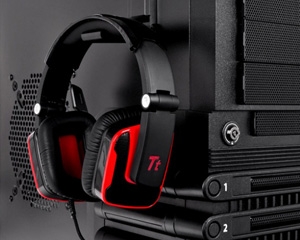

Headset holder
Internal USB 3.0 Connection

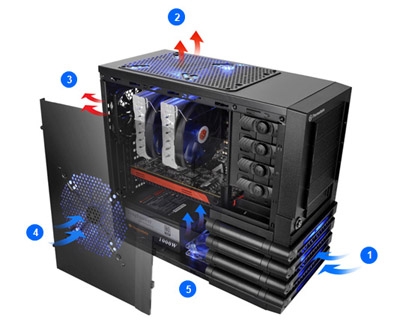

The Cooling System - Air Cooling
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan (600~800rpm, 13~15dBA)
CPU Air Cooling System
2. Top (exhaust) : 200 x 200 x 30 mm fan x 1 or 120 x 120 x 25 mm fan x 2 (Optional)
3. Rear (exhaust) : 120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) : 200 x 200 x 30 mm (Optional)
5. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)

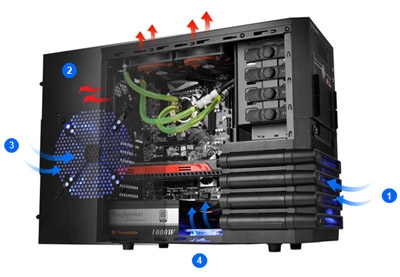

The Cooling System Liquid Cooling (Optional)
HDD Air Cooling System
1. Front (intake) : 200 x 200 x 20 mm Blue LED fan (600~800rpm, 13~15dBA)
CPU Air Cooling System
2.Rear (exhaust) : 120 x 120 x 25 mm Turbo Fan (1000rpm,16dBA)
VGA Air Cooling System
3.Side (intake) : 200 x 200 x 30 mm (Optional)
4.Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
Specifications:
| Model |
VO300A1W2N |
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
462 x 233 x 510 mm
(18.2 x 9.2 x 20.1 inch)
|
| Net Weight |
6.8Kg / 15.1lb |
| Color |
Exterior & Interior : Black |
| Material |
SECC |
| Cooling System |
Front (intake) :
200 x 200 x 20 mm Blue LED fan x 1 (600~800rpm, 13~15dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm,16dBA)
Top (exhaust) : (optional)
200 x 200 x 30 mm fan x 1 or 120 x 120 x 25 mm fan x 2
Side (intake) : (optional)
200 x 200 x 30 mm fan or 140 x 140 x 25 mm fan x 1
Bottom (Intake) : (optional)
120 x 120 x 25 mm
|
| Drive Bays |
- Accessible :4 x 5.25, 1 x 3.5
- Hidden :1 x 3.5 or 2.5
- HDD Easy swap :4 x 3.5 or 2.5 |
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
|
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Other |
CPU cooler height limitation: 175mm
VGA length limitation: 315mm
|
