| Overview |
Function |
Print, Scan, Copy, Fax |
| Print |
Speed (Mono) |
Up to 28ppm in A4 (29ppm in Letter) |
| First Print Out Time (Mono) |
Less than 8.5 seconds (From Ready Mode) |
| Resolution |
Up to 1,200 x 1,200 dpi Effective Output |
| Emulation |
PCL6 / PCL5e / SPL |

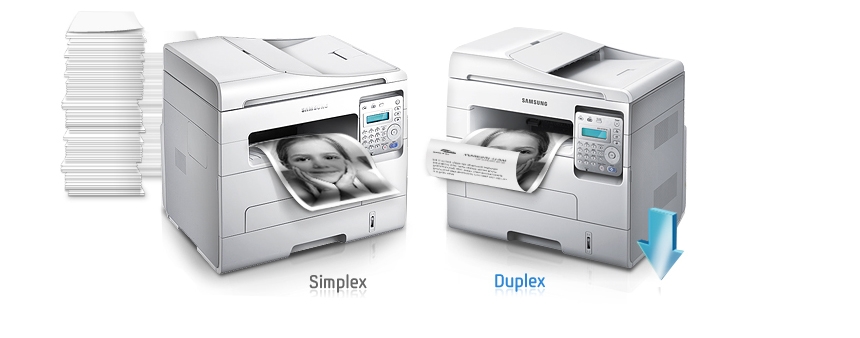

| Duplex |
Built-in |
| Copy |
Speed |
Up to 28cpm in A4 (29cpm in Letter) |
| First Copy Out Time (Mono) |
Less than 15 seconds (ADF) / Less than 14 seconds (Platen) |
| Resolution |
Up to 1,200 x 1,200 dpi Effective Output |
| Zoom Rate |
25 - 400% (ADF, Platen) |
| Multi Copy |
1 - 99 pages |
| Duplex Copy |
Standard (1:1, 1:2) |
| Copy Features |
ID Copy / 2-up / 4-up / Poster Copy / Clone Copy / Collation Copy / Auto-fit |
| Scan |
Compatibility |
TWAIN Standard / WIA Standard |
| Method |
Colour CIS |
| Resolution (Optical) |
Up to 1,200 x 1,200 dpi |
| Resolution (Enhanced) |
Up to 4,800 x 4,800 dpi |
| Scan to |
Client (PC) |
| FAX |
Compatibility |
ITU-T G3 / ECM |
| Modem Speed |
33.6Kbps |
| Resolution |
Up to 300 x 300 dpi |
| Memory |
8MB (600 pages) |
| Auto Dial |
200 Locations Speed dial |
| Fax Feature |
On Hook Dial / Auto Redial / Last Number Redial / Auto Reduction / Multi-send / Delayed Send / Fax Forwarding / Broadcasting up to 209 locations |
| Paper Handling |
Input Capacity and Types |
250-sheet Cassette / 1-sheet Manual Tray |
| Output Capacity and Type |
120-sheet Face Down / 1-sheet Face Up |
| Capacity |
40-sheet ADF |
| Media Size |
Standard Tray: A4 / A5 / Letter / Legal / Executive / Folio / Oficia / ISO B5 / JIS B5 / Manual Tray: A4 / A5 / A6 / Letter / Legal / Executive / Folio / Oficio / ISO B5 / JIS B5 / Envelope (Monarch, No.10, DL, C5, C6) / Postcard / Custom (76 x 127mm - 216 x 356mm / 3.0 x 5.0" - 8.5 x 14.0") |
| Media Type |
Standard Tray: Plain / Thin / Tick / Archive / Recycled / Manual Tray: Plain / Thin / Tick / Ticker / Archive / Recycled / Cotton / Coloured / Pre-Printed / Label / Bond / Envelopes / Cardstock / Transparency |
| ADF Document Size |
Width: 142 - 216mm (5.6 - 8.5") / Length: 148 - 356mm (5.8 - 14.0") |
| General Feature |
Display |
2-line LCD |
| Interface |
High-Speed USB 2.0 / Ethernet 10 / 100 Base TX |
| Noise Level |
Less than 50dBA (Printing) / Less than 50dBA (Platen Copying) / Less than 52dBA (ADF Copying) / Less than 26dBA (Standby) |
| Memory/Storage |
128MB |
| OS Compatibility |
Windows 2000 / XP / Vista / Win7 / 2003 Server / 2008 Server / Mac OS X 10.4 - 10.6 / Various Linux OS |
| Duty Cycle, Monthly |
Up to 12,000 pages |

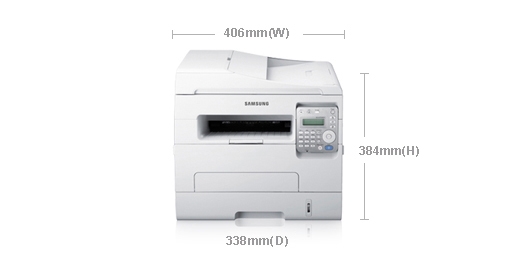

| Dimension (WxDxH) |
406 x 338 x 384mm (15.9" x 13.3" x 15.1") |
| Weight |
11.1kg (24.5lbs) |
| Consumables |
Yield |
Standard: Average Cartridge Yield 1,500 *Standard Pages / High: Average Cartridge Yield 2,500 *Standard pages (Ships with 1,000 pages Starter Toner Cartridge) *Declared cartridge yield in accordance with ISO / IEC 19752 |
| Type |
1-piece Cartridge |
| Model Code |
MLT-D103S / MLT-D103L |
