- Fastest 12X Blu-ray burning speed and best burning quality by OTS technology
- Drag-and-Burn: three simple steps to burn
- Disc Encryption doubles the security with password-controlled and hidden-file functionality
Overview
Superior Burning Innovation
The World's Fastest Blu-ray Burner at 12X the Speed
ASUS internal H/H blu-ray writer not only realizes the first-ever 12X normal Blu-ray write speed but also reduces the failure disc rate and increases successful burning, allowing you to enjoy fast and high-quality burning experience.

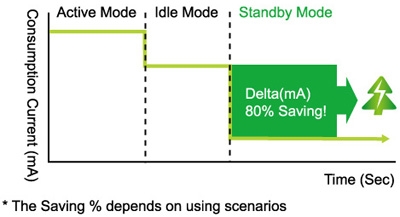

Green Focus
An Eco-chic drive for a greener tomorrow
The ASUS E-Green Drive automatically optimizes drive's power consumption. E-Green application program can display detailed information on power saved and CO2 reduced using the ASUS drive.

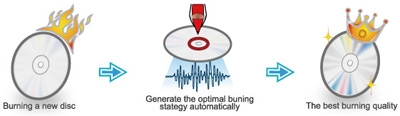

Intelligent Learning Program for Disc Recording
With Optimal Tuning Strategy(OTS), it reduces the failure disc rate and increases successful burning.

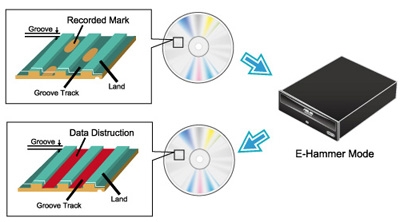

E-Hammer
Ensure Data security
Permanently delete the data on writable disc (CD-R and DVD-R) formats.
Ensure data security and eliminates the hassle of scratching your old discs.
Specifications
| Color |
Black |
| Read Speed |
BD-R : 8X
BD-RE : 8X
BD-ROM : 8X
BD-R(DL) : 8X
BD-RE(DL) : 6X
BD-ROM(DL) : 8X
DVD+R : 16X
DVD-R : 16X
DVD+RW : 12X
DVD-RW : 12X
DVD-ROM : 16X
DVD+R(DL) : 12X
DVD-R(DL) : 12X
DVD-ROM(DL) : 12X
DVD-RAM : 12X
CD-R : 48X
CD-ROM : 48X
BDMV Playback : 4X
DVD Video Playback : 6X
VCD Playback : 16X
Audio CD Playback : 16X |
| Write Speed |
BD-R : 12X
BD-R(DL) : 8X
BD-R(LTH) : 4X
BD-RE : 2X
BD-RE(DL) : 2X
DVD+R : 16X
DVD-R : 16X
DVD+RW : 8X
DVD-RW : 6X
DVD+R(DL) : 8X
DVD-R (DL) : 8X
DVD-RAM : 12X
CD-R : 48X
CD-RW : 24X |
| Writing Mode |
BD-RE : Sequential Write/Random Write
BD-R : Sequential Write
DVD+R & DVD+R (DL) : Sequential Write
DVD-R & DVD-R(DL) : Incremental Recording
DVD+RW : Random Write
DVD-RW : DAO/Restricted Overwrite/Incremental Recording
DVD-RAM : Random Write
CD-R/RW : DAO/TAO/SAO/Packet Write |
| Access time |
BD : 250 ms
DVD : 150 ms
CD : 150 ms |
| Interface |
SATA |
| Data Buffer |
8 MB |
| OS Support |
Windows 7
Windows Vista
Windows XP |
| System Requirements |
Processor: Pentium D 945(3.4GHz) or higher
Memory:1GB or more is recommended
HDD:10GB or more
Graphics Card: NVIDIA GeForce 7600 GT or ATI X1600 series or above
Use HDCP Compatible display and VGA card to High Definition digital output |
| Software |
Cyberlink Power2Go
E-Hammer
E-Green |
| Disc Formats |
Audio CD, Video CD, CD-I, CD-Extra, Photo CD, CD-Text, CD-ROM/XA, Multi-session CD, DVD Video, BD video |
| Disc Diameters |
12cm/8cm |
| Mounting Orientation |
Vertical and Horizontal (+5 ~ -5) |
| Dimensions |
170 x 146 x 41 mm (LxWxH) |
| Weight |
650 g |
| Power |
DC+5V 5%,DC+12V 10 % |
| Temperature |
Operating : 5 to 45
Storage : -20 to 60 |
| Humidity |
Operating : 5 % ~ 85 % (Non-condensing)
Storage : 15 % ~ 90 % (Non-condensing) |
