IMG 1 of 1
No Longer Available

Part Number:
187509
(?) Brand:
Manuf No:
IP8335H
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
IP8335H, VTIP8335H, VT-IP8335H
ip8335h

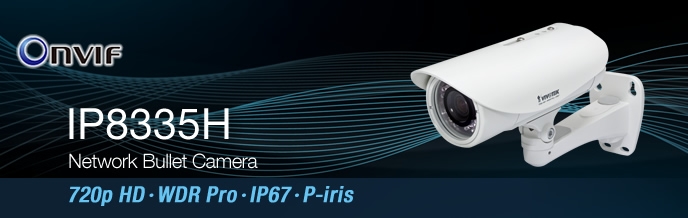

720p HD WDR Pro IP67 P-iris Network Bullet Camera IP8335H

Overview

VIVOTEK's IP8335H network bullet camera features an HD WDR CMOS sensor for use in challenging lighting conditions. The resulting WDR Pro feature enables the camera to capture both the dark and bright parts of an image with double shutters, enabling two frames to be combined to generate a highly realistic image representative of the original scene, providing video quality close to the capabilities of a human eye. The P-iris lens controls the iris with extreme precision with its built-in stepper motor, maintaining the opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality. As such, the IP8335H is suitable for high contrast environments such as lobby entrances, parking lots, ATMs, loading areas, and much more.

The day and night functionality and the IP67-rated weatherproof housing of the IP8335H allows users to easily build a cost-effective IP surveillance system without additional accessories. Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage for up to 20 meters, the IP8335H is an outstanding choice for a 24-hour surveillance solution.

Features

  • 1-megapixel CMOS Sensor
  • 3 ~ 9 mm Vari-focal, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, effective up to 20 Meters
  • Supports WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Weather-proof IP67 rated Housing
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • Mounting Bracket with Cable Management for Protected Installation

Specifications:

Lens f=3 ~ 9 mm
F 1.2 (wide)
F 2.1 (tele)
P-iris
Board lens
Vari-focal
Removable IR-cut filter for day & night function
Field of View 85.7~31.46 (horizontal)
73.16~25.4 (vertical)
99.82~39.67 (diagonal)
Shutter Time 1/15 ~ 1/25,000 sec
Image sensor 1/2.7" CMOS in 1280x800 Resolution
Minimum Illumination 0.8 lux @ F1.2 ( typical )
0.001 lux @ F1.2 ( B/W )
IR Illuminators IR LED*12
Built-in IR illuminators, Effective up to 20 meter
Video Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps at 1280x800, Up to 30 fps at 1280x720
MPEG-4: Up to 25 fps at 1280x800
MJPEG: Up to 30 fps at 1280x800

Focus Assist
Image Settings Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
WDR Pro
Audio Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
External microphone input
Audio output
Supports two-way audio
Supports audio mute
Networking 10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management Triple-window video motion detection
3 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
On-board Storage MicroSD/SDHC card slot
Stores snapshots and video clips
Security Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
Users 10 clients on-line monitoring at the same time
Weight Net: 996 g
LED Indicator System power and status indicator
System activity and network link indicator
Power 12V DC
24V AC
Power consumption: Max. 6.6 W (12V DC)
Power consumption: Max. 8.6 W (24V AC)
802.3af compliant Power-over-Ethernet (Class 3)
Housing Weather-proof IP67-rated housing
Approvals CEC-TickFCCLVDVCCI
Operating Environments Temperature: -20C ~ 50C (-4F ~ 122F)
Humidity: 90% RH
Viewing System Requirements OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 7.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above
Installation, Management, and Maintenance Mounting bracket w/ cable concealment
RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
Applications SDK available for application development and system integration
Warranty 24 months
Dimensions : 70mm x 168 mm
Cable length: 520 mm
Cable diameter: 7.2 mm; Max Connector: 14 mm


No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
