Intel Core i7-3820 Quad Core CPU (3.60GHz, 3.80GHz), LGA2011, 1333MHz, HTT, 10MB Cache, 32nm, 130W

IMG 1 of 1
No Longer Available
Part Number:
187626
(?) Brand:
Intel Web Site
Manuf No:
BX80619I73820
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
BX80619I73820, IN13850, 5032037034203, 735858239431
Intel® Core™ i7-3820 Processor (10M Cache, 3.60 GHz, 3.80 GHz Turbo)


Specifications

Essentials
Status
 Launched
Launch Date
 Q1'12
Processor Number
 i7-3820
# of Cores
 4
# of Threads
 8
Clock Speed
 3.6 GHz
Max Turbo Frequency
 3.8 GHz
Intel Smart Cache
 10 MB
Bus/Core Ratio
 45
DMI
 5 GT/s
Instruction Set
 64-bit
Instruction Set Extensions
 SSE4.2, AVX
Embedded Options Available
 No
Lithography
 32 nm
Max TDP
 130 W
VID Voltage Range
 0.600V 1.350V

Memory Specifications
Max Memory Size (dependent on memory type)
 64 GB
Memory Types
 DDR3-1066/1333/1600
# of Memory Channels
 4
Max Memory Bandwidth
 51.2 GB/s
ECC Memory Supported
 No
Graphics Specifications
Integrated Graphics

Expansion Options
PCI Express Revision
 2.0
# of PCI Express Ports
 10
Package Specifications
Max CPU Configuration
 1
TCASE
 66.8C
Package Size
 52.5mm x 45.0mm
Sockets Supported
 FCLGA2011, FCLGA2011.
Low Halogen Options Available
 See MDDS
Advanced Technologies
Intel Turbo Boost Technology
 2.0
Intel Hyper-Threading Technology
 Yes
Intel Virtualization Technology (VT-x)
 Yes
Intel Virtualization Technology for Directed I/O (VT-d)
 Yes
Intel Trusted Execution Technology
 No
AES New Instructions
 Yes
Intel 64
 Yes
Idle States
 Yes
Enhanced Intel SpeedStep Technology
 Yes
Thermal Monitoring Technologies
 Yes
Execute Disable Bit
 Yes

COMPATIBLE PRODUCTS

Compatible Desktop Boards

Find Compatible Desktop Boards >

Compatible Chipsets

Expand All
  • Intel X79 Express Chipset (Configurations: 1)

    • View the Intel X79 Express Chipset >

    • Intel X79 Platform Controller Hub

      # of CPUs: 1
      Embedded: No
      System Price: N/A
      System TDP: 137.8W


BLOCK DIAGRAMS

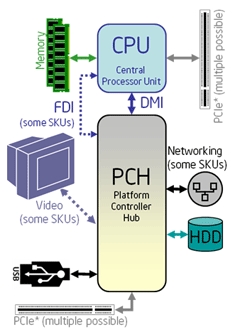

Block Diagram

ORDERING AND SPEC INFORMATION

Ordering and Spec Information

Intel Core i7-3820 Processor (10M Cache, 3.60 GHz) FC-LGA10, Tray

Socket Step Step TDP Ordering Code Spec Code VT-x RCP
FCLGA2011. M1 130 W CM8061901049606 SR0LD Yes $294

Boxed Intel Core i7-3820 Processor (10M Cache, 3.60 GHz) FC-LGA10

Socket Step Step TDP Ordering Code Spec Code VT-x RCP
FCLGA2011 M1 130 W BX80619I73820 SR0LD Yes $305
