All stock codes associated to this product
VB198T
VB198T
True-to-life Pictures Powered by LED
ASUS SPLENDID Video Intelligence Technology carefully evaluates every pixel in every frame and dynamically adjusts them according to conditions most favorable to the human eye.
Overview
True-to-life Pictures Powered by LED
Excellent Video Performance

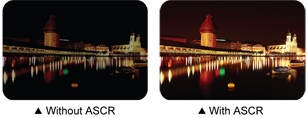

Adopt ASCR (ASUS Smart Contrast Ratio) Technology to provide the high contrast ratio of 50000000:1, which can dynamically adjust contrast between black and white, and to create sharper and brighter images, especially during video and movies.
- Quick 5 ms response time delivering smooth video display
- 16.7 million display colors deliver rich and colorful images to surprise your eyes.
- Dual Inputs of D-sub and DVI with HDCP Supported.
Narrow Frame Design with Great Visual Performance
VB198T comes with a narrow frame and provides a wide viewing angle to ensure that it looks as good as the images being displayed.
Splendid Video Intelligence Technology
The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey.
User-Friendly Designs
- Both DVI-D and D-Sub inputs
- Built-in stereo speakers
- Multi-Language OSD and User Guide
- Convenient Key Controls
- 25 ( forward 5, backwards 20 )Tilting Angle
- Cable manager gets rid of tangling cables and wires
- Removable Base
- VESA Wall Mount Standard ( 100 x 100 mm )
- KENSINGTON Security Lock
- Superior Compatibility with VGA cards
Complete After-Sale Service
- 3-year system warranty
- 3-year panel warranty
- Free pick-up service ( in specific countries)
Green in Mind
Greener Materials
- Mercury-free LED-backlit panel
Corrugated cardboard packaging with at least 80% recycled content
- Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO emission
Energy and Planet Saving
- Eco mode further reduce energy consumption to 55% for a greener life style
Specifications
| Display |
Panel Size: Standard Screen 19.0"(48.3cm) 4:3
True Resolution : 1280x1024
Pixel Pitch : 0.294mm
Brightness(Max) : 250 cd/
ASUS Smart Contrast Ratio (ASCR) : 50000000:1
Viewing Angle (CR10) : 170(H)/160(V)
Response Time : 5ms
Display Colors : 16.7M |
| Video Feature |
SPLENDID Video Intelligence Technology
SPLENDID Video Preset Modes : 6 Modes
Skin-Tone Selection : 3 Modes
Color Temperature Selection : 4 Modes
HDCP support |
| Audio Features |
Stereo Speakers : 1W x 2 Stereo RMS |
| Convenient Hotkey |
SPLENDID Video Preset Mode Selection
Auto. Adjustment
Brightness Adjustment
Volume Adjustment |
| I/O Ports |
Signal Input : D-Sub, DVI-D
PC Audio Input : 3.5mm Mini-Jack |
| Signal Frequency |
Analog Signal Frequency : 53~80 KHz(H)/ 50~76 Hz(V)
Digital Signal Frequency : 53~80 KHz(H)/ 50~76 Hz(V) |
| Power Consumption |
Power On mode: <27W
Power Saving mode: <0.3W
Power Off mode: <0.2W |
| Mechanical Design |
Chassis Colors : Black
Tilt : +20~-5
VESA Wall Mounting : 100x100mm |
| Security |
Kensington lock |
| Dimensions |
Phys. Dimension(WxHxD): 413x405x210mm
Box Dimension (WxHxD): 485x469x150mm |
| Weight |
Net Weight (Esti.): 3.2kg
Gross Weight (Esti.): 5.6kg |
| Accessories |
DVI cable
VGA cable
Audio cable
Quick start guide
Support CD
Warranty Card |
| Regulation Approval |
Energy Star, UL/cUL, CB, CE, ErP, FCC, CCC, BSMI, Gost-R, C-Tick, VCCI, PSB, TCO5.2, ISO9241-307, TUV-GS/ERGO, J-MOSS, RoHS, WEEE, Windows 7 WHQL
 |
