Prolinux
Overview

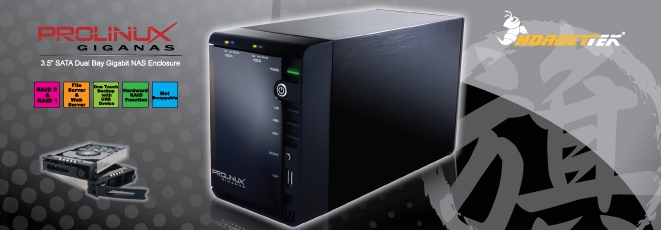

The HornetTek Prolinuxis a multi-functional NAS designed for home or small business. It provides SAMBA server for file sharing, FTP server for remote access, and other servers, such as WEB server, MySQL server, Download server (BT/HTTP/FTP/MetaLink), and iTune/uPnP server. Yet additional powerful services of DDNS and PPPoE are included. The HornetTek Prolinuxis an excellent mini but super SOHO server with its enriched networking features.
Native Server and Extension Server: SAMBA and FTP servers are two native servers which are embedded inthe Prolinuxnor-flash by default. Extension servers are installed in the HDD after the NAS system is built up. Its convenient for users to install the network services at their discretion. Extension servers are WEB, MySQL, iTune, uPnP, Download server & DDNS service, etc..
Efficient Raid management: equipped with Hardware Raid,HornetTek Prolinuxsupports Raid 0, Raid 1. Configured at HW raid, system & data rebuild and recync performs as high efficiency.
Support Mode:
RAID 0 (Striping): Read/Write on both HDD simultaneously
RAID 1 (Mirroring): Mirroring on both HDD simultaneously
Humanistic HDD installation: rigid and elegant aluminum case with retractable tray,HornetTek Prolinuxis convenient for HDD installation and replacement.
Quiet and smooth: Smart PWM control, the rotation speed of the FAN smartly varies in accordance with the temperature status inside the HornetTek Prolinux. FAN speed divides into 4 stages according to the leverage of the detected temperature.
Safe and smart power scheme: 3 seconds power button depressed on/off control will avoid faulty power button operation.The HornetTek Prolinuxmemorizes the previous power status before abnormal power break ie: power cut and resumes to its previous status after main power resumes.
Data crash restore: remote and scheduled backup help to preserve the precious data safely. And data can be restored to avoid data loss and system crash.
Easily NAS connection: The Software "NASLink" helps findProlinux in the network easily. System info ofProlinux is shown in the dialogue box, such as IP, MAC, and disk status. Its easy to link to the web management page ofProlinux by clicking access via web icon in the dialogue box. Users do not necessary need to know whereProlinux is located in the network.
All the functions designed inThe HornetTek Prolinuxare pragmatic. The set-up procedures and operation are simple and user-friendly. The embedded Linux system works highly stable and is affordable for home and small business operation.
Features
- Universal fitting for 3.5 SATA I / II HDD device.
- MARVELL -88F5082 /300MHz Chipset
- Hardware Raid functioned with Silicon image Sil5923 chipset
- 2-Bay Mobile Rack design
- Smart PWM fan control
- Smart Power on/off, resume control
- Supports RAID 0,1,Normal hardware RAID control
- Support SAMBA server
- Supports FTP Server
- Supports BT/HTTP/FTP/MetaLink download
- Support iTunes server
- One Touch Backup from USB devices.
- HDD format: Internal EXT3, External EXT3/FAT32/NTFS (Read-only)
- Support ProtocolSMB/CIFS, TCP/IP, HTTP, FTP, DHCP
- USB 1.1/2.0 device : Online sharing
- Interface: 10/100/1000Mbps RJ45 LAN port x 1
- Two USB 1.1/2.0 host ports
- One IP Default Setting Button
- One Power On/Off Switch Button
- One USB device backup button
- Power SupplyDC 12V/3A External power adapter
Specification
| Model |
Prolinux |
| Interface |
10/100/1000Mbps RJ45 port x 1
Back USB 1.1/2.0 host
Front USB1.1/2.0 host
Front backup button coherent to USB A(front)
One IP default Setting Button
One Power On/Off Switch Button |
| Support Hard Diskette |
Dual Bay 3.5 SATA interface HDD up to 2TB (each bay) |
| DATA Transfer |
SATA up to 3.0Gbps (300MB/s)
USB 2.0 up to 480Mbps (60MB/s)
USB 1.1 up to 12Mbps (1.5MB/s) |
| HDD Function |
Raid 0,1, JBOD |
| Plug and Play |
Yes |
| Package Dimension (LxWxH) |
10.5" x 6" x 7.25" (inch) |
| Product Weight |
5.30lb |
| Units per Carton |
2 |
| Bottleneck speed(LAN) |
10/100/1000 Mbps |
| System Support |
Supports Windows 2000/XP/Vista/7, Linux 2.4.1.0 or above and Macintosh OS 8.6 or higher |
| Material |
Rigid aluminum body, metal tray and front and back ABS panel |
| CE/FCC |
CE/FCC Approved |
| RoHS compliancy |
RoHS Approved |
