All stock codes associated to this product
CS400P, COMPCS400P, COMP-CS400P
CS400P
PoE (Power-over-Ethernet) function is only available on CS400P, which is a PoE-only version of CS400.

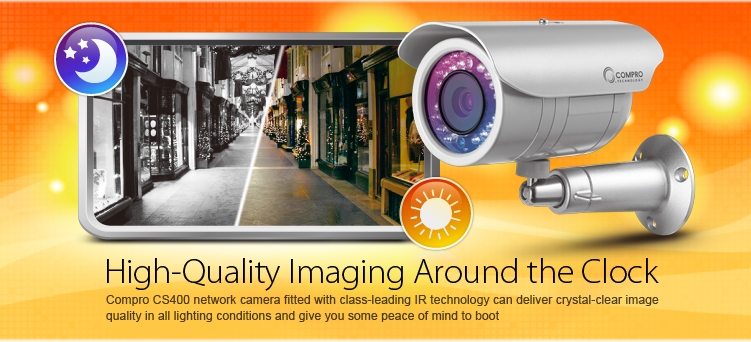

Compro CS400 and CS400P both provide an out-of-the-box IP video surveillance solution for professionals and novice users. These outdoor-ready network cameras can be easily and quickly installed without the need for router configuration or networking expertise. CS400 and CS400P are loaded with an assortment of advanced surveillance features including day/night functionality, smart motion detection, SMS and Email alert message, and more.
Features
Day & Night Functionality with Built-in IR Illuminators
The camera comes equipped with 30 IR LEDs plus an ambient light sensor that detects environmental lighting conditions. When in low-light conditions, the built-in IR LEDs can be automatically switched on to provide additional infrared light that helps deliver clear night-time image.
Mechanical IR-Cut Filter
The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, IR-cut filter is automatically removed to achieve better light sensitivity.
H.264 Compression
The camera utilizes the cutting-edge H.264 video compression technology. Compared with the MPEG-4 format, the H.264 technology has higher compression efficiency, which means it can accomplish high image quality while reducing bandwidth requirement and saving storage cost.
Plug-n-Play Functionality
Unlike other network cameras, installing this camera does not require any networking expertise. Nor is any sort of router setup required - simply plug in the cable, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.
Feature-Rich Camera Viewer App
The camera offers an exclusive and feature-rich camera viewer app that allows you to view and manage your Compro cameras on the iPhone or Android phone. The camera mobile app also lets you securely share camera video with your friends and families on your Friends list.
Friendly Browser Interface
You can view the live video and manage your camera from anywhere and at anytime on your web browser. The camera's browser interface, WebVUer, is so easy to use that there is virtually no learning time required.
SMS & Email Notification
The SMS & Email event notification feature enables the camera to send an alert message to specified recipients when it detects unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.
Weather Resistance
The camera is ready to be mounted outdoors out of the box, saving users installation time and cost. The IP66-rated weather-resistant aluminum housing help the camera survive adverse weather conditions such as dust, rain, and sun.
Power-over-Ethernet (CS400P)
PoE support helps eliminate the need for a power outlet at the installation site, as a single Ethernet cable can be used to not only power the camera but also transport data in/out of the camera. PoE provides flexibility and convenience in installing the camera in the ideal location.
Specifications:
| Camera |
| Image Sensor |
1/4" progressive scan CMOS sensor |
| Lens |
Focal length: 4.0 mm
Max aperture ratio: F1.5
Fixed iris |
| Zoom |
10x digital zoom |
| Angle of View |
50 horizontal |
| Focusing Range |
0.5 m ~ INF |
| Min. Illumination |
IR mode: 0 lux, with 30 built-in IR LEDs in darkness (effective up to 20m)
Color mode: 1.0 lux
|
| Shutter Time |
1/5 ~ 1/15000 sec. |
| Video |
| Video Compression |
M-JPEG, H.264 (MPEG-4 Part 10) |
| Resolution & Frame Rate |
640 x 480 at 30 FPS |
| Video Streaming |
Dual streaming supported |
| Image Settings |
Adjustable image size and quality
AGC, AWB, AES
Configurable brightness, contrast, saturation and sharpness |
| Network |
| Protocols |
ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP/IPv4, IGP, NTP, PPPoE, QoS, RSP, RTSP, SMTP, SSL, TCP/IP, UDP, UPnP |
| Ethernet |
10/100 Base-T, autosensing, RJ-45 |
| Firmware |
| Firmware |
Support UPnP
Support online firmware update |
| Remote Surveillance |
| Mobile Surveillance |
M-JPEG; exclusive camera viewer app for iPhone/Android phone |
| Web Surveillance |
WebVUer 16CH over Internet Explorer, Chrome, Firefox, Safari (features vary) |
| General |
| Unit Configuration |
Rebooting, factory default, date/time synchronization, user profile management, firmware upgrade, OSD, date/time stamp, multilingual UI |
| User Group |
2 levels, unlimited users, ID/password protected, max 10 simultaneous users |
| OSD |
Text or image overlay, 4 locations |
| Language |
Chinese Traditional, Chinese Simplified, German, Spanish, English, Japanese, Portuguese, Russian, Turkish, Ukrainian, Bulgarian |
| Regulatory |
CE, FCC |
| Viewing System Requirements |
Computer with 1.7GHz processor and 512 MB memory or above
Operating system: Windows XP SP3, Vista SP1, Windows 7, Macintosh OS X 10.6 Snow Leopard
Internet browser: Internet Explorer 8.0 or later; non-IE browsers require 3rd-party VLC plug-in |
| Operating Conditions |
Operating temperature: 0 C ~ 50 C (32 F to 122 F)
Humidity: 20~80% RH non-condensing |
| Package Contents |
CS400(P) network camera
Software CD
Quick installation guide
Ethernet cable
Bracket |
| PHYSICAL |
| Dimensions |
148.5 mm (L) x 77 mm (W) x 74 mm (H) (with sunshield) |
| Net Weight |
0.55 kg |
| POWER |
| Power Supply |
CS400: DC 12V/2A
CS 400P: Power-over-Ethernet only (IEEE 802.3af Class 3)
|
| * |
Features and specifications are subject to change without prior notice. |
