All stock codes associated to this product
G410TJ07BW00120, TJ07BWUSB3, TJ07B-W-USB3
TJ07
A towering engineering and aesthetic delight
INTRODUCTION
With a rich history in building full-size all aluminum tower cases dating back to 1999, SilverStone's talented R&D team created yet another benchmark in a class it created. The TJ07 is a culmination of years of experience as it fuses the latest in manufacturing process, thermal concept, ergonomic design, and attractive aesthetics.
The main structure for the TJ07 is crafted from a solid extruded aluminum panel measuring more than 164cm (5.3 feet) in length and 4mm to 8mm in thickness. Using a process never before seen in PC cases, the panel was then arched precisely on two sides with automotive-caliber press machines to create the top, front, and bottom sides of the chassis. The end result is an aluminum chassis frame with more than twice the structural rigidity over average steel cases, helping to practically eliminate vibration-induced noise. Thanks to this process, SilverStone engineers was freed to place more large fans at strategic positions to significantly improve cooling while keeping noise to a minimum.
A new ergonomic layout was also designed with experiences learned from previous Temjin cases so installation is incredibly simple without any obstructions for users of all levels and components. For advanced enthusiasts, the TJ07's simplistic approach with minimal use of rivets will also prove to be a delight because it provides plenty of easily accessible spaces for additional equipments or modifications. To complement the excellent functionality, SilverStone designers added subtle details in surface finish and structural tweaks learned from building home theater PC cases to enhance the look of the already powerful one piece frame. The TJ07 is truly as impressive to see in person as it appears on paper, the way a flagship tower case should be.
SPECIAL FEATURES
- Next generation flagship tower case
- Unprecedented uni-body frame constructed with automotive machinery
- Premium all-aluminum chassis with capacity up to extended ATX, SSI
- Exceptional cooling potential with calculated airflow design
- User friendly layout with tool-less access
- Minimal use of rivets for maximum serviceability
- Dual 92mm rear intake fans included
- Dual 120mm top panel exhaust fans included
- Industry’s first all aluminum unibody frame for PC chassis
- Slide-out motherboard tray for Extended-ATX/SSI-EEB motherboards
- Seven open 5.25” drive bay space
- Rivet-free construction for maximum serviceability and modding
- Flip-down door for external 3.5” drive bay (FP32 included)
- Dual ATX/PS2 PSU compartment, also compatible with redundant PS2
- Dual hard drive cages with built-in 120mm fans and six 3.5” drive capacity
Specifications:
|
Model No.
|
SST-TJ07B (black), SST-TJ07B-USB3.0 (black) |
| SST-TJ07S (silver) |
| SST-TJ07B-W (black, with window), SST-TJ07B-W-USB3.0 (black, with window) |
| SST-TJ07S-W (silver, with window) |
|
Material
|
4.0mm ~ 8.0mm uni-body aluminum outer frame, 2.0mm aluminum body |
|
Motherboard
|
SSI-EEB, Extended ATX, ATX, Micro-ATX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
5.25" x 7 |
| 3.5" x 1 (occupied by front I/O) |
| Internal |
3.5" x 6 |
|
Cooling System
|
Front |
-- |
| Rear |
2 x 92mm intake fans, 2100rpm, 23dBA |
| Side |
2 x 120mm HDD intake fans, 1200rpm, 21dBA |
| Top |
2 x 120mm exhaust fan, 1200rpm, 21dBA |
| Bottom |
-- |
| Internal |
-- |
|
Expansion Slot
|
7 |
|
Front I/O Port
|
USB 2.0 x 4 (SST-TJ07B, SST-TJ07S, SST-TJ07B-W, SST-TJ07S-W only)
USB 3.0 x 4 (SST-TJ07B-USB3.0, SST-TJ07S-USB3.0 only)
IEEE1394 x 1 (SST-TJ07B, SST-TJ07B-W only)
Audio x 1
MIC x 1 |
|
Power Supply
|
2 x Optional standard PS2(ATX) or 1 x Redundant PS2 |
|
Operating system support
|
-- |
|
Expansion Card
|
-- |
|
Limitation of CPU cooler
|
-- |
|
Limitation of PSU
|
Unlimited |
|
Net Weight
|
12.9 kg |
|

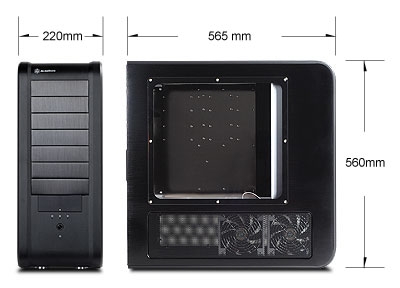

Dimension
|
220 mm (W) x 560 mm (H) x 565 mm (D) |
|
Extra
|
-- |
