H2O-X20 Edge HD Series
The H20-X20 Edge "HD" series liquid cooling kits: uncompromised performance, functionality, andsimple installation
at a reasonable price

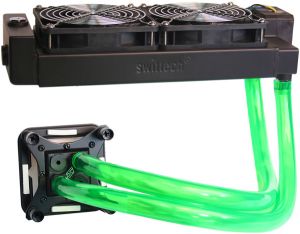

The H20-X20 Edge "HD" series liquid cooling kits represent a true revolution in the world of liquid cooling: they combine Swiftech's extreme performance features with an ease of installation and a versatility that will allow all users, beginners and hardcore enthusiasts alike to take full advantage of all the benefits afforded by liquid cooling.
Each kit is composed of only two elements:
The H20-X20 Edge "HD" series liquid cooling kits represent a true revolution in the world of liquid cooling: they combine Swiftech's extreme performance features with an ease of installation and a versatility that will allow all users, beginners and hardcore enthusiasts alike to take full advantage of all the benefits afforded by liquid cooling.
Each kit is composed of only two elements:
The kits are available in two models, and two versions each:
Features & Benefits
Superior Performance at low noise levels
- Withtheir copper& brass radiators, most powerful DC pump in its size class on the market, and the new Apogee HD waterblock, the H20x20 Edge kits deliversuperior performanceat low to barely audible noise levels.
Fine-tuningRight Out of the Box
- No extra fan or pump controller is needed: youcan fine-tuneyour cooling systemby simplyconnecting thepump to the motherboard and controlling itwiththePWM function. Fan speed can also be controlled using either the motherboard, or theincluded fan speed adapters.
Versatility

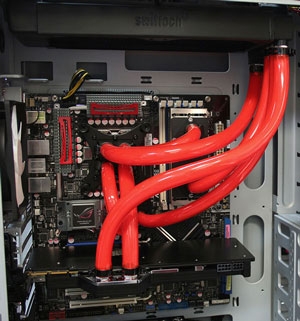

Ease of Installation, anywhere and for anyone!
-
Interms of installation, the only thing that really differentiates the H20-x20 Edge kit from other all-in-one kits is thatyou need to attach two hoses,and fill-it up with coolant. This steponly takes 5 minutes, and can be performed outside the case: simply use our pre-mixed coolant to fill-up the system.
-
Let's face it, fitting a large radiator inside a case is not always a simple bolt-on. Swiftech includes several sets of hardware to ease the task of hanging the radiator in multiple fashions as well as extra accessories to create an external fill-port in the chassis upper panel for easy access to the radiator fill-port.
-
When internal installation is not possible,the MCB-120 "Radbox" can be used toinstall the radiator at the back of practically any mid-or full tower cases.
-
New to Watercooling? No Problem: in addition to the comprehensive installation guide, a CD is included with no less than twenty-four 3D models showing fully detailed configurations(free 3D viewer included). You can see see some examples in the support section of this page.
Low Maintenance
- Check the level once a year for safety, add some coolant every two years or more. Any computer needs at least some dusting once in a while: this will keep it at it'speak performance. So when dusting your fans, adding some coolant is no more complicated or troublesome than openingup a fill-port and pouring some coolant in the built-in reservoir.
Ugradability
- You will be able to keep the core cooling system (Radiator & Pump) for many years to come even when new CPU form factors appear on the marketthat necessitate changing your water-block.
Reliability
- The H20-X20 Edge kits are backed by Swiftech's 10 years of experience in the field of liquid cooling, and a pump rated for 50,000 hours MTBF, whichhas aproven track recordfor itsreliabilityand hundreds's of thousands of units installed in the field over a period of 8 years.
EasyService
- There is no possible DIY maintenance with factory-sealed kits. In contrast, all the parts in the H20-X20 Edge HD kits can be easily swapped by the user, thusreducing down-time.
Support
- With 10 years of experience designing, manufacturing and setting up liquid cooling systems, Swiftech customer service can assist you in setting up and troubleshooting your system 6 days a week, 12 hours a day; in addition, the product is now backed by a 3 year limited warranty for your peace of mind.
Reasonablepricefora high-end cooling system
- Thanks to volume manufacturing, we are now in a position to offer the H20-x20 Edge kits at a considerably reducedprice compared to earlier itterations or the product.
|
Package contents
|
Radiatorspecifications
|
Common Component Specifications
|
|
H20-220 Edge HD
|
-

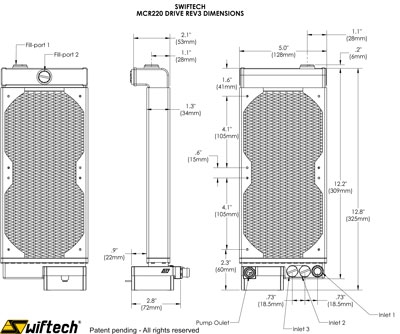

MCR 220 Drive Rev3 Radiator including/featuring:
-
Heat exchanger for dual 120mm fans
-
Integrated reservoir with dual fill-ports and caps
-
Integrated MCP35X PWM controlled pump
-
(2) 120mm fans
-
(2) fan guards
-
Standard radiator mounting screw pack
-
(2) 1/2" Black hose barbs and worm-drive clamps
-
(2) 12 to 7 volt fan-speed adaptors
-
(2) 12 to 5 volt fan-speed adaptors
-

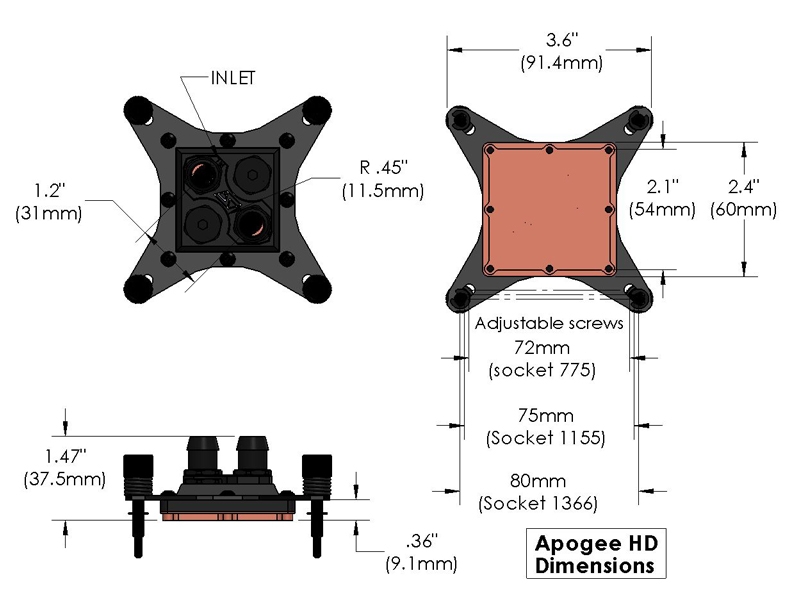

Apogee HD waterblock including
-
Motherboard back-plates for socket 775, 1155, 1156 and1366
-
Separate screw/springs for socket 2011 will be made available shortly.
-
1/2" Black hose barbs and worm-drive clamps.
-
PK1 thermal grease
-
Separate AMD hold-down plate & mounting hardware not included in the kit and supplied for free upon request - Compatible with: sockets 754, 939, 940, AM2, AM3, 770, F, FM1, as well as legacy Intel Server socket 771 processors.
-
Alternate fan installation screw & rivetspack
-
Alternate radiator installationhardware pack
-
Upper panelfill-port finishing hardware pack
-
(1) 1/2 liter pre-mixed HydrX coolant
-
(6) feet 3/4" OD x 1/2" Tubing
-
Funnel
-
Installation CD & Comprehensive installation guide
|
- 2-pass, single row construction
-
Brass body and tubes, louvered copper fins
-
POM pump housing
-
Optimized fin-density for maximum heat dissipation at low noise
-
Patent-pending integrated pump housing
-
M3.5 threaded fan and case-mounting holes
- G1/4 threaded ports
-
High-durability acrylic paint finish
-
ROHS compliant
-
Dimensions:
|
| Motor Type |
Electronically commutated, brushless DC, spherical motor
|
|
Nominal voltage
|
12 VDC
|
| Operating voltage range |
9 to 13.4 VDC
|
|
Max. nominal power (@12 V)
|
18 W
|
| Max. nominal current (@12 V) |
1.5 A
|
|
Max. nominal head (@12 V)
|
14.7 ft (4.4m)
|
|
Max nom. discharge (@12V)
|
~ 4.75 GPM (17.5 LPM)
|
| Maximum pressure |
22 PSI (1.5 BAR)
|
| Temperature range |
Up to 140 F (60 C)
|
|
Electrical power connector
|
Molex 4 pin
|
| PWM + RPM Signals |
4-pin connector
|
| RoHS |
Compliant
|
|
Port thread standard
|
G1/4
|
| MTBF |
50,000 Hours
|
| Model |
RDM1225S |
| Voltage |
6.0 ~ 13.8 VDC |
| Current |
0.23 A |
| Speed |
2000 RPM |
| Static Pressure |
3.5mmH20 |
| Volume |
76.9CFM |
| Noise |
38 db(A) |
| Bearing |
sleeve |
| Connector |
3 Pin |
| Tach Output |
Yes |
|
|
H20-320 Edge HD
|

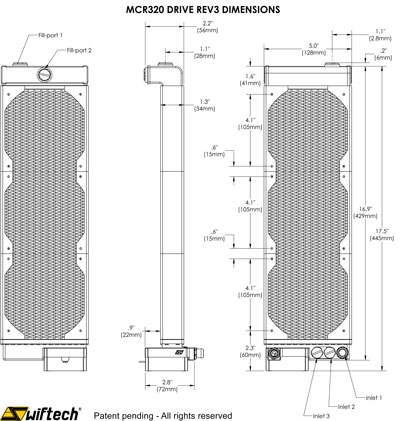

- MCR 320 Drive Rev3 Radiator including/featuring:
-
Heat exchanger fortriple 120mm fans
-
Integrated reservoir with dual fill-ports and caps
-
Integrated MCP35X PWM controlled pump
-
(3) 120mm fans
-
(3) fan guards
-
Standard radiator mounting screw pack
-
(2) 1/2" Black hose barbs and worm-drive clamps
-
(3) 12 to 7 volt fan-speed adaptors
-
(3) 12 to 5 volt fan-speed adaptors
-
Apogee HD waterblock including
-
Motherboard back-plates for socket 775, 1155, 1156, and 1366
-
Separate screw/springs for socket 2011 will be made available shortly.
-
1/2" Black hose barbs and worm-drive clamps
-
PK1 thermal grease
-
Separate AMD hold-down plate & mounting hardware not included in the kit and supplied for free upon request - Compatible with: sockets 754, 939, 940, AM2, AM3, 770, F, FM1, as well as legacy Intel Server socket 771 processors.
-
MCB120 "Radbox" including installation hardware
-
Alternate fan installation screw & rivets pack
-
Alternate radiator installation hardware pack
-
Upper panel fill-port finishing hardware pack
-
(2) 1/2 liter pre-mixed HydrX coolant
-
(6) feet 3/4" OD x 1/2" Clear PVC Tubing
-
Funnel
-
Installation CD & Comprehensive installation guide
|
- 2-pass, single row construction
-
Brass body and tubes, louvered copper fins
-
POM pump housing
-
Optimized fin-density for maximum heat dissipation at low noise
-
Patent-pending integrated pump housing
-
M3.5 threaded fan and case-mounting holes
-
G1/4 threaded ports
-
Multi-port technology: (1) inlet port, and (3) outlet ports
-
High-durability acrylic paint finish
-
ROHS compliant
-
Dimensions:
|
