All stock codes associated to this product
VN900A1W2N
Overview
- Full black coating with metal mesh appearance
- eSPORTS look front bezel
- Bottom-placed PSU design for easy installation
- Supports high-end graphic cards
- Rear 120mm silent fan with blue LED
- Built-in latest USB3.0 SuperSpeed connector

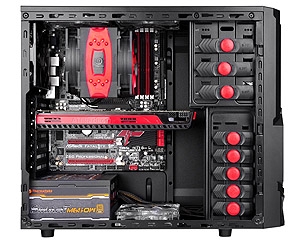

Unique Design
Ready for long graphic card up to 12.5

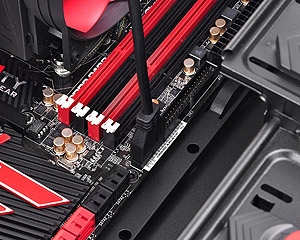

Internal USB 3.0 Connection

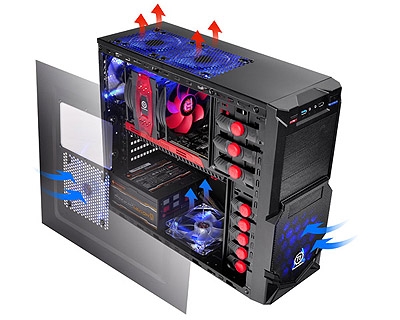

The Cooling System
HDD Air Cooling System
1. Front (intake) : 120 x 120 x 25 mm fan (Optional)
CPU Air Cooling System
2. Top (exhaust) : 120 x 120 x 25 mm fan x 2 (Optional)
3. Rear (exhaust) : 120 x 120 x 25 mm Blue LED Fan (1000rpm,16dBA)
VGA Air Cooling System
4. Side (intake) : 120 x 120 x 25 mm fan (Optional)
5. Bottom (intake) : 120 x 120 x 25 mm fan (Optional)
Specifications:
Model |
VN900A1W2N |
Case Type |
Mid Tower |
Dimension (H x W x D) |
423x 195 x 481 mm (16.7 x 7.7 x 18.9 inch) |
Net Weight |
4.5Kg / 9.9lb |
Side Panel |
Transparent Window |
Color |
Exterior &Interior : Black |
Material |
SECC |
Cooling System |
Front (intake) : Optional 120 x 120 x 25 mm fan x 1 Rear (exhaust) : 120 x 120 x 25 mm Blue LED fan (1000rpm,16dBA) Top (exhaust) : Optional 120 x 120 x 25 mm fan x 2 Side (intake) : Optional 120 x 120 x 25 mm fan Bottom (intake) : Optional 120 x 120 x 25 mm fan |
Drive Bays |
- Accessible : 3 x 5.25, 1 x 3.5 - Hidden : 5 x 3.5, 1 x 2.5 |
Expansion Slots |
7 |
Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
I/O Ports |
USB 3.0 x 1, USB 2.0 x 1, HD Audio x 1 |
PSU |
Standard PS2 PSU |
LCS Upgradable |
Supports 1/23/81/4 water tube |
Other |
CPU cooler height limitation: 155mm VGA length limitation: 320mm |
