All stock codes associated to this product
Z77PERFORMANCE, Z77-PERFORMANCE

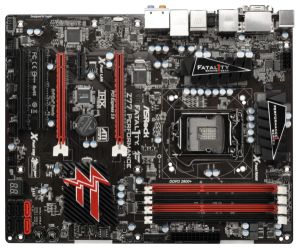

Fatal1ty Z77 Performance
- Premium Gold Caps
- Digi Power Design, 8 + 4 Power Phase Design
- Supports Dual Channel DDR3 2800+(OC)
- 1 x PCIe 3.0 x16 Slot, Supports AMD Quad CrossFireX, CrossFireX
- Supports Broadcom Dual PCIE GLAN with Teaming function
- Supports Intel HD Graphics with Built-in Visuals
- Multi VGA Output options : D-Sub, DVI-D, HDMI
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), Supports THX TruStudio
- Supports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, On/Off Play, UEFI System Browser
- Supports Fatal1ty F-Stream, Fatal1ty Mouse Port
- Supports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVP
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Features
XFast 555 Technology : XFast RAM / XFast LAN / XFast USB
Fully Optimize Memory Usage
5X Faster for Photoshop Execution
XFast RAM will create a virtual disk from the system memory to boost the performance. For Photoshop, It can even perform 5X faster than before.
Faster Internet Access
Lower Latency In Game
XFast LAN can lower latency in the game after setting online game priority higher.
Time latency in World of Warcraft: Cataclysm
Boosts up your USB speed
ATTO Disk Benchmark 4K Read

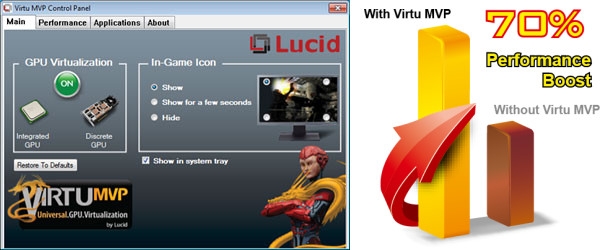

Virtu Universal MVP - Uncompromised Game Response Performance
ASRock motherboard support Lucid Virtu Universal MVP technology that improves your PCs visuals, with faster response times, improved video processing and smoother media playback, all with low power consumption. Brilliantly designed for gaming, Virtu Universal MVP switchable graphics software assigns tasks dynamically to the best graphics resource and features two exciting techniques HyperFormance and Virtual Vsync.
1. HyperFormance™:
A new technology which combines integrated and discrete graphics for uncompromised performance and improves gaming frame rates 30-70%.
It’s also supported with both ATI™ and NVIDIA® graphics cards.
Boosts responsiveness and FPS of any game
Improves gaming frame rates 30-70%
Increases Vsync frame rates - 120 FPS+
Sharpens visual quality without tearing
Works seamlessly with hundreds of games

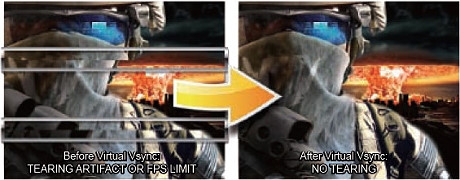

2. Virtual Vsync:
A technology designed to solve the ever lasting debate between quality and performance. Bring GPU performance from 60 FPS Vsync limit back to its maximum while keeping Vsync image quality and no tearing.
3. Switchable Graphics:
Dynamically assigns tasks to the best graphics resource regardless of physical cable connections.
Intel® Smart Connect Technology
Intel® Smart Connect Technology keeps content always up-to-date! It means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. Smart Connect will periodically wake up the PC while in a sleep state and check updates for things like email, Twitter, Facebook, etc. No more waiting for the latest world news or friends’ updates to be delivered—just enable this function and you’re up-to-date and ready to go.
Intel® Rapid Start Technology
Intel® Rapid Start Technology gets your device up and running faster from even the deepest sleep, saving time and battery life. It quickly returns where you left off with a PC that goes from deep-sleep to full awake in a flash. The ultra-responsive capability gives your device the power to quickly resume to Windows® 7 OS within few seconds and ensures ultra-low power consumption when on standby. With Intel® Rapid Start Technology, users can jump right back into everything they were doing!
ASRock OMG (Online Management Guard)
Fast, Easy and Free – ASRock OMG technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users. Normally, ISPs (Internet Service Provider) will charge for internet curfew service. The service controls “all” the PCs connected at home through network remotely but all the PCs in that network will be restricted to access the internet at pre-setup times. However, ASRock OMG is a free tool for controlling internet access of each single PC. Parents can easily control internet access through BIOS setup to protect their kids from using Internet at inappropriate time, and meanwhile, enjoy their own internet space.
Internet Flash
Internet Flash searches for available UEFI firmware updates from ASRock servers. System can auto-detect the latest UEFI from our servers and flash them within UEFI setup without entering Windows® OS.
Premium Gold Caps
Top-Class Quality Guaranteed
Premium Gold Caps are luxury capacitors. These 100% Japan-made solid capacitors are sleek, high gloss caps with a premium gold coating representing long life and stable performance.
Digi Power
More Precise, More Efficient
By adopting digital pulse-width modulation (PWM), the ASRock motherboard can provide CPU Vcore voltage more efficiently and smoothly. Compared to analog PWM, digital PWM can optimize the CPU power solution and provide a proper and stable Vcore for the processor.
8+4 Power Phase
This motherboard is designed with a 8 + 4 Power Phase design. It features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capability and enhanced performance with the lowest temperature for advanced gamers as well.
4 x DDR3 2800+(OC)
This motherboard unlocks maximum memory performance, coming with 4 DIMM slots for dual-channel memory, supporting up to DDR3 2800+ (OC) MHz!
Fatal1ty F-Stream The All-in-1 Tuning Software
The Fatal1ty F-Stream tuning program is an all-in-1 software utility that supports overclocking and hard-ware tuning such as energy usage, H/W monitor, fan speed control, Fatal1ty Mouse Port Configuration and XFast RAM.
In Hardware Monitor, it shows the major readings of your system.
In Fan Control, it shows the fan speed and temperature for you to adjust.
In Overclocking, you are allowed to adjust the CPU frequency, ratio and some voltages for optimal system performance.
In Mouse Polling, gamers can freely adjust the mouse polling rate. In Energy Saving, the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance.
In XFast RAM, it fully utilizes the memory space that cannot be used under Windows® OS 32-bit CPU.
Fatal1ty Mouse Port
Fatal1ty Mouse Port is a customizable technology for PC gamers that is a part of F-Stream. After plugging the USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can use Fatal1tys personal preferred mouse polling rate at 500 Hz. F-Stream also provides the flexibility for gamers to adjust the mouse polling rate from 125 Hz to 1000 Hz. This is helpful for professional gamers to experience smoother game play and faster response time to the mouse.
Next-Gen PCI-E 3.0 Support
The ASRock motherboards support the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth for the next-gen PCI Express 3.0 VGA cards, provide ultimate graphics performance.
Get PCI-E 3.0 Benefits
Higher bit rate - 8.0GT/s
Higher bandwidth per lane - 1GB/s
Higher efficiency - 98.5% encoding efficiency
100% backward compatible with previous PCI-E 2.0 / 1.0 standard
| PCI-E architecture |
Raw bit rate |
Bandwidth per lane per direction |
Encoding Efficiency |
| PCI-E 2.0 |
5.0GT/s |
500MB/s |
80% |
| PCI-E 3.0 |
8.0GT/s |
1GB/s |
98.5% |
Intel HD Graphics Built-in Visuals
Intel
HD Graphics, simplifies your designs by eliminating additional discrete graphics hardware, while integrating stunning visuals and performance for immersive gaming.
On/Off Play Technology
Even when the system is powered off (in ACPI S5 mode), On/Off Play Technology still allows users to enjoy the great audio experience from the portable audio devices through the PC speaker.
THX TruStudio
THX TruStudio is specially designed to bring the same great audio experience found in live performances, films, and recording studios to the PC.
Graphical UEFI The Revolutionary BIOS Interface
Unified Extensible Firmware Interface (UEFI) is a revolutionary BIOS utility which offers tweak-friendly options in an advanced viewing interface. Compared with traditional BIOS design, the latest UEFI utility provides lots improved functions. The major features of UEFI include:
1. Graphical Visual Experience UEFI provides an improved visual interface with colorful icons and makes your computing environment more versatile to replace the traditional dull BIOS page.
2. Mouse Enabling Besides keyboard control, you can freely use mouse to select your ideal settings in UEFI as well.
3. Supports 3TB bootable HDD - UEFI breaks the limitations of 2TB bootable HDD on traditional BIOS. With UEFI, you can enjoy 3TB bootable HDD size.*
*Windows Vista 64bit or Windows 7 64bit OS is required.
UEFI System Browser
UEFI system browser is a useful tool included in graphical UEFI. It can detect the devices and configurations that users are currently using in their PC. With the UEFI system browser, you can easily examine the current system configuration in UEFI setup.
Specifications
| General |
| CPU |
- Supports 3rd and 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package
- Digi Power Design
- 8 + 4 Power Phase Design
- Supports Intel Turbo Boost 2.0 Technology
- Supports Intel K-Series unlocked CPU
- Supports Hyper-Threading Technology |
| Chipset |
- Intel Z77
- Supports Intel Rapid Start Technology and Smart Connect Technology
*Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions.
|
| Memory |
- Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS |
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment |
| Audio, Video and Networking |
| Graphics |
- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video 2.0, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 2500/4000
- Pixel Shader 5.0, DirectX 11 with Intel 22nm CPU. Pixel Shader 4.1, DirectX 10.1 with Intel Sandy Bridge CPU.
- Max. shared memory 1760MB
- Multi VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista and Windows 7.
***Intel InTru 3D is only supported under Windows 7 and Windows 7 x64.
|
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio |
| LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE |
| Expansion / Connectivity |
| Slots |
- 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)
- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports AMD Quad CrossFireX and CrossFireX
*PCIe Gen3 is supported on 3rd Generation of Intel Core i5 and Core i7 CPUs.
|
| SATA3 |
- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and "Hot Plug" functions |
| USB 3.0 |
- 2 x Rear USB 3.0 ports by Intel Z77, support USB 1.0/2.0/3.0 up to 5Gb/s
- 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header by Intel Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s |
| Connector |
- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel Smart Response Technology), NCQ, AHCI and Hot Plug functions (SATA2_3 connector is shared with eSATA2 port)
- 2 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)
- 1 x Dr. Debug with LED |
| Rear Panel I/O |
I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 3 x Ready-to-Use USB 2.0 Ports
- 1 x Fatal1ty Mouse Port (USB 2.0)
- 1 x eSATA2 Connector
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Switch with LED
- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous |
| Unique Feature |
- F-Stream
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- Lucid Virtu Universal MVP
- ASRock On/Off Play Technology
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Combo Cooler Option (C.C.O.)
- Good Night LED
*Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated.
**LucidLogix Virtu MVP is only supported under Windows 7 OS or later versions.
|
| Smart Switch |
- 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM |
| Accessories |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables (optional) |
| Hardware Monitor |
- CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor |
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) |
| OS |
- Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant |
| Certifications |
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
