LucidLogix Virtu MVP featuring HyperFormance Technology boosts your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel processor graphics and Windows 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize 3x faster video conversion with Intel Quick Sync Video technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. For users searching for perfection, LucidLogix Virtu MVP provides great graphical performance and the best flexibility and efficiency.
SLI/CrossFire On-Demand
Why choose when you can have both?

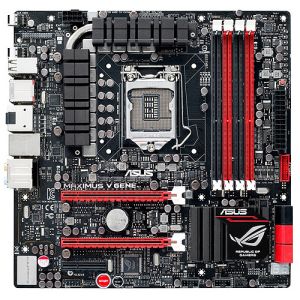

SLI or CrossFireX? Fret no longer because with the ROG Maximus V GENE, youll be able to run both multi-GPU setups. The board features SLI/CrossFire on Demand technology, supporting up to Quad-GPU SLI or Quad-GPU CrossFireX configuration. Whichever path you take, you can be assured of jaw-dropping graphics at a level previously unseen.
CPU Feature
LGA1155 Intel 3rd/2nd Generation Processors Ready
This motherboard supports LGA1155 socket for 3rd generation Intel Core processor-based platform and 2nd Generation Core i7/ i5/ i3/ Pentium / Celeron Processors in the LGA1155 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. LGA1155 socket for 3rd generation Intel Core processor-based platform and 2nd Generation Core i7/ i5/ i3/ Pentium / Celeron Processorsare among the most powerful and energy efficient CPUs in the world
Chipset Features
PCI Express 3.0
PCI Express 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them.
* Actual PCIe speed depends on installed CPU type.
Intel Z77 Chipset
The Intel Z77 Express Chipset is a single-chipset design to support LGA1155 socket for 3rd generation Intel Core processor-based platform and 2nd Generation Core i7/ i5/ i3/ Pentium / Celeron Processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel Z77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel integrated graphic performance.
Rich Software Bundled
ROG CPU-Z
Whole new design of CPU-Z
ROG CPU-Z is a customized ROG version authorized by CPUID. It has the same functionality and credibility as the original version, with a unique design. Use the whole new look of ROG CPU-Z to truly report your CPU related information and your uniqueness.
Kaspersky Anti-Virus
The best protection from viruses and spyware
Kaspersky Anti-Virus Personal offers premium antivirus protection for individual users and home offices. It is based on advanced antivirus technologies. The product incorporates the Kaspersky Anti-Virus engine, which is renowned for malicious program detection rates that are among the industrys highest.
DAEMON Tools Pro Standard
The real tool for optical and virtual discs
DAEMON Tools Pro offers essential functionality to backup CD, DVD and Blu-ray discs. It converts optical media into virtual discs and emulates devices to work with the virtual copies. DAEMON Tools Pro organizes data, music, video and photo collections on a PC, notebook or netbook.
Specifications
| CPU |
Intel Socket 1155 for 3rd/2nd Generation Processors
Supports Intel 22 nm CPU
Supports Intel 32 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list |
| Chipset |
Intel Z77 |
| Memory |
4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). |
| Graphic |
Integrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Multi-GPU Support |
Supports NVIDIA SLI Technology
Supports AMD CrossFireX Technology
Supports LucidLogix Virtu MVP Technology *1 |
| Expansion Slots |
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red) *2
1 x PCIe 2.0 x4 (black)
1 x mini-PCIe 2.0 x1 *3 |
| Storage |
Intel Z77 chipset : *4
2 x SATA 6Gb/s port(s), red
2 x SATA 3Gb/s port(s), black
1 x eSATA 3Gb/s port(s), red
1 x mini-SATA 3Gb/s port(s), black
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *5
ASMedia PCIe SATA controller : *6
2 x SATA 6Gb/s port(s), red |
| LAN |
Intel, 1 x Gigabit LAN Controller(s) |
| Audio |
SupremeFX III built-in 8-Channel High Definition Audio CODEC
- Output Signal-to-Noise Ratio (A-Weighted): 110 dB
- Output THD+N at 1kHz: 95 dB
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- SupremeFX Shielding Technology
- 1500 uF Audio Power Capacitor
- Gold-plated jacks
- X-Fi Xtreme Fidelity
- EAX Advanced HD 5.0
- THX TruStudio PRO
- Creative ALchemy
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel |
| USB Ports |
Intel Z77 chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel Z77 chipset :
8 x USB 2.0 port(s) (4 at back panel, black+white, 4 at mid-board)
ASMedia USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue) |
| Overclocking Features |
mPCIe Combo (mPCIe/mSATA combo card)
ROG Connect :
- RC Diagram
- RC Remote
- RC Poster
- GPU TweakIt
Extreme Engine Digi+ II :
- 8 -phase CPU power design + 4 -phase iGPU power design
- 2 -phase QPI/DRAM power design
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
GameFirst
iROG
Extreme Tweaker
Loadline Calibration
USB BIOS Flashback
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) |
| Special Features |
ASUS Hybrid Processor - TurboV EVO :
- CPU Level Up
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite II
- Ai Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector |
| Back I/O Ports |
1 x DisplayPort
1 x HDMI
1 x eSATA 3Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0
4 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es) |
| Internal I/O Ports |
1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
2 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
8 x ProbeIt Measurement Points
1 x Power-on button(s)
1 x Reset button(s)
1 x Go Button(s)
1 x mPCIe Combo header(s) |
| Accessories |
User's manual
I/O Shield
2 x SATA 3Gb/s cable(s)
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x 12 in 1 ROG Cable Label(s)
1 x ROG Door Hanger(s) |
| BIOS |
64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS |
| Manageability |
WfM2.0, DMI2.0, WOL by PME, PXE |
| Support Disc |
Drivers
Sound Blaster X-Fi 2 Utility
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ROG CPU-Z
ASUS AI Suite II
ASUS WebStorage
ASUS Utilities |
| Form Factor |
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Note |
*1: LucidLogix Virtu MVP supports Windows 7 operating systems.
*2: PCIe3.0 speed is supported by Intel 3rd generation Core Processors.
*3: The mPCIe 2.0 x1 slot is located on mPCIe Combo expansion card.
*4: The mSATA 3Gb/s slot is located on mPCIe Combo expansion card.
*5: Supports on Intel Core processor family with Windows 7 operating systems.
*6: These SATA ports are for data hard drives only. |
