LaCie eSATA Hub
Thunderbolt Series
Give Your Storage a Thunderbolt Upgrade.
- Connect eSATA drives to your new Mac
- Get full speeds from eSATA drives
- Daisy chain Thunderbolt devices
Overview
Connect eSATA Drives to New Macs
Connect eSATA drives to your Thunderbolt-compatible Mac.
Unleashing Full eSATA Speeds
Clear the ExpressCard/34 bottleneck and get full eSATA speeds.
Bring New Value to Your Storage
You already own eSATA drives. Give them a Thunderbolt upgrade.
Daisy Chain for Convenience
Two eSATA drives and a display or Thunderbolt storage on your Mac.
Connect eSATA Drives to New Macs
Better speeds, better value. With the eSATA Hub Thunderbolt Series, now you can connect eSATA drives to your Thunderbolt-compatible Mac. Connect up to two drives to the Hub, which connects to the Thunderbolt port on your new Mac.
The eSATA Hub is the perfect solution for companies that use eSATA drives, but have upgraded their Macs to versions without ExpressCard/34 slots. It also offers a great way for photographers or other creatives to boost eSATA drive performance.
Unleashing Full eSATA Speeds

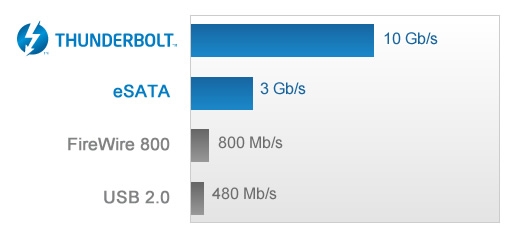

The ExpressCard/34 maximum bus speed is 2.5Gb/s, which limits eSATA 3Gb/s transfer speeds. The eSATA Hub clears this bottleneck, since Thunderbolt's 10Gb/s provides more than enough speed to accommodate 3Gb/s. Achieve the full speed potential of your eSATA drives.
Bring New Value to Your Storage
You already own eSATA drives, but can't connect them to your new Mac. The eSATA Hub modernizes your drives and puts them back to work. You don't have to buy new drives and scrap the old ones. eSATA and Thunderbolt connections are even software RAID compatible. Upgrade your storage with Thunderbolt technology.

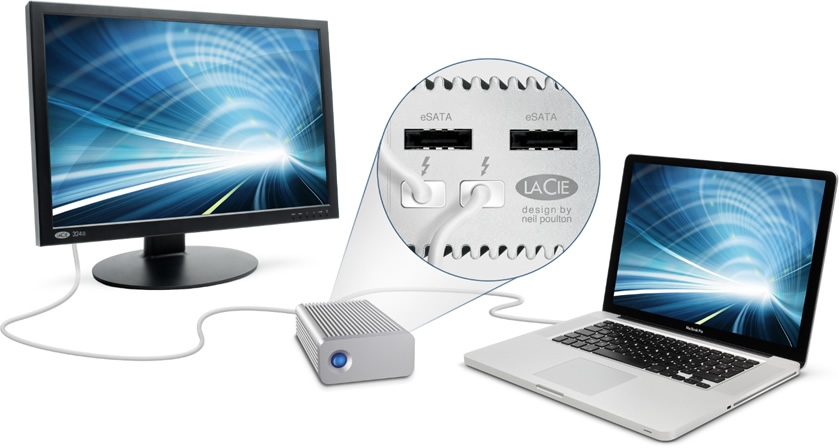

Daisy Chain for Convenience
Thunderbolt technology supports daisy chaining, so you can connect a display or other Thunderbolt device to the eSATA Hub. This means you can connect, for example, your high-end LaCie 324i display and your eSATA Hub to your Mac via a single Thunderbolt cable. Thunderbolt technology also supports two channels one dedicated for data, and the other for video each with 10Gb/s of bandwidth. This means you can push and pull audio/video data without reducing bandwidth. Maximum convenience, minimum desktop clutter.
Specifications:
| Item Number: |
9000186
|
| Capacity: |
0 TB (diskless)
|
| |
|

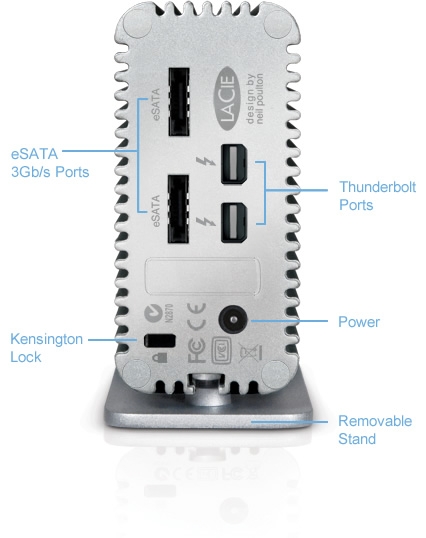

| Interface: |
Dual 10Gb/s Thunderbolt ports for daisy chaining
Dual eSATA 3GB/s ports |
| |
|
| Protocols: |
Data: PCI Express
Video: Dual-Mode DisplayPort |
| |
|
| Daisy Chain: |
Thunderbolt: Up to six Thunderbolt technology compatible devices including LaCie Thunderbolt series products, and other Thunderbolt technology-compatible devices
eSATA: Up to two eSATA drives per hub |
| |
|
| Cables Technology: |
Thunderbolt cables (not included) |
| |
|
| RAID Modes: |
Software RAID compatible using 2x eSATA drives |
| |
|
Interface Transfer Rate
(max. bus speed): |
Thunderbolt: Up to 10Gb/s
eSATA: Up to 3Gb/s |
| |
|
| Cooling: |
Aluminum enclosure with heat sink design for 60% better cooling |
| |
|
| Security: |
Kensington chain lock compatible |
| |
|
| Size: |
1.6 x 5.5 x 3.3 in. / 40 x 140 x 85 mm |
| |
|
| Weight: |
505 g / 1.11 lbs. |
| |
|
| System Requirements: |
Computer with Thunderbolt port
Mac OS X 10.6 or greater
Thunderbolt cable (sold separately)
eSATA hard drive(s) |
| |
|
| Power Supply: |
100-240Vca; 50/60Hz |
| |
|
| Box Content: |
LaCie eSATA Hub Thunderbolt Series
Drive stand for upright use
External power supply
Quick Install Guide |
| |
|
| Comments: |
* eSATA device performance when connected to a Thunderbolt-compatible computer via the eSATA Hub Thunderbolt Series may vary from one computer to another and from one eSATA storage device to another. It may also differ from the performance achieved when connecting the same eSATA storage device directly to an eSATA-compatible computer. LaCie will not be held responsible for low performance achieved by products not contained in the above list. |
