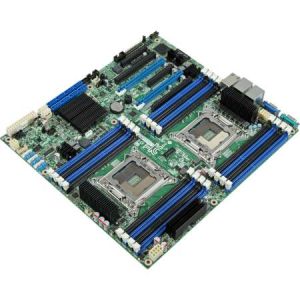

Intel S2600COE Motherboard
  • 2xLGA2011, E5-26xx, 16xDDR3 ECC, 10xSATA, RAID, 4xGigLAN, VGA, SSI EEB
  • 4xPCI-Ex16, 1xPCI-Ex8,1xPCI-Ex4

IMG 1 of 1
No Longer Available
Part Number:
189802
(?) Brand:
Intel Web Site
Manuf No:
DBS2600COE
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Date Added:
3/4/2012
Details Files Finance Images & Video
All stock codes associated to this product
DBS2600COE, MBIS2600COE, MBI-S2600COE, 5032037034722

Specifications

Essentials
Status
 Launched
Launch Date
 Q1'12
Expected Discontinuance
 Q1'17
Limited 3-year Warranty
 Yes
Extended Warranty Available for Purchase (Select Countries)
 Yes
On-Site Repair Available for Purchase (Select Countries)
 Yes
# of QPI Links
 2
Board Form Factor
 SSI EEB 12" x 13"
Chassis Form Factor
 Pedestal
Socket
 Socket R
Integrated Systems Available
 No
Integrated BMC with IPMI
 IPMI 2.0
Rack-Friendly Board
 Yes
Embedded Options Available
 Yes
Supplemental SKU
 No
Max TDP
 150 W
Included Items
 Intel Server Board S2600COE and attention document. Below items are included In Disti 5 Pack ony: I/O shield, cables, configuration labels, Intel Server Deployment & Management DVD, Quick Start Users Guide.
Description
 Intel Server Board S2600COE, Extreme Server SKU supporting two E5-2600 CPUs up to 150W, 16 DIMMs with four 1Gb Ethernet ports and Firewire
Target Market
 Embedded
Memory Specifications
Max Memory Size (dependent on memory type)
 512 GB
Memory Types
 DDR3 ECC UDIMM 1600, RDIMM 1600, LRDIMM 1333
# of Memory Channels
 8
Max Memory Bandwidth
 819.2 GB/s
Physical Address Extensions
 46-bit
# of DIMMs
 16
ECC Memory Supported
 Yes
Graphics Specifications
Integrated Graphics
 Yes
Graphics Output
 15-pin VGA
Intel Clear Video Technology
 No
Dual Display Capable
 No
Discrete Graphics
 Supported
Expansion Options
PCI Express Revision
 3
# of PCI Express Ports
 84
PCIe x8 Gen 3
 1
PCIe x16 Gen 3
 4
PCIe x4 Gen 2.x
 1
I/O Specifications
USB Revision
 USB 2.0
# of USB Ports
 5
USB 2.0 Configuration (Back + Internal)
 4
# of SATA Ports
 10
RAID Configuration
 Up to SW Raid 5 (LSI + RSTE)
# of Serial Ports
 2
# of LAN Ports
 4
Integrated LAN
 4x 1GbE
Firewire
 1394b
Embedded USB (eUSB) Solid State Drive Option
 Yes
Integrated SAS Ports
 8
Package Specifications
Max CPU Configuration
 2
Energy Star
 Yes
Low Halogen Options Available
 See MDDS
Advanced Technologies
Intel Trusted Execution Technology
 Yes
AES New Instructions
 Yes
Intel vPro Technology
 No
Intel Active Management Technology
 No
Intel AMT Version
 False
Intel Remote Wake Technology
 No
Intel Remote PC Assist Technology
 No
Intel Remote Management Module Support
 Yes, optional
Intel Intelligent Power Node Manager
 Yes
Intel CIRA Technology
 No
Intel Anti-Theft Technology
 No
TPM
 Yes
Intel TPM Version
 Intel TPM Version 2.0
Intel Quick Resume Technology
 No
Intel Quiet System Technology
 No
Intel HD Audio Technology
 No
Intel AC97 Technology
 No
Intel Matrix Storage Technology
 Yes
Intel Fast Memory Access
 Yes
Intel Flex Memory Access
 Yes
Intel I/O Acceleration Technology
 True
