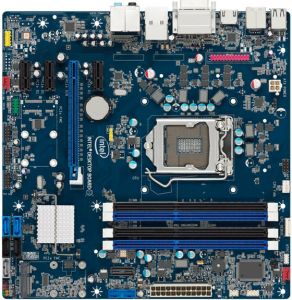

Intel® Desktop Board DH77EB
The Intel® Desktop Board DH77EB supports the 2nd generation, the 3rd generation Intel® Core™ i7, Intel® Core™ i5 processors and other Intel® processors in the LGA1155 package. The board is featured with DVI-I, HDMI* and DisplayPort* connectors and supports dual independent display for processors with Intel® HD Graphics. The Intel® Desktop Board DH77EB supports Intel® HD Graphics with the Lucidlogix Virtu* Universal software, which combines best-in-class media processing features of the Intel® Core™ processors with the 3D gaming performance of graphics add-in cards.
Intel® Desktop Board DH77EB also offers a PCI Express* Mini Card connector with support for mSATA Solid-State Drive for Intel® Smart Response Technology.
Specifications:
| Features and Configurations |
| Form factor |
microATX |
| AA# (Altered Assembly) |
G39073-XXX |
| BIOS ID string |
EBH7710H.86A |
| Processor |
At product launch, this desktop board supports:
- Intel Core i7 processor series in an LGA1155 socket
- Intel Core i5 processor series in an LGA1155 socket
View all compatible Intel processor numbers
|
| Memory |
- Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
- Support for DDR3 16001/1333/1066 MHz DIMMs
- Support for up to 32 GB of system memory
|
| Chipset |
- Intel H77 Express Chipset with Intel Rapid Storage Technology
|
| Graphics |
- DVI-I, HDMI*, and DisplayPort for processors with Intel HD Graphics
- Support for PCI Express* 3.0 x16 add-in graphics card2
|
Audio |
Intel High Definition Audio3 subsystem in the following configuration:
- 10-channel (7.1+2 independent multi-streaming) audio subsystem using the Realtek* ALC 892 audio codec
- Five analog audio outputs and one optical S/PDIF out port
- Internal S/PDIF header and front panel audio header
|
| LAN support |
- Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82579V Gigabit Ethernet Controller
|
| Peripheral interfaces |
- Two Serial ATA 6Gb/s ports
- Three Serial ATA 3Gb/s ports
- One eSATA 3Gb/s port
- Ten USB 2.0 Ports , four back panel ports and six additional ports via internal headers
- Four USB 3.0 Ports , two back panel ports and two additional ports via internal headers
|
| Expansion capabilities |
- One PCI Express 3.0 x 16 discrete graphics card connector
- Three PCI Express* 2.0 x 1 connectors
- One PCI Express Mini Card connector with support for mSATA Solid-State Drive
|
