G1.Sniper M3 (rev. 1.0)

Intel® Z77 Chipset

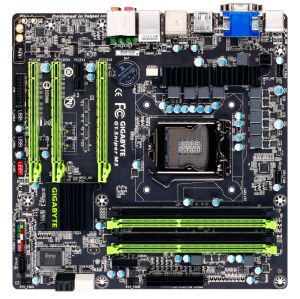

The G1.Sniper M3 is the first m-ATX gaming motherboard of the GIGABYTE G1-Killer series, which have been designed from the ground up to provide the winning edge in a close 3D gaming contest. Precision is the watch word in all areas of the motherboard's design, with as much attention to detail paid to the motherboards aesthetic qualities as to its technical prowess.



Equipped with the latest Intel Z77 Express Chipset, the G1.Sniper M3 motherboard harnesses the outstanding performance of the new 3rd generation Intel® Core™ processors. With an exclusive 'Digital' VRM design; GIGABYTE 3D Power and GIGABYTE 3D BIOS (Dual UEFI), The G1.Sniper M3 motherboard ensures exceptional power delivery and absolute control.

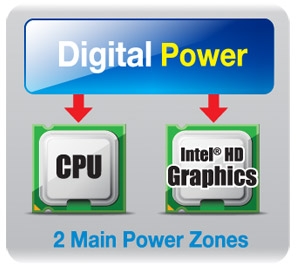

Utilizing an Digital controller array, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the system, no matter the loading. With digital controllers for the CPU (Vcore), users can make real-time adjustments with the exclusive GIGABYTE 3D Power Utility, that include settings such as OVP (Over Voltage Protection), Load-line Calibration and on-the-fly PWM frequency adjustment.





The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.



At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.



Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.



Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.



Super Sight







The ability to see clearly through the fog of war can often tip the balance between the winning or losing force. That is why GIGABYTE has equipped the G1.Sniper M3 motherboard to offer utmost graphics flexibility and upgradeability. With multiple GPU support, GIGABYTE G1.Sniper M3 motherboard delivers maximum FPS (Frames Per Second), allowing gamers to see more clearly, aim faster, and move more quickly.







Revolutionary Sound Core3D Audio and Voice chipset accelerates THX TruStudio Pro and CrystalVoice processing effects, drastically improving your gaming experience with faster frame rates, more immersive gaming audio, and crystal clear voice communication.



Specially designed for gamers, GIGABYTE G1.Sniper M3 utilize a high capacity amplifier which is able to drive 150 loads, allowing gamers to enjoy a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones. The amplifier also features wide band-width, low noise, high slew rate and low distortion, making it ideal for professional audio usage. In addition, GIGABYTE has equipped G1.Sniper M3 motherboard with 4 additional amplifiers onboard for the center/sub woofer, rear speaker, side surround and line out.



GIGABYTE G1.Sniper M3 motherboard utilizes the highest quality Nichicon MUSE ES series and MW series Bi-Polarized audio capacitors at each channel layout. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.





Enjoy optimized networking with Intel  Gigabit Ethernet combined with industry leading cFosSpeed Internet bandwidth acceleration.





GIGABYTE 7 series motherboards feature GIGABYTE 333 Onboard Acceleration, a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.



Super Shield




Further helping to eliminate heat are the 4 strategically placed Smart Fan pin headers which allow for more precise control of system and CPU fans. Equipped with their own individual thermal sensors, the Smart Fans can be easily controlled via GIGABYTE's EasyTune 6 utility as well as in the BIOS.




New 3rd generation Intel® Core™ processors are based on the new 3rd generation Intel® Core™ processor architecture, manufactured using the latest 22nm process to create a visually optimized processor platform. Based on the mature LGA 1155 socket, 3rd generation Intel® Core™ processors feature up to four high-performance 64-bit processor cores and 8MB of L3 cache Smart Cache, and overall performance when you need it most.





GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.

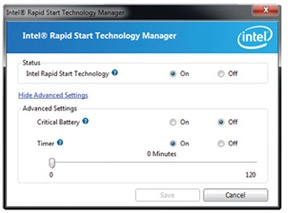

Intel  Rapid Start Technology gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows  7 is a few seconds without having the PC go through a full system boot. With Intel  Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.




Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends' updates to be delivered—just press the 'on' button and you're up-to-date and ready to go.





No manual interaction required to synchronize with cloud services.



Email, social media, and cloud apps always updated and available at power on.



GIGABYTE Ultra Durable™ 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats.

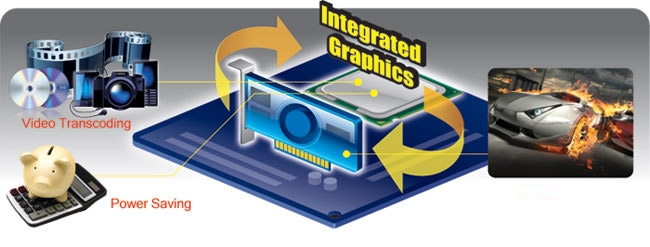

Allows users to dynamically switch between built-in graphics and high-end, 3D discrete graphics cards.



GIGABYTE EZ Smart Response





The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel® Smart Response Technology. In the past, enabling Intel® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.

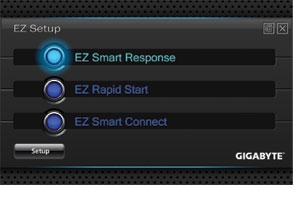

GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel  Smart Response, Intel  Rapid Start and Intel  Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.

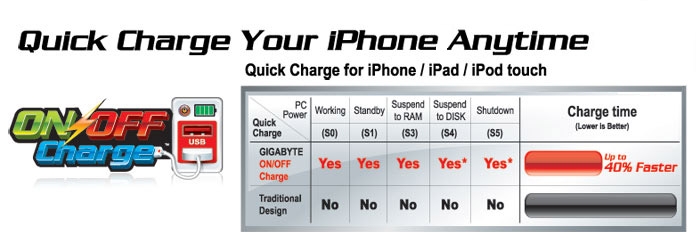

GIGABYTE 7 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.





Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
