OCZ VERTEX 4 SATA III 2.5" SSD
Overview
As the fourth generation of the legendary Vertex family, the Vertex 4 Series pushes storage performance to the max and redefines the modern day computing experience. Vertex 4 SSDs are innovatively engineered to deliver industry-leading file transfer rates and superior system responsiveness, all while providing a more durable, reliable, and energy efficient storage solution compared to traditional hard drives. Designed to take full advantage of the SATA III interface, the Vertex 4 unleashes ultimate productivity, gaming, and multimedia applications.
Industry-leading performance
Up to 550 MB/s Sequential Reads
Up to 85,000 Random Write IOPS
Up to 120,000 Maximum IOPS
Available in 64GB to 512GB Capacities
Access Latency as low as 0.02ms
Strong performance at lower queue depths
Industry's highest IOPs performance up to 120,000
Incredible performance in workstation and heavy-duty environments with multiple data threads
No compression-related performance limitations
Better performance with "real world" data streams of varying "compressibility" as well as fully incompressible data such as videos and multimedia files, encrypted data, archive files such as .ZIP files and software.
Indilinx InfusedTM Everest 2 platform
Leading edge dual-ARM controller architecture enables faster performance like nothing else you've experienced.
Fast boot times and ultra-low latency
Boot up in as little as 9 seconds, and industry-low latencies of .04 reads and .02 writes enable superior multitasking and flawless performance
Industry-leading 5 year warranty
Backed by OCZ's renowned service for ultimate peace of mind.
Ndurance 2.0 Technology
Advanced suite of NAND Flash management to increase durability and reliability to expand the NAND's lifespan
Mirroring real-world performance scenarios over a broad spectrum of consumer desktop and mobile applications, Vertex 4 SSDs are designed to provide a superior user experience and extreme performance over the other current solutions available on the market. With the cutting-edge Indilinx Everest 2 platform, Vertex 4 is optimized for consistent, high speeds with the complete spectrum of file types and sizes including both compressible and incompressible data for balanced performance like no other drive you've experienced.

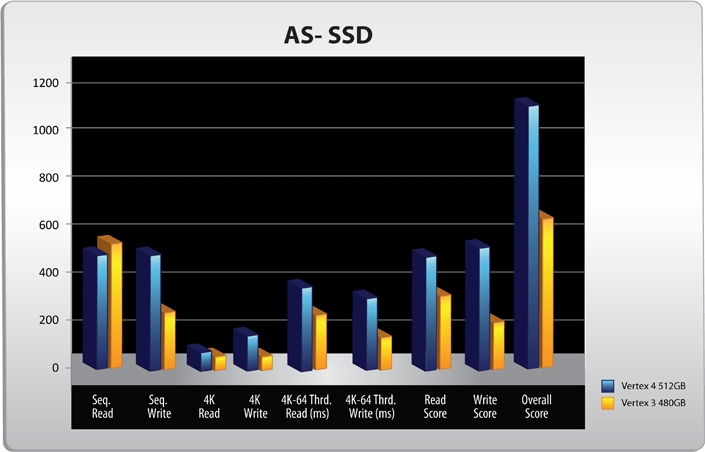

| AS SSD |
Vertex 4 512GB |
Vertex 3 480GB |
| Seq. Read MB/s |
461.9 |
503.1 |
| Seq. Write MB/s |
462.9 |
245.7 |
| 4k Read MB/s |
32.9 |
25.6 |
| 4k Write MB/s |
121.8 |
22.1 |
| 4k-64 Read MB/s |
351.9 |
219.5 |
| 4k-64 Write MB/s |
297.8 |
144.5 |
| Read Score MB/s |
431 |
295 |
| Write Score MB/s |
466 |
191 |
| Overall Score |
1,129 |
634 |
Faster Performance for Cost-Effectiveness
SSDs have 100x greater throughput and instantaneous access times for quicker boot ups, faster file transfers, and overall snappier performance than hard drives.
Because many HDDs are needed to achieve the same performance, SSDs offer greater cost effectiveness for IOPS per dollar.
Greater Durability
The non-mechanical design of NAND flash mounted to circuit boards are shock resistant up to 1500g, unlike HDDs with various moving parts.
Less Power, Silent Operation
SSDs use significantly less wattage at peak load than hard drives, delivering longer battery life in notebooks, less power strain on system, and a cooler computing environment.
With no moving parts, SSDs run virtually silent in your notebook or PC case to eliminate distracting noises during gaming or entertainment.
Specifications:
|
Performance
|
64 GB |
128 GB |
256 GB |
512 GB |
| Sequential Reads1 |
460 MB/s |
560 MB/s |
560 MB/s |
560 MB/s |
| Sequential Writes1 |
220 MB/s |
430 MB/s |
510 MB/s |
510 MB/s |
| Random 4k Read IOPS2 |
70,000 IOPS |
90,000 IOPS |
90,000 IOPS |
95,000 IOPS |
| Random 4k Write IOPS2 |
50,000 IOPS |
85,000 IOPS |
85,000 IOPS |
85,000 IOPS |
| Maximum IOPS3 |
85,000 IOPS |
120,000 IOPS |
120,000 IOPS |
120,000 IOPS |
| Physical |
|
| Usable Capacities (IDEMA) |
64GB, 128GB, 256GB, 512GB |
| NAND Components |
2Xnm Synchronous Multi-Level Cell (MLC) |
| Interface |
SATA III / 6Gbps (backwards compatible with SATA II / 3Gbps) |
| Form Factor |
2.5 Inch |
| NAND Controller |
Indilinx Everest 2 |
| DRAM Cache |
Up to 1GB |
| Dimensions (L x W x H) |
99.8 x 69.63 x 9.3 mm |
| Reliability/Protection |
|
| MTBF |
2 million hours |
| Data Path Protection |
ECC corrects up to 128 random bits/1KB |
| Data Encryption |
256-bit AES-compliant, ATA Security Mode Features |
| Product Health Monitoring |
Self-Monitoring, Analysis and Reporting Technology (SMART) Support |
| Environmental |
|
| Power Consumption |
Idle: 1.3 W Active: 2.5 W |
| Operating Temperature |
0C ~ 70C |
| Ambient Temperature |
0C ~ 55C |
| Storage Temperature |
-45C ~ 85C |
| Shock Resistance |
1500G |
| Compatibility |
|
| Serial ATA (SATA) |
Fully compliant with Serial ATA International Organization: Serial ATA Revision 3.0.
Fully compliant with ATA/ATAPI-8 Standard Native Command Queuing (NCQ) |
| Operating System |
Windows XP 32-bit /64-bit; Windows Vista 32-bit / 64-bit; Windows 7 32-bit / 64-bit; Linux; Mac OS X |
| Additional Features |
|
| Performance Optimization |
TRIM (requires OS support), dynamic and static wear-leveling, background garbage collection, Indilinx nDurance 2.0 Technology to extend SSD lifespan |
| Other Performance Features |
Ndurance 2.0 Technology (Reduced Write Amplification without Compression, Advanced Multi-Level ECC, Adaptive NAND Flash Management) |
| Service & Support |
5-Year Warranty, Toll-Free Tech Support, 24 Hour Forum Support |
| Ordering information |
Part Number |
UPC |
| 64 GB |
VTX4-25SAT3-64G |
842024030348 |
| 128 GB |
VTX4-25SAT3-128G |
842024030355 |
| 256 GB |
VTX4-25SAT3-256G |
842024030362 |
| 512 GB |
VTX4-25SAT3-512G |
842024030379 |
| 512 GB (M) |
VTX4-25SAT3-512G.M |
842024031567 |
