All stock codes associated to this product
TLWDN3200, TL-WDN3200, NWTLWDN3200, NWTL-WDN3200, 6935364050665
N600 Wireless Dual Band USB Adapter
TL-WDN3200
Highlights:
- Supports Dual-Band (IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/n 5 GHz)
- Maximum speed up to 2.4GHz 300Mbps and 5GHz 300Mbps
- USB 2.0 interface
- Easy wireless security encryption at a push of the WPS button
Overview
What This Product Does
TP-LINKs TL-WDN3200 is an N600 Wireless Dual Band USB Adapter giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections at 300Mbps. With wireless connections transmitting over the 5GHz band, users neednt worry about interference from neighboring wireless devices and the plethora of household appliances that may interfere with their wireless signal, ensuring high-quality connections ideal for bandwidth-intensive applications such as HD video streaming and online gaming.
The Best of Both Bands
TP-LINKs TL-WDN3200 is an N600 Wireless Dual Band USB Adapter giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections to upgrade their notebook or PCs wireless capabilities to operate with new 5GHz band wireless networks, while ensuring that they can still access legacy 2.4GHz band wireless networks.
300Mbps Wireless Speed
Using either the 2.4GHz or 5GHz bands, users will have super fast 300Mbps wireless speeds for all their networking tasks.

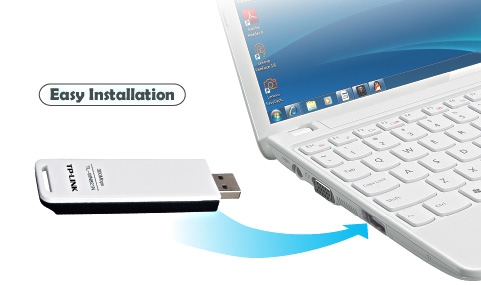

Bundled Utility - Quick & Hassle-Free Installation
With its bundled wireless setup utility and WPS button, the TL-WDN3200 is very easy to setup and secure, even for novice users.
Features:
- Dual-Band N (IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/n 5 GHz)
- Maximum speed up to 2.4GHz 300Mbps and 5GHz 300Mbps
- USB 2.0 interface
- Supports ad-hoc and infrastructure mode
- Easy wireless security encryption at a push of the WPS button
- Supports Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit
- Easy Wireless Configuration Utility
Specifications:
| HARDWARE FEATURES |
| Interface |
USB 2.0 |
| Button |
WPS button |
| Dimensions (W X D X H) |
3.40.90.4 in. (86.52410mm) |
| Antenna Type |
Omni Directional |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency |
2.4-2.4835GHz
5.15-5.35GHZ
5.745-5.825GHz |
| Signal Rate |
2.4GHz
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
5GHz
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic) |
| EIRP |
<20dBm (EIRP) |
| Reception Sensitivity |
270M_2.4GHz: -70dBm@10% PER
130M_2.4GHz: -70dBm@10% PER
54M_2.4GHz: -76dBm@10% PER
11M_2.4GHz: -86dBm@8% PER
6M_2.4GHz: -91dBm@10% PER
1M_2.4GHz: -97dBm@8% PER
270M_5GHz: -66dBm@10% PER
130M_5GHz: -69dBm@10% PER
54M_5GHz: -76dBm@10% PER
6M_5GHz: -90dBm@10% PER |
| Wireless Modes |
Ad-Hoc / Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
Wireless Adapter TL-WDN3200
Resource CD
Quick Installation Guide |
| System Requirements |
Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits) |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
