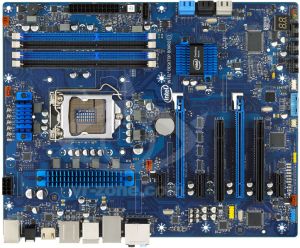

Intel Desktop Board DZ77BH-55K
Latest in a series of Intel Desktop boards optimized for the Intel -K processors, the Intel Desktop Board DZ77BH-55K raises the bar on performance that gamers, overclockers, and media enthusiasts
demand. With hardware optimized to handle overclocking and performance tuning of the core, graphics, and memory, we have provided great flexibility for every performance enthusiast out there. This Intel Z77 Express Chipset-based product also supports Intel Smart Response Technology, which dramatically increases system responsiveness while combining the performance benefits of a solid-state drive with the storage capacity of a traditional HDD in a single drive volume. The Intel Desktop Board DZ77BH-55K also supports Intel HD Graphics with the LucidLogix Virtu* Universal GPU Virtualization software.
Specifications:
|
Features and Configurations
|
|
Form factor
|
ATX
|
|
AA# (Altered Assembly)
|
G39008-XXX
|
|
BIOS ID string
|
BHZ7710H.86A with Intel Fast Boot Technology
|
|
Processor
|
At product launch, this Intel Desktop Board DZ77GA-70K supports:
Intel Core i7 -K processors series and other processors in an LGA1155 socket
- 2nd and 3rd Generation Intel Core i7 processor series in an LGA1155 socket
- 2nd and 3rd Generation Intel Core i5 processor series in an LGA1155 socket
- 2nd and 3rd Generation Intel Core i3 processor series in an LGA1155 socket
View all compatible Intel processor numbers
|
|
Memory
|
- Four 240-pin DDR3 SDRAM dual in-line memory module (DIMM) sockets
- Support for DDR3 1600/1333 /1066 MHz DIMMs
- Support for up to 32 GB of system memory
|
|
Chipset
|
- Intel Z77 Express Chipset
- Intel Rapid Storage Technology (Intel RST) for RAID 0, 1, 5, and 10
|
|
Graphics
|
HDMI* and DisplayPort*
- Two PCI Express* 3.0 x16 connectors (one x8 electrical)
Supports ATI CrossFireX* and NVIDIA SLI*
|
|
Audio
|
Intel High Definition Audio 1 subsystem in the following configuration:
- 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with six analog audio outputs and optical S/PDIF out port
- Supports Dolby* Home Theatre V4
|
|
LAN support
|
- Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82579V Gigabit Ethernet Controller
|
|
Peripheral interfaces
|
- Six SuperSpeed* USB 3.0 ports (4 external/2 header)
- 10 USB 2.0 ports (four external (two hi-current/fast charging) / six internal)
- Four Serial ATA 6.0 Gb/s ports
- Three Serial ATA 3.0 Gb/s ports, one eSATA 3.0 Gb/s
- Two IEEE 1394a ports/headers (one external/one header)
- Consumer infrared receiver and emitter
|
|
Expansion capabilities
|
- Two PCI Express* 3.0 x 16 discrete graphics card connector
- Three PCI Express 2.0 x 1 connectors
- Two Conventional PCI bus connectors
|
