Shuttle XS35GS V3 Desktop Barebone
  • Intel Atom D2700(2.13GHz), 2xDDR3 SO-DIMM, NO RAM, NO HDD, NO ODD, 1x Mini-PCI-E Slot, VGA, LAN, WiFi-n, HDMI
  • NO O/S

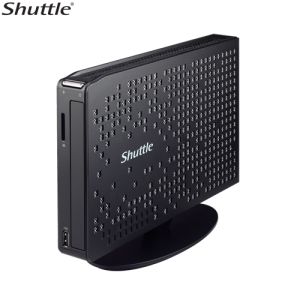

IMG 1 of 1
No Longer Available
Part Number:
190515
(?) Brand:
Shuttle Web Site
Manuf No:
XS35GS-V3
XS35GSV3
Shipping Weight:
4 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
XS35GSV3, XS35GS-V3

XS35GS V3


Features:

The Power-Packed Nettop

The Shuttle XS35GS V3 comes with Intel Atom Processor D2700 based on Intels next generation Cedar Trail platform which carries dual processing cores. The XS35GS V3 carries an AMD Radeon HD 7410M graphics card which makes it a powerful nettop to handle heavier-duty graphics. It perfectly hits the balance between performance and energy efficiency. In addition, the slim PC XS35GS V3 is designed as a space saver that fits easily into any environment with the ability to be mounted behind a LCD TV or LCD monitor with VESA mount capability. Using passive cooling, the XS35GS V3 is quieter than most desktop computers. Its not only quiet and low in energy use, but also dust-free and virtually maintenance free. The XS35GS V3 is a good solution for users who look for a low-power media center PC.

Intel Atom Processor D2700


The Intel Atom Processor D2700 delivers low power, enabling small, quiet desktops in new places around the home. The Intel Atom processor, combined with the Intel NM10 Express Chipset, offers best-in-class capabilities. Getting online, having fun and getting things done are just like a breeze.

Graphics Performance Upgraded


The XS35GS V3 is equipped with an AMD Radeon HD 7410M graphics card that satisfies heavier load in graphics design and some 3D gaming. It not only provides better performance for 3D rendering and HD video playback, but also supports digital 7.1 channel audio output via HDMI. With support for Microsoft DirectX 11, the XS35GS V3 gets amazing visual quality, improved efficiency and dramatic gaming performance.

Dual Display Support


The XS35GS V3 supports HDMI and D-sub dual monitor video outputs which allow users to switch between mirrored and extended desktop mode on external displays. Designers and those in other professions can get more work done and has an increase in productivity.

Fanless Design- Quiet, Dust-Free, and Energy-Efficient


Its a conventional way using a fan as a cooling solution to dissipate heat away inside a computer. It usually generates noise, draws dust into the system as well as takes up the inner space. The Shuttle XS35GS V3 is completely fanless to ensure the passively cooled, quiet, dust-free and low in energy use operating environment.

VESA Mount Capability


Designed to fit easily into any environment, the Shuttle XS35GS V3 Slim PC is capable of mounting to the rear of a LCD monitor or a TV with the standard of VESA mounting. This space saving capability makes it easy to blends into any of your environment.

Generous supply of I/O ports

The XS35GS V3 also features with 5 USB ports, 4-in-1 card reader, HDMI and D-sub connector and Kensington lock for further applications. Whether you are in the living room, bedroom, study room or office, the Shuttle XS35GS V3 is touted as the ideal PC for your everyday computing.

Specifications:

FORM FACTOR 1.5 L slim form factor
PROCESSOR Intel Atom D2700 dual core processor
CHIPSET Intel NM10 Express Chipset
MEMORY 2x DDR3 SO-DIMM slot supports up to 4GB DDR3 1066 MHz
VGA Built-in AMD Mobility Radeon HD7410M GPU
Support 1080P and Blue-ray playback
Support D-sub + HDMI dual display
AUDIO IDT92HD81
2.1 channel High Definition Audio
ETHERNET JMC251
Supports 10/100/1000 Mb/Sec.
802.11b/g/n WLAN support
STORAGE INTERFACE Support 1 x 2.5" SATA HDD, 5400 / 7200RPM
Support 1 x SDHC/SD/MS/MS Pro Memory Card reader
FRONT PANEL (1) Power button
(1) Power LED
(1) HDD LED
(1) USB 2.0 port
(1) 4 in 1 card reader
(1) ODD bay
BACK PANEL (1) RJ45 LAN port
(1) D-sub VGA port
(1) HDMI
(4) USB 2.0 ports
(1) Line out port
(1) MIC in port
(1) Kensinton lock
(1) DC-in
DIMENSIONS 252(L) x 38.5(W) x 162(H) mm
POWER Automatics Voltage adjustment between 100 and 240VAC 50/60Hz,
40 Watts, 2 Pins
ACCESSORIES PV01 VESA mount accessory
EXPANSION SLOT (1) Mini-PCIE slot (default for WLAN)


No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB
