Media authentication and encryption features on the Cisco Systems portfolio of integrated services routers help ensure that voice conversations are protected from eavesdropping, information theft, mediatampering, toll fraud, denial of service and other attacks.
The Cisco Unified Communications system of voice, video and IP communications products and applications enables organizations to communicate more effectively-enabling them to streamline business processes, reach the right resource the first time and impact the top and bottom line. The Cisco Unified Communications portfolio is an integral part of the Cisco Business Communications Solution-an integrated solution for organizations of all sizes which also includes network infrastructure, security, and network management products, wireless connectivity, andalifecycle services approach, along with flexible deployment and outsourced management options, end-user andpartner financing packages, and third party communications applications.
Product Overview
Businesses are moving to IP communications to reduce operational expenses, increase productivity, and simplify network administration. The Cisco integrated services router portfolio i.e., Cisco 1861, Cisco 2800 Series, Cisco 2900 Series, Cisco 3800 Series, Cisco 3900 Series and VG-2xx Series platforms deliver powerful and scalable Unified Communications solutions for the most demanding enterprise environments.
A wide range of Unified Communications security features are available on Cisco integrated services routers to deliver high levels of security protection for businesses deploying IP communications solutions. The Cisco multilayer offering, based on the self-defending network model, starts with the network itself and extends to the endpoints and applications. The SAFE Blueprint from Cisco presents a detailed framework of best practices and tools to help secure business networks.
Media encryption using Secure Real-Time Transport Protocol (SRTP) delivers protection by encrypting the voice conversation, rendering it unintelligible to internal or external eavesdroppers who have gained access to the voice domain. Designed for voice packets, SRTP supports the AES encryption algorithm and is an IETF RFC 3711 standard.
Media encryption on Cisco routers works together with Cisco Unified Communications Manager (CUCM) software and the media encryption feature on Cisco Unified IP phones to secure both gateway-to-gateway calls and IP phone-to-gateway calls. This enables secure analog phone calls, secure fax calls, or secure calls among IP Phones and/or between an IP phone and the gateway, depending on the gateway interface type the media is terminated on. Voice encryption keys derived by Cisco Unified Communications Manager are securely sent by encrypted signaling path to Cisco Unified IP phones and Cisco Unified Border Element (CUBE) through the use of Transport Layer Security (TLS) and to gateways over IP Security (IPSec) protected links.
Media encryption features on Cisco routers are available beginning with Cisco IOS Software release 12.3(11)T2 on 1861 & 2800/3800 series platforms with an upgrade to the Advanced Enterprise Services or Advanced IP Services IOS Software Feature Sets, and Universal Image release 15.0(1)M on 2900/3900 series platforms with UC and Security License PAK. The features are enabled on digital signal processing modules (DSPs) available on the PVDM2, PVDM3 and some NMs.
Features Table
Table 1 provides details on the media authentication and encryption solution.
Table 1. Features Table
|
Authentication and
Encryption Features
|
Media encryption of voice RTP streams using SRTP
Exchange of RTP Control Protocol (RTCP) information using secure RTCP
SRTP to RTP fallback for calls between secure and insecure endpoints
Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WANfailover
Compressed RTP (CRTP) supported with media encrypted calls using SRTP
|
|
Authentication and
Encryption Algorithm
|
Supports AES-128 encryption algorithm
Supports the HMAC secure hash authentication algorithm (SHA 1)
|
|
Signaling Authentication andEncryptionFeatures
|
Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways
IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS
(Transport Layer Security)
|
|
Protocol Support
|
MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager)
H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability isoptional)
Session Initiation Protocol (SIP)
SCCP (Cisco Unified IP Phone) in SRST mode
|
|
Module Support
|
Any module that has PVDM2, PVDM3 and/or built-in DSP
|
|
Codec Support
|
G.711, G.729A, and G.729
|
Applications
Media authentication and encryption on Cisco integrated services routers, together with media encryption on CiscoUnified IP phones and Cisco Unified Communications Manager, provides a highly secure environment for IPcommunications across a WAN or LAN. As illustrated in Figure 1, SRTP is used to encrypt voice calls placed on voice gateway network modules in branch office A. This provides secure calls from analog phone to analog phone, orfax machine to fax machine, within the office. Similarly, secure calls are enabled from time-division multiplexing (TDM) endpoints or analog phones at branch office A to Cisco Unified IP phones at the headquarters. The signaling between the gateway at branch office A and Cisco Unified Communications Manager is secured using IPSec, and the signaling between the IP phones at headquarters and Cisco Unified Communications Manager is secured using TLS.

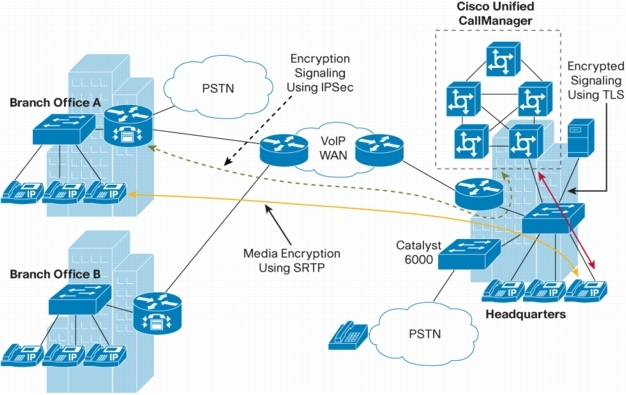

Figure 1. Media Authentication and Encryption
Key Features and Benefits
Media Authentication and Encryption
Media encryption currently delivers end-to-end encryption for voice calls between Cisco Unified IP phones. Theintroduction of media encryption on Cisco routers adds the ability to place secure IP phone-to-gateway andgateway-to-gateway calls. Callers can now place encrypted calls to the PSTN gateway using IETF RFC3711 standards-based SRTP. SRTP encrypts only the payload of a voice packet without adding additional encryption headers. Because of this, an SRTP-encrypted voice packet is almost indistinguishable from an RTP voice packet, allowing features like quality of service (QoS) and compressed RTP to be supported without any additional development or packet manipulation. In addition, SRTP uses the largest practical key size supported by the AES encryption standard for increased security. Voice encryption keys are generated for each call, ensuring a higher levelof security protection. Media authentication also validates the identity of the devices encrypting the calls.
Media encryption using SRTP is suitable for voice privacy and confidentiality on the LAN to protect against internal threats. In addition, media encryption can also be delivered across an IP WAN or the Internet, using the same VPN infrastructure deployed for data.
Signaling Authentication and Encryption
Signaling authentication and encryption between the gateways/CUBE and Cisco Unified Communications Manager isprotected using IPSec. This ensures that signaling information such as dual tone multifrequency (DTMF) digits, passwords, PINs, and voice encryption keys are secure. Both software-based IPSec, available in Cisco IOS Software, and hardware-based IPSec using the AIM-VPN modules are supported.
Scalability of Encrypted Calls
SRTP media encryption is performed on DSP modules and not on the router CPU. This enables efficient scalability as increasing the number of voice gateway interfaces with DSPs, or increasing the number of DSPs integrated on the platforms (such as on the integrated services routers), increases the number of DSPs available for secure calls.
Efficient Delay Optimization and Channel Capacity Impact
No additional call setup delays are introduced with encrypted calls, as the key exchange is completed as part of the normal call setup and no extra messages are introduced. Voice media delay is also not introduced because SRTP media encryption is performed in the DSP, and not by the router CPU or a separate encryption engine that processes the completed voice packet.
There is no channel capacity impact for encrypted calls in G.729 and G.729a modes, and minimal impact in G.711 mode (Table 2).
Table 2. Channel Impact per DSP (ex: PVDM2-16)
|
Codec
|
Regular Voice Call/DSP
|
Encrypted Voice Call/DSP
|
|
G.711
|
16 calls
|
10 calls
|
|
G.729a
|
8 calls
|
8 calls
|
|
G.729
|
6 calls
|
6 calls
|
Management Features
Media authentication and encryption is easily configured on Cisco routers using the command-line interface (CLI). Inaddition, features such as a lock icon indicator on Cisco IP Phones provide visual confirmation of encryption in calls to supported gateways. If a device within the call flow does not support media encryption or the security is compromised, the lock icon disappears. CLI commands are also available to confirm and provide details about anencrypted call and to debug calls.
Security in Cisco Unified Survivable Remote Site Telephony Mode
Cisco Unified Survivable Remote Site Telephony provides call processing redundancy when connectivity to CiscoUnified Communications Manager is lost. Media authentication and encryption is supported in Cisco Unified Survivable Remote Site Telephony mode, beginning with Cisco IOS Software release 12.3(14)T for ISR and 15.0(1)M for ISR-G2, providing the ability to place secure calls within a remote branch office when the WAN link or Cisco Unified Communications Manager goes down. When the WAN link or Cisco Unified Communications Manager is restored, Cisco Unified Communications Manager resumes secure call handling capabilities. The signaling from theCisco Unified Survivable Remote Site Telephony router to the IP phones is encrypted using TLS.
SRTP AND IPSEC VPNS
SRTP and IPSec are complementary VPN technologies. One of the key differences is that SRTP can deliver encryption from end to end, that is, from IP phone to IP phone, whereas IPSec VPN is a router-to-router tunnel-based encryption. In addition, SRTP encrypts only voice packets, whereas IPSec VPN tunnels can transport data, voice, and video (and thus are called V3PN).
This means that SRTP can add additional protection for voice traffic using an IPSec VPN.
For enterprises and small and medium-sized businesses that have a trusted WAN network, SRTP can be used toencrypt voice end to end across this network. However, most of these businesses conduct business across the Internet or across a WAN that is managed by a service provider. Therefore, the WAN may be insecure, and a VPN tunnel is used to transport data securely between branch offices. SRTP can be used to secure voice in the WAN across the same IPSec VPN network that is used for data. This is illustrated in Figure 2.

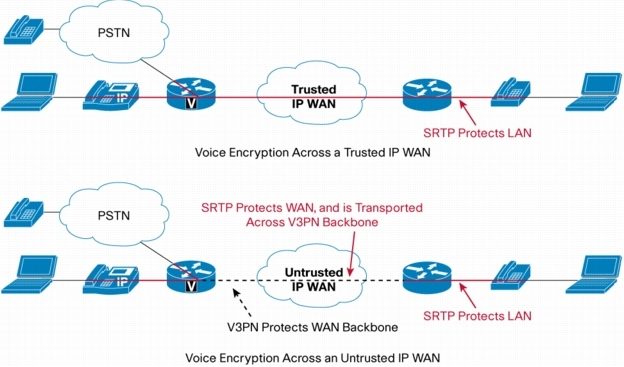

Figure 2. Secure RTP and V3PN
Feature Availability
Table 3. Feature Availability
|
Protocol/Feature Support
|
Platform Support (with Supported Modules in Table 4)
|
Release
|
|
MGCP Gateways (MGCP 0.1)
|
Cisco 2901, 2911, 2921, 2951, 3925, and 3945 integrated services routers (ISR-G2)
Cisco 1861, 2801, 2811, 2821, 2851, 3825, and3845integrated services routers
Cisco AS5300/AS5400 Series Gateway
Cisco VG202/204, VG224 Analog Phone Gateway
|
ISR-G2: Cisco IOS Software Release 15.0(1)M
ISR: Cisco IOS Software Release 12.3(11)T2 andCiscoUnified Communications Manager 4.1
|
|
H.323 Gateways, SIP Gateways and CUBE
|
Cisco 2901, 2911, 2921, 2951, 3925, and 3945 integrated services routers (ISR-G2)
Cisco 1861, 2801, 2811, 2821, 2851, 3825, and3845integrated services routers
Cisco AS5300/AS5400 Series Gateway
Cisco VG224 Analog Phone Gateway
Cisco IAD 2430 Series Integrated Access Device
CUBE is supported in both flow-through and flow aroundmode.
|
ISR-G2: Cisco IOS Universal Software Release 15.0(1)M
ISR: Cisco IOS Software Release 12.4(6)T1
Interworking with Cisco Unified Communications Manager 5.0 is supported, but is optional
|
|
SCCP IP Phones in
Cisco Unified SRST Mode
|
Cisco 2901, 2911, 2921, 2951, 3925, and 3945integrated services routers (ISR-G2)
Cisco 2801, 2811, 2821, 2851, 3825, and3845integrated services routers (ISR)
|
ISR-G2: Cisco IOS Software Release 15.0(1)M
ISR: Cisco IOS Software Release 12.3(14)T andCiscoUnified Communications Manager 4.1
|
Cisco Unified Communications Services and Support
Using the Cisco Lifecycle Services approach, Cisco Systems and its partners offer a broad portfolio of end-to-end services to support the Cisco Unified Communications system. These services are based on proven methodologies for deploying, operating, and optimizing IP communications solutions. Upfront planning and design services, for example, can help you meet aggressive deployment schedules and minimize network disruption during implementation. Operate services reduce the risk of communications downtime with expert technical support. Optimize services enhance solution performance for operational excellence. Cisco and its partners offer a system-level service and support approach that can help you create and maintain a resilient, converged network that meets your business needs.
Conclusion
Media authentication and encryption provides an additional layer of security for enterprises and small and medium-sized businesses deploying IP communications. Voice conversations terminated on TDM or analog voice gateway ports or Cisco Unified IP phones are protected from eavesdropping, information theft, media tampering, toll fraud, denial of service and other attacks within the LAN and WAN using standards-based encryption.
Product Compatibility
Table 4. Product Compatibility
|
Product Compatibility
|
Cisco 2901, 2911, 2921, 2951, 3925 and 3945 integrated services routers (ISR-G2)
Cisco 1861, 2801, 2811, 2821, 2851, 3825 and 3845 integrated services routers (ISR)
Cisco VG224 Analog Phone Gateway
Cisco IAD 2430 Series Integrated Access Device
Cisco Unified Communications Manager 4.1 for MCGP and SCCP (Cisco Unified SRST mode)
Cisco Unified Communications Manager 5.0 (H.323)
Cisco Unified Communications Manager 6.0 (SIP)
|
|
Software Compatibility
|
Universal Image with UC and Security License PAK
Advanced IP Services Image
Advanced Enterprise Services Image
|
|
Protocols
|
MGCP 0.1, H.323, SIP, SCCP (SRST mode)
|
Ordering Information
To place an order, contact your Cisco representative or visit the Cisco Website. See Table 5 for ordering information.
Table 5. Bundles for Ordering Information
|
Bundle
|
Description
|
|
Platform: 3900 Series Router
|
|
C3925-VSEC/K9
|
Cisco 3925 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK
|
|
C3945-VSEC/K9
|
Cisco 3945 Voice Sec. Bundle, PVDM3-64, UC and SEC License PAK
|
|
Platform: 3800 Series Router
|
|
C3825-35UC-VSEC/K9
|
3825 Voice Security Bundle with CME, CUE, and Phone licenses for 35 users, PVDM2-64,NME-CUE, Adv IP Serv, 128MB Flash and 512MB DRAM
|
|
C3845-35UC-VSEC/K9
|
3845 Voice Security Bundle with CME, CUE, and Phone licenses for 35 users, PVDM2-64,NME-CUE, Adv IP Serv,128MB Flash and 512MB DRAM
|
|
C3845-H-VSEC/K9
|
Cisco 3845 HVSEC Bundle with IOS Advanced IP Services, PVDM2-64, AIM-VPN/SSL-3, 100 User SRST License, 25 User SSL VPN License, 512 MB Flash/1GB DRAM
|
|
C3825-H-VSEC/K9
|
Cisco 3825 HVSEC Bundle with IOS Advanced IP Services, PVDM2-64, AIM-VPN/SSL-3, 100 User SRST License, 25 User SSL VPN License, 512 MB Flash/1GB DRAM
|
|
C3825-VSEC/K9
|
3825 Voice Security Bundle, PVDM2-64, Adv IP Serv, 128F/512D
|
|
C3825-VSEC-CCME/K9
|
3825 VSEC Bundle with PVDM2-64, FL-CCME-168, Adv IP Serv, 128F/512D
|
|
C3825-VSEC-SRST/K9
|
3825 VSEC Bundle with PVDM2-64, FL-SRST-168, Adv IP Serv, 128F/512D
|
|
C3845-VSEC/K9
|
3845 Voice Security Bundle, PVDM2-64, Adv IP Serv, 128F/512D
|
|
C3845-VSEC-CCME/K9
|
3845 VSEC Bundle with PVDM2-64, FL-CCME-240, Adv IP Serv, 128F/512D
|
|
C3845-VSEC-SRST/K9
|
3845 VSEC Bundle with PVDM2-64, FL-SRST-240, Adv IP Serv, 128F/512D
|
|
Platform: 2900 Series Router
|
|
C2901-VSEC/K9
|
Cisco 2901 Voice Sec. Bundle, PVDM3-16, UC and SEC License PAK
|
|
C2911-VSEC/K9
|
Cisco 2911 Voice Sec. Bundle, PVDM3-16, UC and SEC License PAK
|
|
C2921-VSEC/K9
|
Cisco 2921 Voice Sec. Bundle, PVDM3-32, UC and SEC License PAK
|
|
C2951-VSEC/K9
|
Cisco 2951 Voice Sec. Bundle, PVDM3-32, UC and SEC License PAK
|
|
Platform: 2800 Series Router
|
|
C2851-35UC-VSEC/K9
|
2851 Voice Security Bundle w/ CME, CUE, and Phone licenses for 35 users, PVDM2-48, NME-CUE, Adv IP Serv,128MB Flash and 256MB
|
|
C2821-25UC-VSEC/K9
|
2821 Voice Security Bundle w/ CME, CUE, and Phone licenses for 25 users, PVDM2-32, AIM-CUE, Adv IP Serv,128MB Flash and 256MB DRAM
|
|
C2811-15UC-VSEC/K9
|
2811 Voice Security Bundle with CME, CUE, and Phone licenses for 15 users, PVDM2-32, AIM-CUE, Adv IP Serv,128MB Flash and 256MB DRAM
|
|
C2801-10UC-VSEC/K9
|
2801 Voice Security Bundle with CME, CUE, and Phone licenses for 10 users, PVDM2-32, AIM-CUE, Adv IP Serv,128MB Flash and 256MB DRAM
|
|
C2851-H-VSEC/K9
|
Cisco 2851 HVSEC Bundle with IOS Advanced IP Services, PVDM2-48, AIM-VPN/SSL-2, 50 User SRST License, 10 User SSL VPN License, 256 MB Flash/512 MB DRAM
|
|
C2821-H-VSEC/K9
|
Cisco 2821 HVSEC Bundle with IOS Advanced IP Services, PVDM2-32, AIM-VPN/SSL-2, 50 User SRST License, 10 User SSL VPN License, 256 MB Flash/512 MB DRAM
|
|
C2811-H-VSEC/K9
|
Cisco 2811 HVSEC Bundle with IOS Advanced IP Services, PVDM2-16, AIM-VPN/SSL-2, 35 User SRST License, 10 User SSL VPN License, 256 MB Flash/512 MB DRAM
|
|
C2801-H-VSEC/K9
|
Cisco 2801 HVSEC Bundle with IOS Advanced IP Services, PVDM2-8, AIM-VPN/SSL-2, 25 User SRST License, 10 User SSL VPN License, 128 MB Flash/384 MB DRAM
|
|
C2801-VSEC/K9
|
2801 Voice Security Bundle, PVDM2-8, Adv IP Serv, 64F/256D
|
|
C2801-VSEC-CCME/K9
|
2801 VSEC Bundle with PVDM2-8, FL-CCME-24, Adv IP Serv, 128F/256D
|
|
C2801-VSEC-SRST/K9
|
2801 VSEC Bundle with PVDM2-8, FL-SRST-24, Adv IP Serv, 128F/256D
|
|
C2811-VSEC/K9
|
2811 Voice Security Bundle, PVDM2-16, Adv IP Serv, 64F/256D
|
|
C2811-VSEC-CCME/K9
|
2811 VSEC Bundle with PVDM2-16, FL-CCME-36, Adv IP Serv, 128F/256D
|
|
C2811-VSEC-SRST/K9
|
2811 VSEC Bundle with PVDM2-16, FL-SRST-36, Adv IP Serv, 128F/256D
|
|
C2821-VSEC/K9
|
2821 Voice Security Bundle, PVDM2-32, Adv IP Serv, 64F/256D
|
|
C2821-VSEC-CCME/K9
|
2821 VSEC Bundle with PVDM2-32, FL-CCME-48, Adv IP Serv, 128F/256D
|
|
C2821-VSEC-SRST/K9
|
2821 VSEC Bundle with PVDM2-32, FL-SRST-48, Adv IP Serv, 128F/256D
|
|
C2851-VSEC/K9
|
2851 Voice Security Bundle, PVDM2-48,Adv IP Serv,64F/256D
|
|
C2851-VSEC-CCME/K9
|
2851 VSEC Bundle with PVDM2-48, FL-CCME-96,Adv IP Serv,128F/256D
|
|
C2851-VSEC-SRST/K9
|
2851 VSEC Bundle with PVDM2-48, FL-SRST-96,Adv IP Serv,128F/256D
|
|
Platform: 1800 Series Router
|
|
C1861-4F-VSEC/K9
|
1861,8-user CME,CUE,Ph Lic,4FXS,4FXO,8xPOE,HWIC slot,Adv IP
|
|
C1861-2B-VSEC/K9
|
1861,8-user CME,CUE,Ph Lic,4FXS,2BRI,8xPOE,HWIC slot,Adv IP
|
Cisco and Partner Services for the Branch
Services from Cisco and our certified partners can help you transform the branch experience and accelerate business innovation and growth in the Borderless Network. We have the depth and breadth of expertise to create a clear, replicable, optimized branch footprint across technologies. Planning and design services align technology with business goals and can increase the accuracy, speed, and efficiency of deployment. Technical services help improve operational efficiency, save money, and mitigate risk. Optimization services are designed to continuously improve performance and help your team succeed with new technologies. For more information, visit https://www.cisco.com/go/services.
For More Information
For more information about the Cisco media authentication and encryption feature, visit the following links or contact your local account representative.
Secure Unified Communication: https://www.cisco.com/go/secureuc
