All stock codes associated to this product
CC100, 1082509, 9317773008333

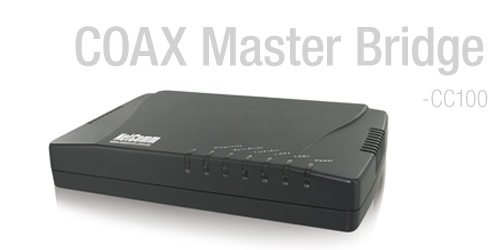

CC100Coax Master Bridge
- Use a multi-dwelling buildings existing coaxial cable network as a distribution backbone
- Built-in filter to eliminate noise from the TV/antenna
- Endpoint service and bandwidth control
- Remote web configuration and diagnosis
- QoS prioirt and mapping support
- Working in unison with the CC101, can be configured with a billing solution
The CC100 Coax MDU Master Bridge allows the management of a multi-dwelling building to supply triple play broadband service to residents/guests over their existing coaxial cable network. No additional wiring is necessary as the CC100 takes a broadband signal, together with a TV signal, and distributes it together over the coaxial network where it becomes available at each connected coax port.
When paired with one of NetComms CC101 Coax Slave Ethernet Bridges, the signal that is sent around the coax network is made available to be redistributed at the resident/guests room.
TECHNICAL SPECIFICATIONS
CC101
Network Standards
HomePNA 3.1 over Coaxial Cable (HCNA)
IEEE 802.3 10M Ethernet
IEEE 802.3u 100M Fast Ethernet
IEEE 802.3x Flow Control
Connectors
Ethernet
Two RJ-45 Connectors
HCNA
Two F-Type Female Coax Connectors, One for HCNA, the Other for TV
Transmission Power and Spectrum
0 +/- 1 dBm
4 ~ 20MHz
Transmission Range and Distance
Dynamic Attenuation Range > 50dB
Up to 4000 Feet ( -176dBm/Hz Noise Floor) on RG59 Wire
Quality of Service
Priority Mapping Based on IEEE 802.1p
Guaranteed QoS based on HomePNA3.1 Parameterized QoS
Fast Ethernet Interface
10/100Mbps Auto Negotiation
MDI/MDI-X Auto Crossover
Management
Service Enable/Disable Control
Bandwidth Control
Queuing Scheme Based on 802.1p/TOS
TagVLAN ID Tag/UnTag or Pass Through
IGMP Snooping Control (V1 & V2)
Statistics and Status of Ethernet Ports
Indicators
“Power” LED
HCNA “Link/Activity” LED,
Ethernet “Link/Activity” LED x 2
Environ mental Conditions
Operating Temperature
0OC ~ 40OC (32OC ~ 104OC)
Storage Temperature
–10OC ~ 70OC (14OC ~ 158OC)
Operating Humidity
10% ~ 95%, Non-condensing
Power Requirement
External Power Supply : 5 VDC
Power Consumption : < 4 Watts
Physical Dimension
114mm (W) x 67mm (D) x 25mm (H)
Unit Weight
120g

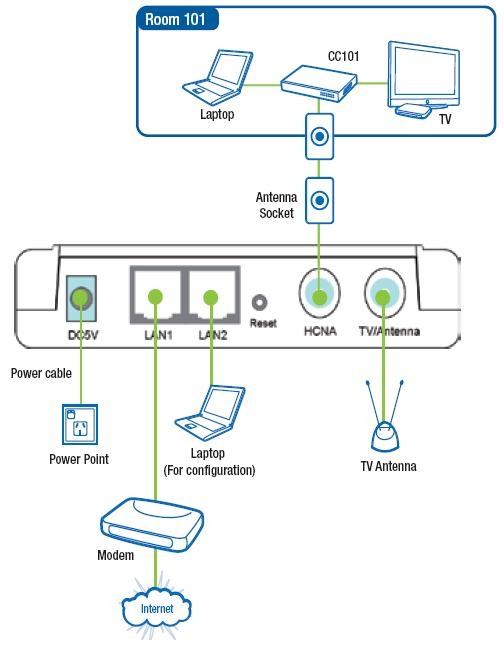

Networking
