DS112j
Budget-friendly 1-bay NAS server for Home Users
Synology DiskStation DS112j is designed to provide a simple solution for file backup, storage, and sharing in your home environment with low power consumption. Running on DiskStation Manager (DSM) operating system, it delivers ease of use and variety of personal entertainment features.
- 24/7 Personal Cloud
- 2.5 and 3.5 HDD Support
- Hardware Encryption Engine
- Cool and Quiet Design
- Power-saving with only 12.1 Watts in Operation
- Running on Synology DiskStation Manager (DSM)
Overview
Your Personal Cloud
With Synology DS112j, you can centralize all the data and files and share with your family members within local network. If you find this way of managing files particularly useful and interesting, you can have your own personal cloud so the sharing coverage can be extended to the Internet.
The EZ-Internet wizard guides you through all the steps necessary to establish remote Internet access to your Synology DS112j. You will be allowed to remotely access your DS112j anywhere within minutes, and it is just that easy.
If you are always on the move, Synology provides a handy app, DS file for iPhone , iPad and Android users. Anything stored on Synology DS112j can now be accessed remotely using DS file via the Internet.
Versatile Multimedia Center for Home
With the built-in media server on the DS112j, you can stream digital multimedia content from a Synology DiskStation to a media device such as a stereo system, Sony PlayStation 3 and Microsoft XBox 360. You can also stream videos and music to a DLNA/UPnP compatible TV set so you can enjoy your favorite movies or TV shows that are stored on your DiskStation. Your living room just got better.
For fully digitized music listening experience from the comfort of your couch, by connecting DS112j to a home stereo system and using DS audio App for iPad, iPhone and Android, users can control music playback with simplicity.
Your 24x7 Download Server
Download Station functions as a 24x7 BT, FTP, HTTP, eMule, and NZB download center without a PC. The eMule & BT search engine allows search-n-download capability without installing additional desktop applications.
RSS feed feature will bring the latest updates directly to you. You can subscribe to multiple RSS feeds that list the information of all your favorite downloads, and your download experience is entirely automated.
Share Your Memories to Friends
Photo Station simplifies photo, video, and blog sharing to the public. Features such as theme personalization, blog, and user privilege settings make Photo Station your state-of-the-art lifestyle sharing center on the Internet. Photo Station syncs the album automatically to Facebook, so it is now even more closely intertwined with your social life.
Back up All Your Important Files
The Synology DS112j offers a centralized backup target to all your PC/Mac computers in the house. PC Users can back up their data to the Synology DS112j using the free Synology Data Replicator software, while Mac OS X users enjoy native Apple Time Machine integration. A web-based backup wizard is provided for backing up data in the Synology DS112j to another Synology DiskStation or to an external hard drive via USB connection.
Energy Efficient with Cool and Quiet Design
Synology DS112j is designed with energy efficiency in mind. Not only does it provide a larger fan and the smart airflow to keep the system running cool 24/7, its noise dampening design makes it really quiet (17.1 dB) compared to PC counterparts. The support of multiple scheduled power on/off and hard drive hibernation can further reduce power consumption and operation cost.
All Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology acknowledges the responsibility as a global citizen to continually work to reduce the environmental impact of every product produced.
Features:
Synology continues to seek solutions to smooth out the challenges users are confronted with. As a result, DSM is continually evolving to fulfill user expectation. The following topics are our commitment to quick remote connection, easy storage configuration, support in virtualization, and multi-function NAS application.

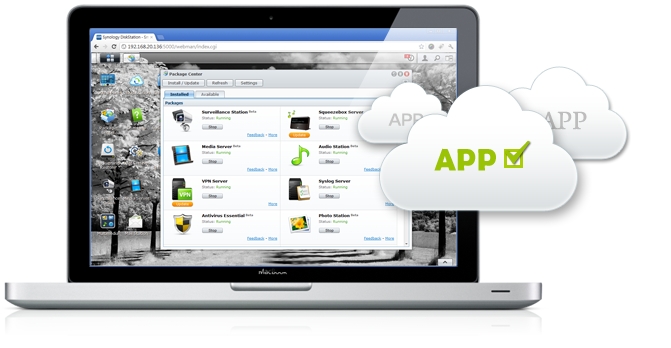

Apps On-Demand
In Synology, we believe in the potential of NAS servers, that it should be flexible and multi-functional. Therefore we have developed a suite of apps for users to install them freely and instantly. A simple click and you are done.
Cloud Station
Each one of us may regularly work with more than one PC. Use Cloud Station to ensure that a copy of the latest file is always available, no matter which PC you are using. Even when theres no internet connection, your access will not be down.
Synology ezCloud
Synology ezCloud helps first-time users to open up smooth remote connection service. With QuickConnect Service, you can get files anywhere and no router set up is required. You can also register a free domain name with Synology DDNS Service.

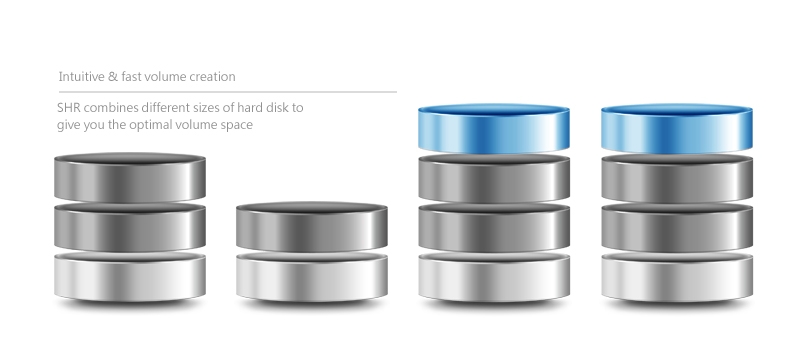

Synology Hybrid RAID
Synology Hybrid RAID (SHR) is an optimized volume type. No need to study the difference between RAID types and requirements, SHR helps you keep everything simple and instant.

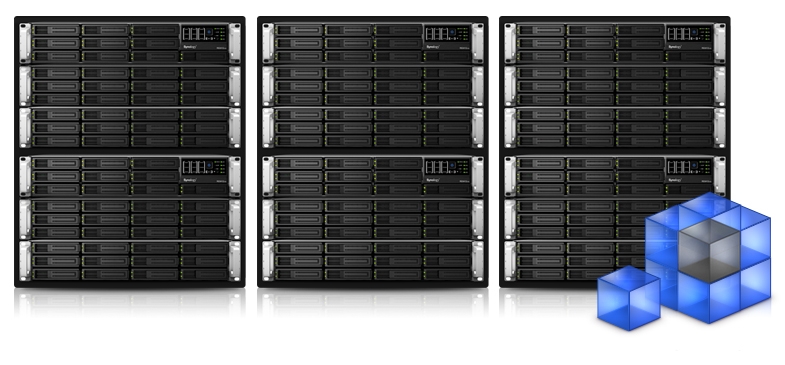

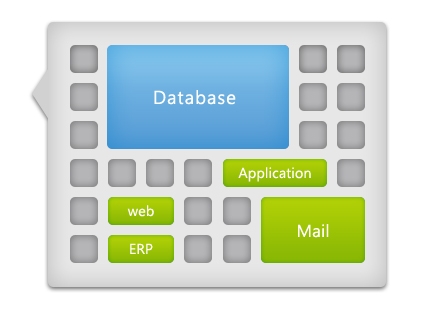

Virtualization Support
DSM supports all major virtualization solutions. We strive to provide the most up to date support, including VMware vSphere 5. Such commitment allows businesses to be more flexible with their IT infrastructure deployment.
TV, DLNA devices, computers, and stereos, what do these have in common with you and your family? Connection. DSM makes sharing files between family members a breeze and allows living room TV to play out the same file that your bro is watching on his laptop. In short, its all about connection.
Home Applications
Install applications via Package Center to enrich your digital life. Make all multimedia contents connected with Audio Station, Media Server, iTunes, Photo Station, and Download Station. Print out hard copies wirelessly since DiskStation connects the printer for you.
Easy Setup
DSM simplifies every step for you to construct a DiskStation ready to use. Just follow the step-by-step guidelines to intuitively set up the network, apply account & privileges, and establish accessible storage. Synology makes considerate DiskStations for you.
File Sharing
Share files across Windows, Mac & Linux platforms and navigate seamlessly. Use File Station and FTP to share resources across the network. For files stored on Cloud Station, all changes made can be automatically synced and pushed to any PC computer at hand.
Backup
Back up important files or the system image directly using Windows and Mac computers. You can easily backup data from external storage devices and vice versa with a few clicks. Time Backup snapshots particular points of time to keep multiple versions. Its that easy.

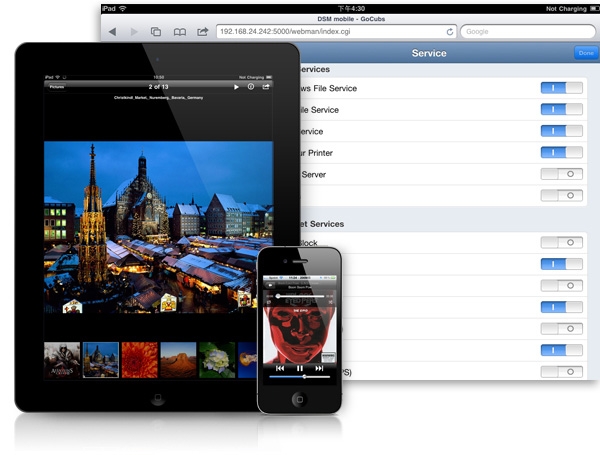

Mobile Support
Carry terabytes of music, videos, photos, and documents with you all the time. With DS audio, DS photo+, and DS file, you can always access files stored on DiskStation on-the-go. And, print off a photo or a document is just a tap on your mobile device.
Business's requirement for efficiency and productivity is at an all-time high. This means seamlessly integration with existing infrastructure, different ways to access data, and comprehensive data protection scheme. DSM offers complete support for Windows ADS and LDAP, a suite of value add applications to facilitate business need, as well as tools to secure the system's health.
Storage & iSCSI
Use Storage Manager to create multiple volumes on a RAID and iSCSI LUN, expand storage space, setup RAID redundancy. Raise storage utilization and deploy effectively - make every inch of your storage space count.
File Sharing
Synologys file sharing solution works on Windows, Mac & Linux platform, so your business will have a seamless sharing environment. Use File Station, remote folder, virtual drive and FTP to share resources across network and the Internet.
Data Backup
Back up important data in different ways with server backup. Keep configuration settings intact and restore them for migration or upgrade. Time Backup offers snapshot, version control and an intuitive interface that makes backup easy.
Business Applications
Install applications via Package Center to enhance your business operations. Whether its building a VPN environment, setting up a mail service, hosting printer server or managing server logs. Antivirus Essential is a full-fledged shield to protect your system without any cost.
Advanced Account & Privileges
Synologys Windows ADS and LDAP support allows DiskStation to join your directory service, so IT administrator can manage user accounts, groups and network resources effortlessly. With Windows ACL, businesses can have advanced access control to maintain integrity.
Network Configuration
DiskStation supports all network connection modes depending on your business IT structure by PPPoE, router or wireless dongle. Register a Synology domain name with ezCloud. IPv6 support makes you compatible with the shift in Internet-wide infrastructure.
Server Management
DiskStation is equipped with a variety of management tools for your IT administrator. Monitor and manage connections with Connection Manager. Setup notifications so you always know whats up and down. Examine system status with built-in S.M.A.R.T, resource monitor, DSM auto update, logs and much more. Secure your DiskStation with Antivirus Essential, firewall, HTTPS and IP auto block.

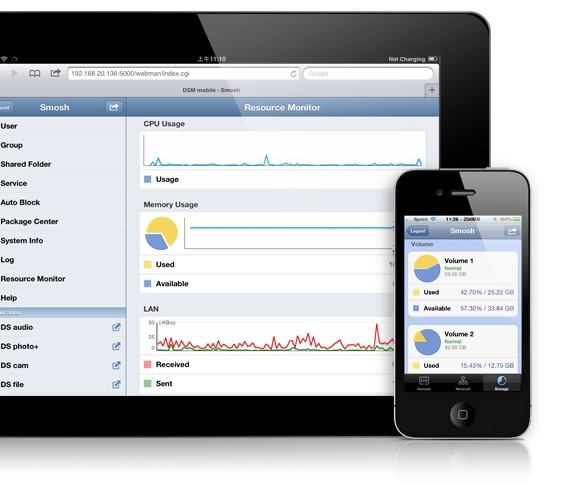

Mobile Support
Increase work mobility with Synology mobile support. Use DSM mobile to manage your DiskStation, including accounts, shared folder privilege, services & applications, security settings and many more. Use DS finder to monitor system status and find a problematic server among hundreds.

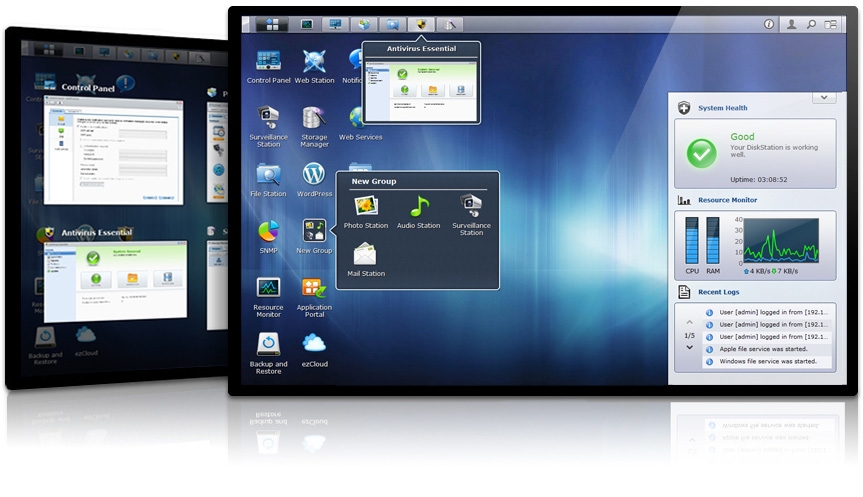

See how the next generation NAS operating system looks. Learn how to multitask and how desktop tools can help you gain productivity.

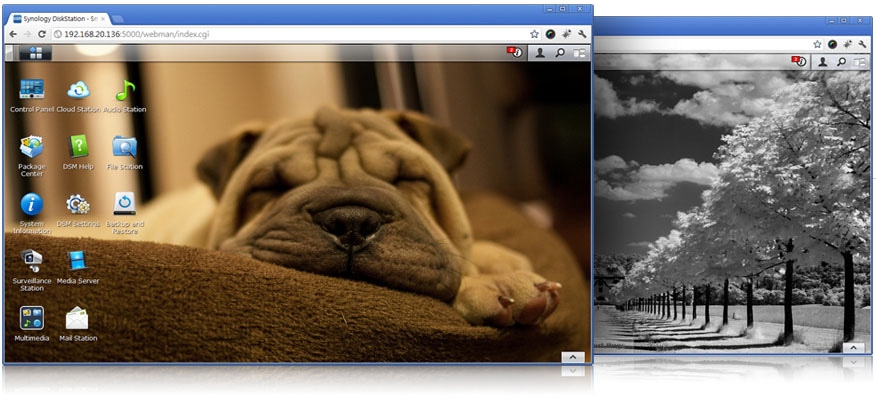

Full Customization
From creating a new look for login page to deciding the application services within DiskStation, administrators are granted with every bit of customization option for top-class user experience.
Multitasking
DiskStation Manager is long-proven to be good at multitasking. See how exactly you can apply this great multitasker to facilitate administration work more effectively. Advantages like uploading files in the background grants you smooth using experience.
Desktop Management Tools
Discover Grouping, Instant View, Pilot View, Widget, and others. The web-desktop is full of tools to help you increase productivity and efficiency.
Specifications:
Hardware
- CPU Frequency : 1.0GHz
- Hardware Encrypted Engine
- Memory : DDR2 128MB
- Internal HDD/SSD : 3.5" or 2.5" SATA(II) X1 (With optional 2.5" Disk Holder)(Hard drive not included)
- Max Internal Capacity : 4TB (1X 4TB HDD)(See All Supported HDD)
- External HDD Interface : USB 2.0 Port X 2
- Size (HxWxD) : 166 X 71 X 224mm
- Weight : 0.72 Kg
- LAN : Gigabit X1
- System Fan : 60x60mm x1
- Wireless Support
- Noise Level : 17.1 dB(A)
- Power Recovery
- AC Input Power Voltage : 100V to 240V AC
- Power Frequency : 50 / 60Hz, Single Phase
- Power Consumption : 12.1W (Access) ; 4.4W (HDD Hibernation)
- Operating Temperature : 5C ~ 35C (40F ~ 95F)
- Storage Temperature : 15 to 155F (-10 to 70C)
- Relative Humidity : 5% to 95% RH
- Maximum Operating Altitude : 10,000 feet
- Certification : FCC Class B, CE Class B, BSMI Class B
- Warranty : 2 Years
Notes :
- Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the DiskStation front and rear; Background noise: 17.2 dB(A); Temperature: 23.6C; Humidity: 58.2%; More details about dB(A) value, check https://www.memtechacoustical.com/facts.asp
- Power consumption is measured when fully loaded with Western Digital 3TB WD30EZRS hard drive(s).
Applications
- File Station
- Virtual Drive
- Remote Folder
- Mail Server
- Supported Protocols : POP3, SMTP, IMAP
- FTP Server
- Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log
- Web Station
- Virtual Host (up to 30 websites)
- PHP/MySQL
- 3rd-Party Applications Support
- Print Server
- Max Printer # : 2
- Printing Protocols : LPR, CIFS, Apple AirPrint, Google Cloud Print, Multi Functional Print Server(Only PostScript USB printers are supported in MAC environment)
- iOS/Android Applications
- DS photo+
- DS audio
- DS cam
- DS file
- DS finder
- Windows Phone Applications
- DS finder
Add-on Packages
- Surveillance Station
- MAX IP cam # (Licenses required) : 5(1 Free License) (See All Supported IP Cameras)
- Total frame rate (FPS) : 50 FPS @ D1 (NTSC720x480, PAL720x576), 10 FPS @ WXGA (1280x800).
- Directory Server
- LDAP Directory Server
- Backup and Restore LDAP Database
- VPN Server
- Maximum Connections : 5
- VPN Method: PPTP, OpenVPN
- DHCP Server
- Independent DHCP Server on Different Network Interfaces
- Multiple Subnets Support
- Address Reservation
- Syslog Server
- SSL Connection
- Log Rotation: 6 months, 1 year, 2 years, 3 years
- Email Notificaiton
- Mail Station
- Webmail Interface for Mail Server
- Receiving Mails from Multiple POP3 Mailboxes
- Customizable SMTP Server
- Antivirus Essential
- Full System Scan
- Scheduled Scan
- White List Customization
- Virus Definition Auto Update

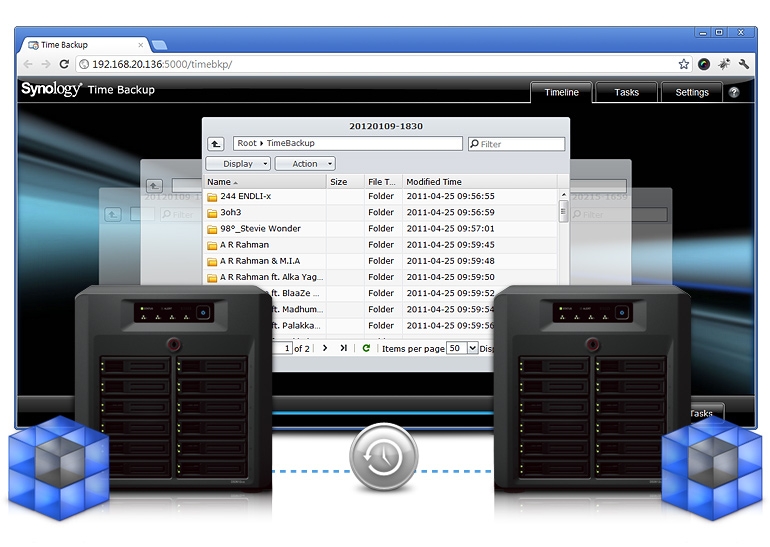

- Time Backup
- Maximum Task Number : 1
- Multiple File Versions Retained
- Instant File Restoration
- Cloud Station
- Maximum User Accounts : 2
- Retain Historical and Deleted File Versions
- HiDrive Backup
- Backup DiskStation data to STRATO HiDrive online storage
- Photo Station
- Supported Image Format : BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)
- Supported Video Format : 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3
User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo Station as compressed Flash video.
- Audio Station
- Supported Audio Format (USB Mode) : AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR
- Supported Audio Format (Streaming Mode) : MP3, M4A, M4B
- Supported Playlist Format : M3U, WPL
- Internet Radio : SHOUTcast, Radioio
- iTunes Server
- Supported Audio Format : MP3, M4A, M4P, WAV, AIF, The music in WAV and AIF format can be streamed, but the metadata (ex: title, album) may not be indexed on the iTunes
- Supported Video Format : M4V, MOV, MP4
- Supported Playlist Format : M3U, WPL
- DLNA/UPnP Media Server
- PS3/Xbox 360 Support
- Supported Audio Format : AAC, AIFF, APE, FLAC, M4A, Apple Lossless, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
- Supported Video Format : 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2, MPEG4, MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD, RMVB (The actual playback capabilities may vary depending on the DLNA/UPnP client)
- Supported Image Format : BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO
- Download Station
- Supported Download Protocols : BT/HTTP/FTP/NZB/eMule
- Maximum Concurrent Download Tasks : 20
- Packages by 3rd Party
- phpMyAdmin
- Webalizer
- WordPress
Notes :
- Surveillance Station throughput is tested with Axis M1011 (640X480) and Axis M1054 (1280X800); FPS set to 10 at every channel; Compression rate: 30%; Video Codec: MJPEG, MPEG4 (640X480 only), H.264; Recording Type is conducted with Motion Detection Recording and Continuous Recording; Actual performance may vary depending on camera settings and DiskStation loading.
General
- Networking Protocols
- CIFS
- AFP
- NFS
- FTP
- WebDAV
- iSCSI
- Telnet
- SSH
- SNMP
- VPN (PPTP, OpenVPN)
- File System
- EXT4
- EXT3(External Disk Only)
- FAT (External Disk Only)
- NTFS (External Disk Only)
- Storage Management
- Max File System Size : 16TB
- Max Internal Volume # : 1
- Max iSCSI Target # : 10
- Max iSCSI LUN # : 10
- Supported RAID Type : Basic
- File Sharing Capability
- Max User Accounts : 512
- Max Groups : 128
- Max Shared Folder : 256
- Max Concurrent CIFS/AFP/FTP Connections : 64
- Windows Access Control List (ACL)
- Windows ADS Domain Integration
- Domain Users login via Samba/AFP/FTP/File Station
- Backup Solutions
- Network Backup
- Local Backup
- Desktop Backup (Window: Synology Data Replicator 3, Mac: Apple Time Machine backup application)
- Shared Folder Sync - Max task number : 2
- Configuraiton Backup
- Security
- FTP over SSL/TLS
- IP Auto-Block
- Firewall
- Encrypted Network Backup over Rsync
- HTTPS Connection
- Management
- Auto DSM Upgrade
- Administrator Group
- Push Notification MSN/Skype/Mobile Devices
- Email/SMS Notification
- Customized User Quota
- Syslog Support
- DDNS Support
- IPv6 Support
- VLAN support
- PPPoE
- Hotspot
- Resource Monitor
- Connection Manager
- UPS Management
- Scheduled Power On/Off
- Custom Management UI HTTP/HTTPS Ports
- HDD Management
- HDD Hibernation
- S.M.A.R.T.
- Dynamic Bad Sector Mapping
- Utilities
- Synology Assistant
- Synology Data Replicator
- Supported Clients
- Windows XP onward
- Mac OS X 10.5 onward
- Ubuntu 9.04 onward
- Supported Browsers
- Chrome
- Firefox
- Internet Explorer : 7, 8, 9
- Safari (MAC) : 4, 5
- Language
- English, Deutsch, Franais, Italiano, Espaol, Dansk, Norsk, Svensk, Nederlands, , Polski, Magyar, Portugus do Brasil, Portugus Europeu, Trke, esk, , , ,
Environment and Packaging
- Environment
- RoHS Compliant
- Package Content
- Main Unit X 1
- Installation Disc X 1
- Welcome Note X 1
- Assembling Kit X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 1
- Optional Accessories
- Remote
- Camera License Pack
- Disk Holder : Type C
- VS80
(Updated : 2012/04/12)
