All stock codes associated to this product
NF1ADV, NWNCNF1ADV, NWNC-NF1ADV
NETCOMM FIBRE SERIES
WiFi Data and VoIP Gateway
KEY FEATURES
- ADSL + IAD
- 1 x 10/100/1000 Gigabit WAN port
- 4 x 10/100 LAN ports
- Wireless N access point - speeds of up to 300Mbps1
- 2 x FXS ports for connection to a VoIP service – landline replacement
- 1 x FXO port for landline backup
- DECT CAT-iQ 2.0 base station with DECT association button
- 2 x USB host ports supporting mass storage file sharing and print serving
- WPS button for simple setup of your wireless network
- Multiple power saving features – time of day LED dimming, WiFi power save features, green/power down functions

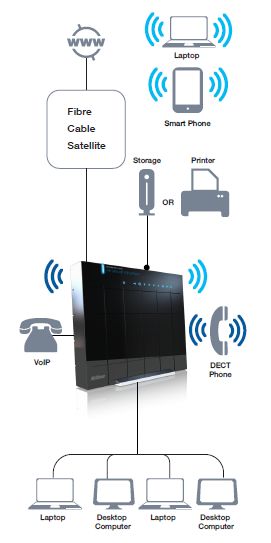

With the high speed data rates opening up new possibilities to what can be achieved over an Internet connection, coupled with the constantly improving technology that is included in our home appliances, the Internet is no longer about just emails and web browsing. A NetComm fibre to the home router will become the hub of your home – a device that controls more than just your emails and web browsing, but is central to a number of your social, communication, gaming, entertainment and research activities – to name just a few.
The NF1ADV will allow you to access and share your Internet connection at blistering speeds with the built in Gigabit WAN port and the Wireless N access point. With an FXS VoIP port included, your phone line can be made redundant with your phone calls made using a VoIP service, leading to reduced phone bills. With 2 x USB host ports, all users on the network can access any media and files that are on a connected USB hard drive, or can share the capabilities of a connected printer.
The NF1ADV also features a built in DECT base station allowing you to call out using a portable DECT handset – your phone line will not be missed.
The NF1ADV also includes an in-built ADSL modem, meaning that this product is still able to connect directly to an ADSL service. ADSL is still in use so users can future proof themselves with a device that can be used with a Fibre connection when it becomes available in the future.
1 Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g and 802.11n Draft 2.0 specifications. Actual wireless speed and coverage are dependent on network and environmental conditions included but not limited to volume of network traffic, building materials and construction/layout
TECHNICAL SPECIFICATIONS
PACKAGE INCLUDES
- NetComm WiFi Data and VoIP Gateway
- Power Adapter
- Printed Quick Start Guide
- 1 x Ethernet Cable (RJ-45)
- 1 x Phone Cable (RJ-11)
- Wireless Security Card
- Warranty Card
ENVIRONMENTAL AND PHYSICAL
- Operating temperature: 0-40C, Humidity: 10%-90% non-condensing
- DC Input Voltage 12V/2A
DEVICE INTERFACE
- 4 x 10/100Mbps LAN port
- 1 x 10/100/1000Mbps WAN port
- 1 x FXO port
- 2 x FXS port
- 2x USB 2.0 port – for USB storage and printer
- 1 x DECT module
- 1 x WPS button
- 1 xWiFi on/off button
- 1 x Reset button
- 2 x 2 internal WiFi antenna
- 2 x internal DECT antenna
- LED – Power/ LAN1~4/ WAN/ WLAN/ WPS/ Phone1/Phone2/ LINE/ DSL/ Internet/ DECT/ Page Register
Power Jack
- ADSL2+
- ITU-T G.992.5,
- ITU-T G.992.3,
- ITU-T G.992.1
- ITU-T G.992.2,
- ANSI T1.413 Issue 2
- G.992.3 (ADSL2)
- G.992.5 (ADSL2+) AnnexM
ETHERNET WAN
- PPPoE, DHCP client, Static IP, PPTP, L2TP
- Dual stack IPv6
WIRELESS
- IEEE 802.11n. Backwards compatible with IEEE 802.11b/g
- SSID broadcast or in stealth mode
- WMM
- WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
- WPS button (WiFi Protected Setup)
VOIP
- PROTOCOL
- SIP (FRC3261) VOICE COMPRESSION
- G.711u , G.711a, G.729a
CALL FUNCTION
- On/Off Hook caller ID (ETSI based)
- Lifeline
- SDP (FRC2327)
- Echo cancellation (G.168)
- Silence suppression
DECT
- CAT-iQ 2.0 base station
- Easy pairing registration
- Register up to 4 DECT handsets
QOS
- L3 Policy –based QoS
- IPQoS
- DSCP/TOS
SECURITY
- Authentication protocols (PAP/CHAP)
- VPN PPTP/L2TP/IPSec Pass-through
- Stateful packet inspection
- Packet filtering
- Denial of service protection
- Traffic conditioning
- WFQ based bandwidth
ROUTING
- IPv6 Static route
- Dynamic Route (RIP v1/v2)
- NAT/PAT,
- DHCP Client/Server/Relay
- DNS
- ARP
- IGMP Proxy
ADMINISTRATION
- SNMP
- UPnP
- TR-069/ TR-098/ TR-111
- Syslog
- Web-based UI
- Remote Login
- Backup/Restore Settings
COMPLIANCE
Networking
