- device includes modem router and 3G sharing functions
- USB applications: support for printers and USB 3G dongles
- steps to configure ADSL ISP settings
- independent SSIDs
- dBi powerful detachable antennas
Overview
The ASUS DSL-N12U B1 ADSL wireless modem features a stylish design and true multi-functionality. It integrates three different user needs in one device : wireless router, ADSL modem router, and 3G sharing. With the help of Ethernet WAN, the DSL-N12U B1 can easily turn into a standalone router with only few clicks. Intant 3G sharing is also provided by simply plugging in a 3G dongle and easily sharing 3G connections via Wi-Fi. The DSL-N12U B1 also uses an exclusive ASUS user-friendly interface, making it easy to use. Just open the browser and the Quick Installation Setup will automatically guide you to complete installation in a few steps. Equipped with a 5dBi high gain antennas, the DSL-N12U B1 provides larger coverage area for wireless networking. It also features multiple SSIDs, providing up to four independent wireless networks. When connecting to an all-in-one printer via USB port, users are able to simultaneously share printing and scanning functions wirelessly.

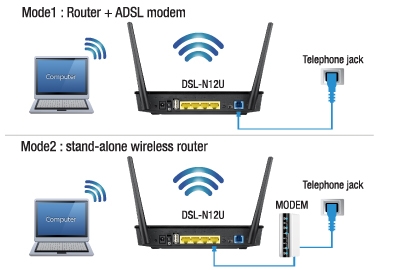

Ethernet WAN
Ethernet WAN enables DSL-N12U B1 to work in two different scenarios. DSL-N12U B1 allows user to use it as an ADSL modem router or a stand-alone wireless router.

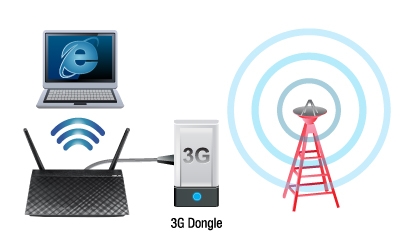

Plug-in 3G sharing
In 3G sharing mode, you can turn the DSL-N12U B1 into a 3G wireless router with a simple dongle plug-in. You can then easily share 3G wireless with all compatible devices on the network.

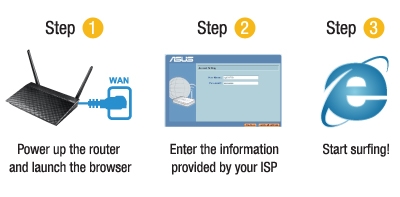

QIS(Quick Internet Setup)
Just simply open your browser, the QIS will guide you to quickly connect to the internet!

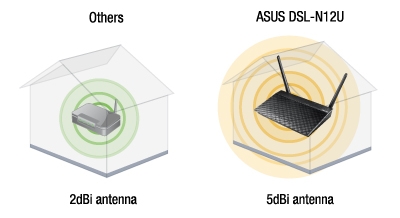

Powerful and Wide Coverage
Featuring the 5dBi high-gain antennas, the DSL-N12U B1 provides a boosted signal to ensure extended wireless networking range.

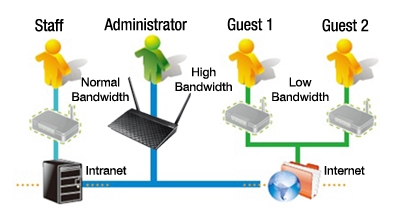

4-Network-in-1 (4 Multiple SSIDs)
Provides up to four wireless networking grades with dynamic bandwidth management. For example, high bandwidth and full access for managers, mid-range settings and privacy controls for staff, and basic internet access for guests. This flexibility makes it the best choice for SOHO wireless networking.

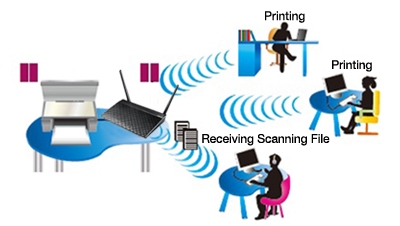

Ez All-in-One Printer Server Application
Sharing All-in-One Printer functions wirelessly for multiple users simultaneously without buying another printer server.
Specifications
| Network Standard |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4 |
| Wi-Fi Data Rate |
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps |
| xDSL Data Rate |
ANSI T1.413 Issue 2,
ITU-T G.992.1 Annex A (G.dmt),
ITU-T G.992.2 (G.lite),
ITU-T G.994.1 (G.hs),
ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.5 Annex A/M
ADSL 2/2+ 24Mbps downstream |
| Antenna |
External 5 dBi antenna x 2 |
| LED Indicator |
Power, ADSL, Internet, WLAN, LAN x 4 |
| Button |
WPS Button, Reset Button, Power Button, Power Switch, Wireless on/off Switch |
| Ports |
1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN |
| USB Ports |
USB 2.0 x 1 |
| USB Applications |
Printer Server |
| Operating Frequency |
2.4GHz |
| Operation Channel |
11 for N. America
13 Europe (ETSI) |
| Memory |
8MB Flash/32MB SDRAM for Wi-Fi
1MB Flash/2MB SDRAM for ADSL |
| Receive Sensitivity |
-95dBm@1Mbps
-92dBm@11Mbps
-75dBm@54Mbps
[email protected]
-68dBm@150Mbps |
| Output Power |
b mode : 17 dBm
g mode : 15 dBm
n mode : 15 dBm |
| Security |
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support |
| Firewall & Access Control |
Built-in NAT and SPI firewall
Port, IP packet, URL, MAC filter |
| Management |
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function |
| Utilities |
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
Network Printer Setup |
| Power Adapter |
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/1.5 A
Power Consumption : 18 W Max. |
| Certificates |
CE, FCC, Wi-Fi |
| Dimensions |
19 x 12.3 x 3.5 cm (LxWxH) |
| Weight |
314 g (Device Only) |
| Environmental |
Operating Temperature: -10 C to 50 C (14 F to 122 F)
Storage Temperature: -40 to 60 C (-40 F to 140 F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing) |
| Package Content |
DSL-N12U Wireless ADSL Router
Power adapter
Support CD (user manual, utilities)
RJ45 cable
RJ11 cable
Quick Start Guide
Warranty Card
Splitter(varies with regions) |
| Manufacturer Warranty |
Localized to different countries |
